BU-41 Series

Catalog

CABLE ASSY, SMA PLUG-SMA PLUG, 1.2M ROHS COMPLIANT: YES

Part	Cable Type	Style	Color	Length	Length	Length	Cable Impedance	1st Contact Gender	Features	2nd Connector Mounting Type	1st Connector	Frequency - Max [Max]	2nd Contact Gender	1st Connector Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	2nd Connector	Overall Impedance	Connector Impedance	Plating	Material - Insulation	Insulation	Jaw Opening	Jaw Opening	Jaw Opening	Termination	Type	Quantity	Length [x]	Length [x]	Current Rating (Amps)	Material

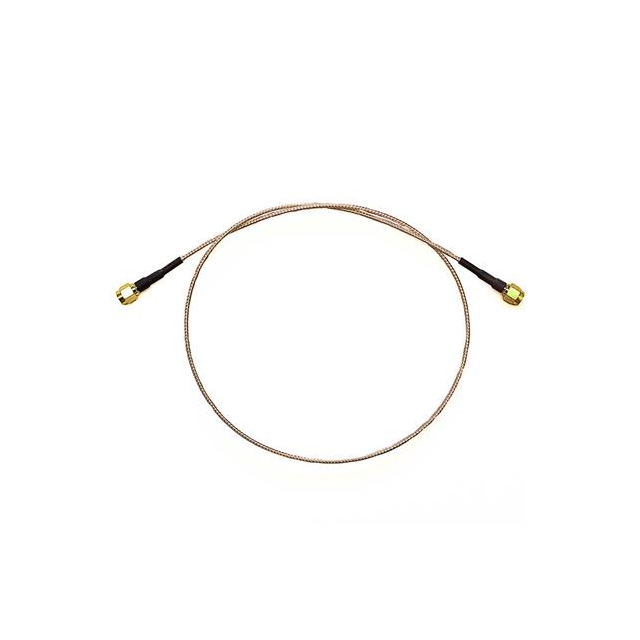

Mueller Electric Co BU-4150029048	RG-316	SMA to SMA	Copper	4 ft	1200 mm	48 in	50 Ohms	Male	Shielded	Free Hanging (In-Line)	SMA Plug	3 GHz	Male	Free Hanging (In-Line)	150 °C	-65 ░C	SMA Plug	50 Ohms	50 Ohms

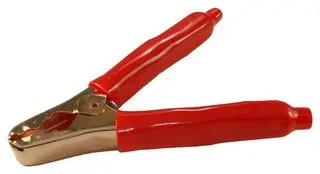

Mueller Electric Co BU-41A-2			Red																	Copper	Poly-Vinyl Chloride (PVC)	Insulated Sleeve	1.625 in	1 5/8	41.28mm	Crimp Screw	Battery Terminal Clamp	1	152.4 mm	6 "	200 A
Mueller Electric Co BU-4150029012	RG-316	SMA to SMA	Copper				50 Ohms	Male	Shielded	Free Hanging (In-Line)	SMA Plug	3 GHz	Male	Free Hanging (In-Line)	150 °C	-65 ░C	SMA Plug	50 Ohms	50 Ohms										304.8 mm	12 in
Mueller Electric Co BU-41A-0			Black																	Copper	Poly-Vinyl Chloride (PVC)	Insulated Sleeve	1.625 in	1 5/8	41.28mm	Crimp Screw	Battery Terminal Clamp	1	152.4 mm	6 "	200 A
Mueller Electric Co BU-4150028024	RG-316	BNC to SMA	Copper				50 Ohms	Male	Shielded	Free Hanging (In-Line)	BNC Plug	3 GHz	Male	Free Hanging (In-Line)	150 °C	-65 ░C	SMA Plug	50 Ohms	50 Ohms										609.6 mm	24 in
Mueller Electric Co BU-4150029024	RG-316	SMA to SMA	Copper				50 Ohms	Male	Shielded	Free Hanging (In-Line)	SMA Plug	3 GHz	Male	Free Hanging (In-Line)	150 °C	-65 ░C	SMA Plug	50 Ohms	50 Ohms										609.6 mm	24 in
Mueller Electric Co BU-41CPN			Natural																			Non-Insulated	1.625 in	1 5/8	41.28mm	Crimp or Solder	Battery Terminal Clamp	1	152.4 mm	6 "	400 A	Copper

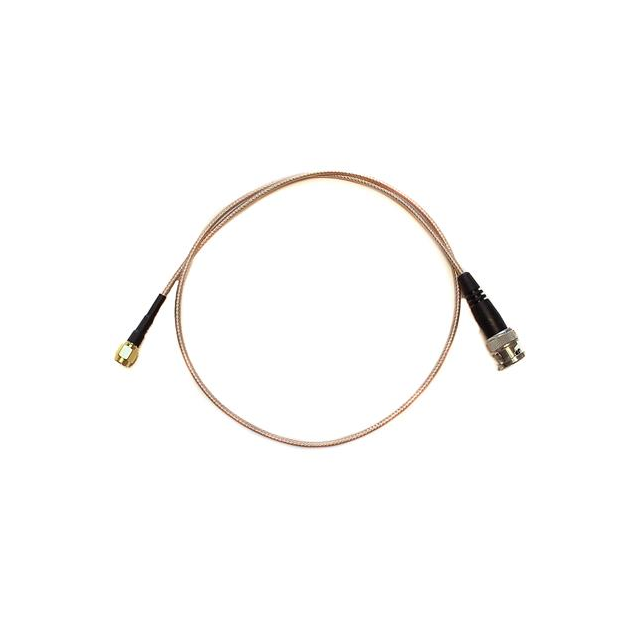

Mueller Electric Co BU-4150028006	RG-316	BNC to SMA	Copper				50 Ohms	Male	Shielded	Free Hanging (In-Line)	BNC Plug	3 GHz	Male	Free Hanging (In-Line)	150 °C	-65 ░C	SMA Plug	50 Ohms	50 Ohms										152.4 mm	6 "
Mueller Electric Co BU-4150028048	RG-316	BNC to SMA	Copper	4 ft	1200 mm	48 in	50 Ohms	Male	Shielded	Free Hanging (In-Line)	BNC Plug	3 GHz	Male	Free Hanging (In-Line)	150 °C	-65 ░C	SMA Plug	50 Ohms	50 Ohms
Mueller Electric Co BU-4150028012	RG-316	BNC to SMA	Copper				50 Ohms	Male	Shielded	Free Hanging (In-Line)	BNC Plug	3 GHz	Male	Free Hanging (In-Line)	150 °C	-65 ░C	SMA Plug	50 Ohms	50 Ohms										304.8 mm	12 in
