WR9QG2667 Series

Catalog

AC/DC WALL MOUNT ADAPTER 15V 40W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	No Load Power Consumption	Polarization	Current - Output (Max) [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Standard Number	Input Connector	Approval Agency	Voltage - Output	Region Utilized	Form	Output Connector [diameter]	Output Connector	Output Connector [x]	Cord Length	Cord Length	Efficiency

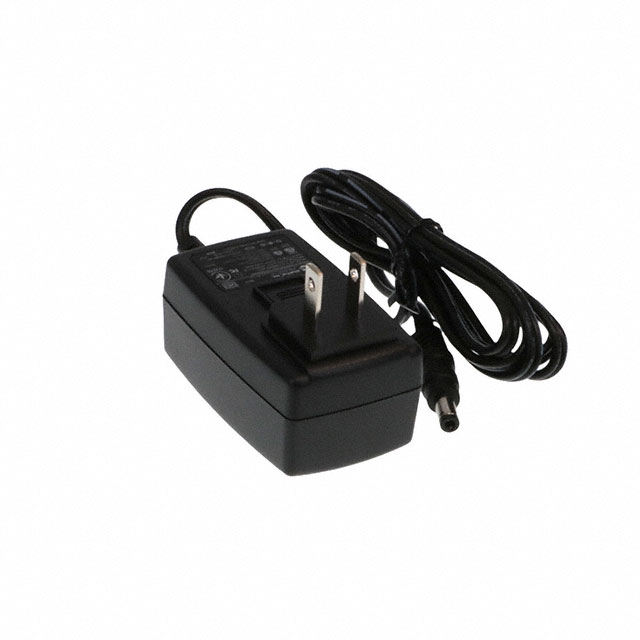

GlobTek, Inc. WR9QG2667LCPNNAR6B	1.71 "	2.91 in	74 mm	35.3 mm	1.39 in	43.5 mm	264 VAC	90 VAC	Multi-Blade (Sold Separately)	75 mW	Positive Center	2.66 A	Household Appliances ITE (Commercial) Medical	40 °C	0 °C	40 W	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Multi-Blade (Sold Separately)	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UkrSEPRO UL VCCI	15 V	International	Wall Mount	2.5 mm 5.5 mm	Barrel Plug	11 mm	1.2 m	47.2 in	Level VI

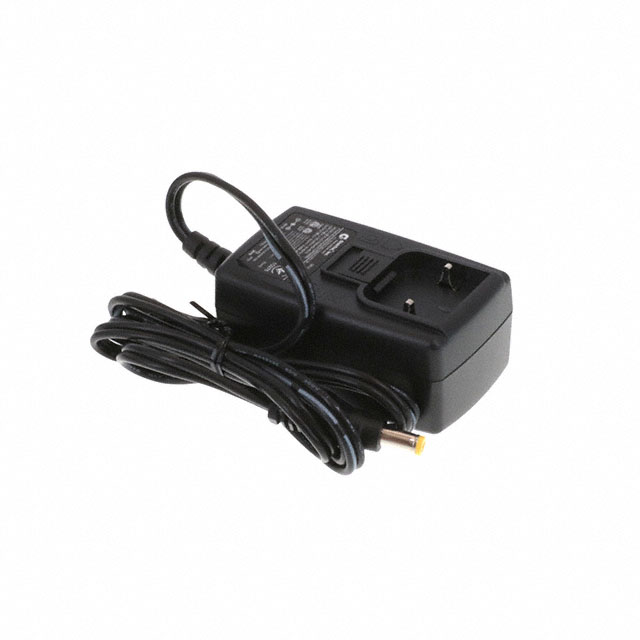

GlobTek, Inc. WR9QG2667CCPN(R6B)	1.71 "	2.91 in	74 mm	35.3 mm	1.39 in	43.5 mm	264 VAC	90 VAC	Multi-Blade (Sold Separately)	75 mW	Positive Center	2.66 A	Household Appliances ITE (Commercial) Medical	40 °C	0 °C	40 W	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Multi-Blade (Sold Separately)	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UkrSEPRO UL VCCI	15 V	International	Wall Mount	2.1 mm 5.5 mm	Barrel Plug	11 mm	1.2 m	47.2 in	Level VI
