NHD-5.0 Series

Catalog

5" TFT HDMI INTERFACE NO TOUCH

Part	Graphics Color	Touchscreen	Viewing Area [y]	Viewing Area [x]	Dot Pixels [x]	Dot Pixels [y]	Display Mode	Interface	Display Type	Controller Type	Diagonal Screen Size	Diagonal Screen Size	Backlight	Interface

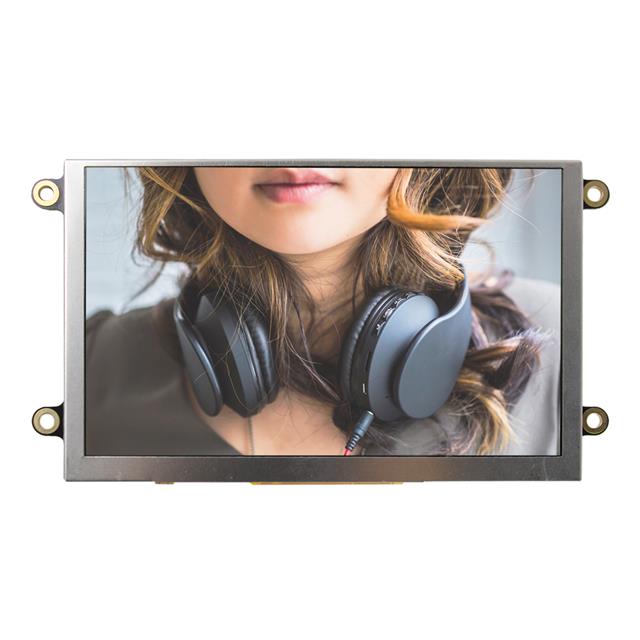

Newhaven Display Intl NHD-5.0-HDMI-N-RTXL	Blue Green Red	Non-Touch	67.9 mm	111.1 mm	800 pixels	480	Transmissive	HDMI	TFT - Color	TFP401A	127 mm	5 in	LED - White

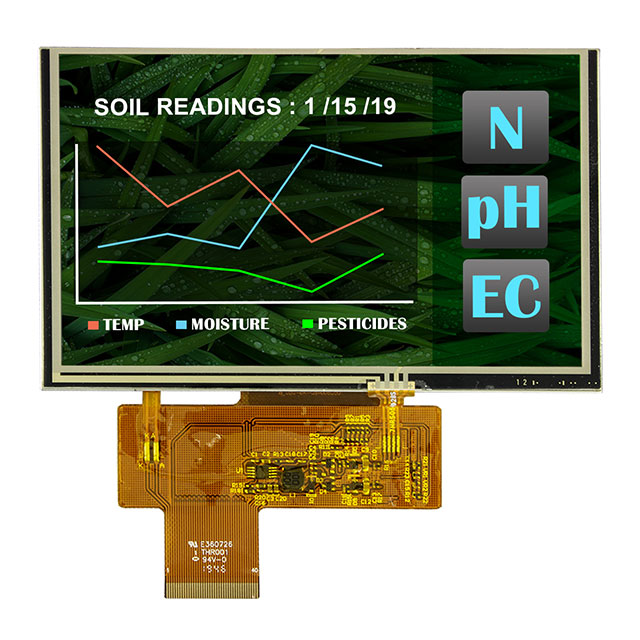

Newhaven Display Intl NHD-5.0-800480TF-ATXL#-T	Blue Green Red	Resistive	67.6 mm	110.08 mm	800 pixels	480 pixels	Transmissive	Parallel 24-Bit (RGB)	TFT - Color		127 mm	5 in	LED - White
Newhaven Display Intl NHD-5.0-800480TF-ATXI#	Blue Green Red		65.8 mm	109 mm	800 pixels	480 pixels	Transmissive	Parallel 24-Bit (RGB)	TFT - Color		127 mm	5 in	LED - White

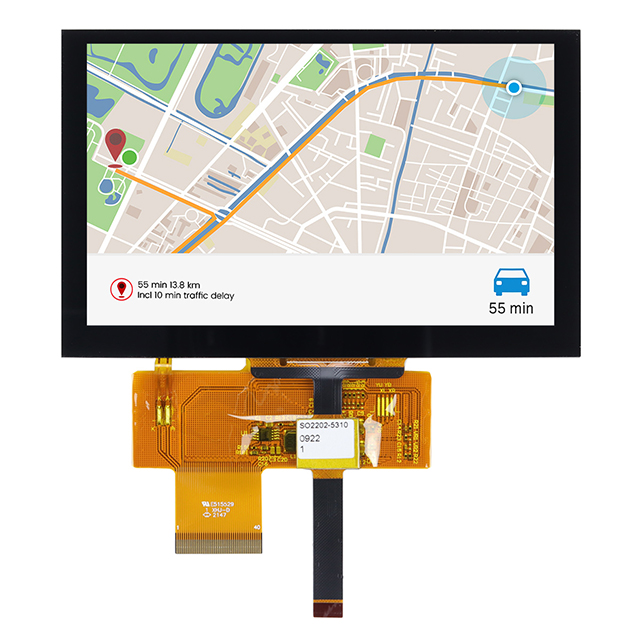

Newhaven Display Intl NHD-5.0-800480TF-ATXL#-CTP	Blue Green Red	Capacitive	65.8 mm	109 mm	800 pixels	480 pixels	Transmissive	Parallel 24-Bit (RGB)	TFT - Color	FT5310	127 mm	5 in	LED - White

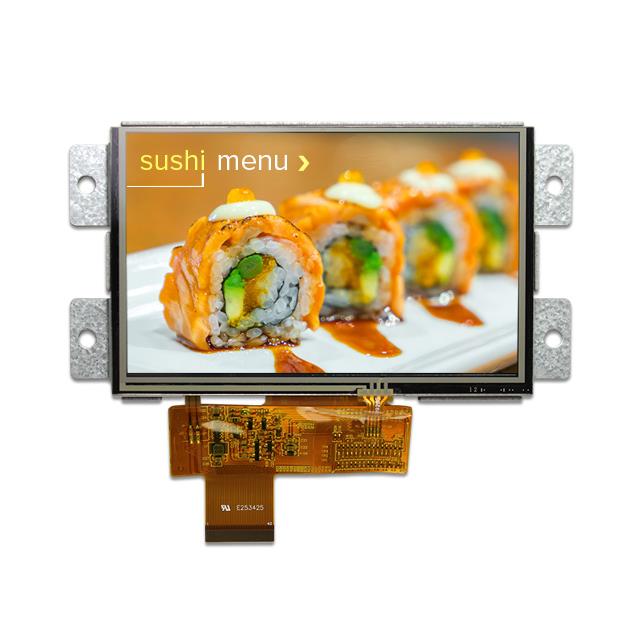

Newhaven Display Intl NHD-5.0-800480MB-ATXL-T	Blue Green Red	Resistive	64.8 mm	108 mm	800 pixels	480	Transmissive	Parallel 24-Bit (RGB)	TFT - Color		127 mm	5 in	LED - White

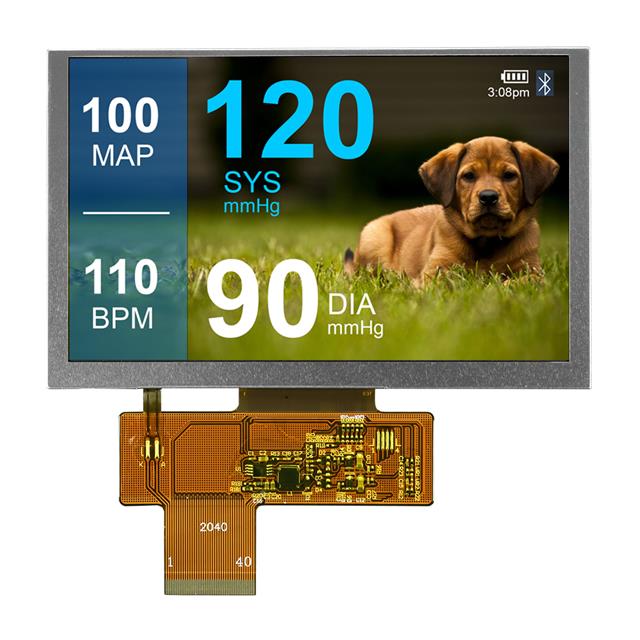

Newhaven Display Intl NHD-5.0-800480TF-ASXN	Blue Green Red		64.8 mm	108 mm	800 pixels	480	Transmissive	Parallel 24-Bit (RGB)	TFT - Color	OTD7001A	127 mm	5 in	LED - White

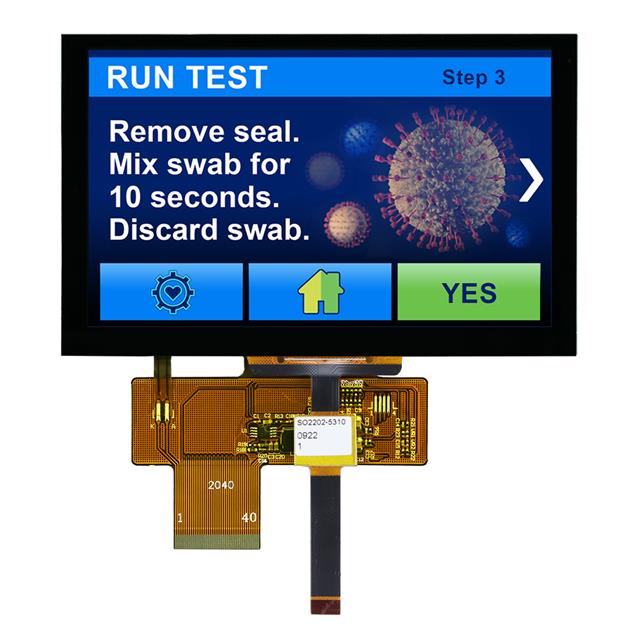

Newhaven Display Intl NHD-5.0-800480TF-ASXN-CTP	Blue Green Red	Capacitive	64.8 mm	108 mm	800 pixels	480	Transmissive	Parallel 24-Bit (RGB)	TFT - Color	OTD7001A	127 mm	5 in	LED - White

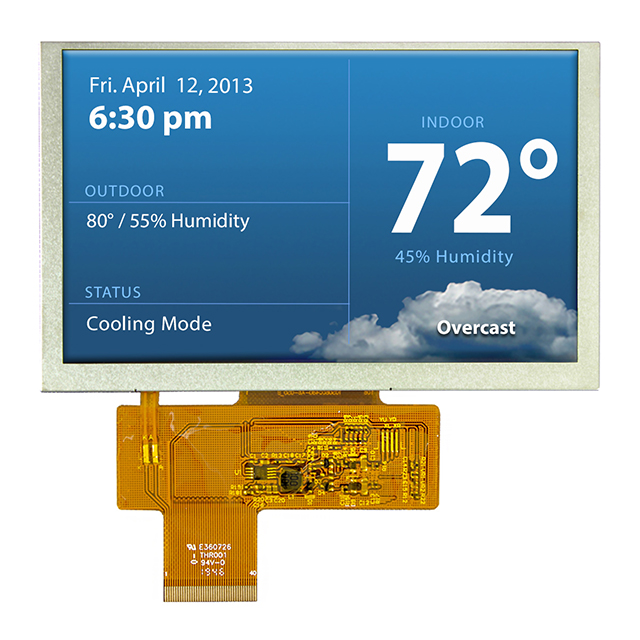

Newhaven Display Intl NHD-5.0-800480TF-ATXL#	Blue Green Red		65.8 mm	109 mm	800 pixels	480 pixels	Transmissive	Parallel 24-Bit (RGB)	TFT - Color		127 mm	5 in	LED - White

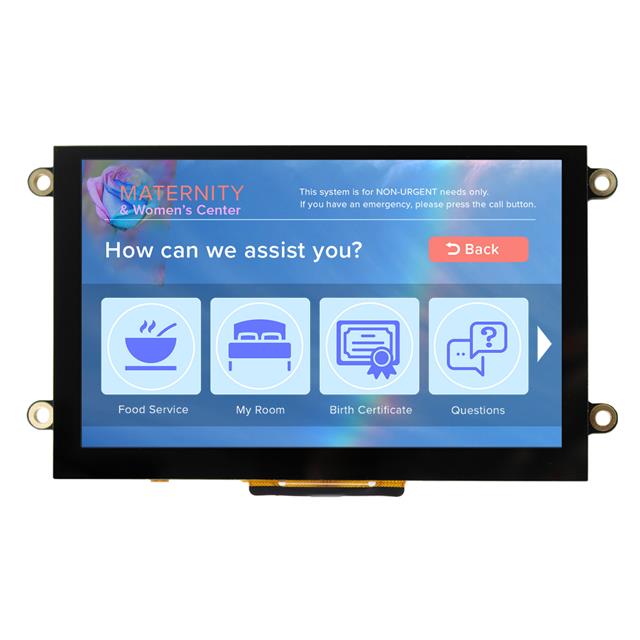

Newhaven Display Intl NHD-5.0-HDMI-N-RTXL-RTU	Blue Green Red	Resistive	67.6 mm	110.08 mm	800 pixels	480	Transmissive	HDMI USB	TFT - Color	TFP401A	127 mm	5 in	LED - White

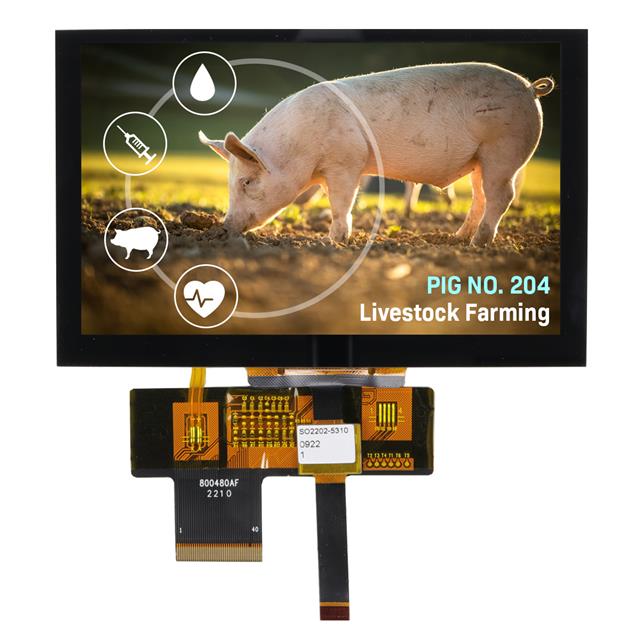

Newhaven Display Intl NHD-5.0-800480AF-ASXP-CTP	Blue Green Red	Capacitive	65.8 mm	109 mm	800 pixels	480 pixels	Transmissive	I2C Parallel	IPS (In-Plane Switching) TFT - Color	ST7262	127 mm	5 in	LED - White	24 Bit
