6304UE Series
Manufacturer: Belden Inc.
Beta
⌘K

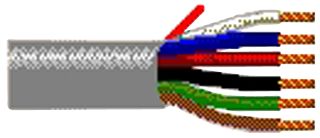

CABLE 6COND 18AWG NATURAL
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Ratings | Length | Length | Usage | Jacket Color | Jacket (Insulation) Material | Cable Type | Wire Gauge | Conductor Insulation | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 75 ░C | 0 °C | 300 VDC | 0.381 mm | 0.015 in | UL Style CMP | 152.4 m | 500 ft | Security Sound | Natural | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Multi-Conductor | 18 AWG | Low Smoke Poly-Vinyl Chloride (LSPVC) | 6 | 26 AWG | 7 | Copper Bare | Rip Cord |
Belden Inc. | 75 ░C | 0 °C | 300 VDC | 0.381 mm | 0.015 in | UL Style CMP | 152.4 m | 500 ft | Security Sound | Natural | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Multi-Conductor | 18 AWG | Low Smoke Poly-Vinyl Chloride (LSPVC) | 6 | 26 AWG | 7 | Copper Bare | Rip Cord |
 Belden Inc. | 75 ░C | 0 °C | 300 VDC | 0.381 mm | 0.015 in | UL Style CMP | 304.8 m | 1000 ft | Security Sound | Pink | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Multi-Conductor | 18 AWG | Low Smoke Poly-Vinyl Chloride (LSPVC) | 6 | 26 AWG | 7 | Copper Bare | Rip Cord |
