1175L Series
Manufacturer: ALPHA WIRE
Beta
⌘K

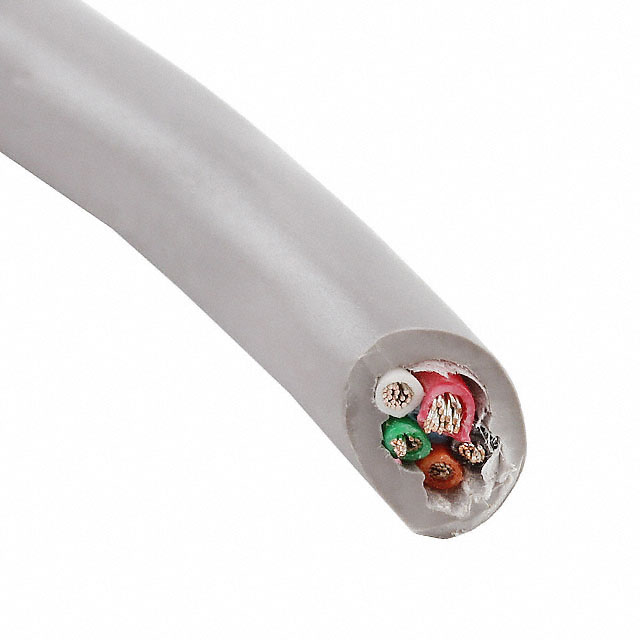

CABLE 5COND 22AWG SLATE 1000'
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Cable Type | Length | Length | Conductor Material | Usage | Conductor Insulation | Voltage | Jacket (Insulation) Material | Jacket Color | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 5.11 mm | 0.201 in | 22 AWG | Multi-Conductor | 304.8 m | 1000 ft | Copper Tinned | Communication Control | Low Smoke Zero Halogen (LSZH) | 300 VDC | Low Smoke Zero Halogen (LSZH) | Slate | 5 | 0.635 mm | 0.025 in | 30 AWG | 7 |
ALPHA WIRE | 5.11 mm | 0.201 in | 22 AWG | Multi-Conductor | 152.4 m | 500 ft | Copper Tinned | Communication Control | Low Smoke Zero Halogen (LSZH) | 300 VDC | Low Smoke Zero Halogen (LSZH) | Slate | 5 | 0.635 mm | 0.025 in | 30 AWG | 7 |
