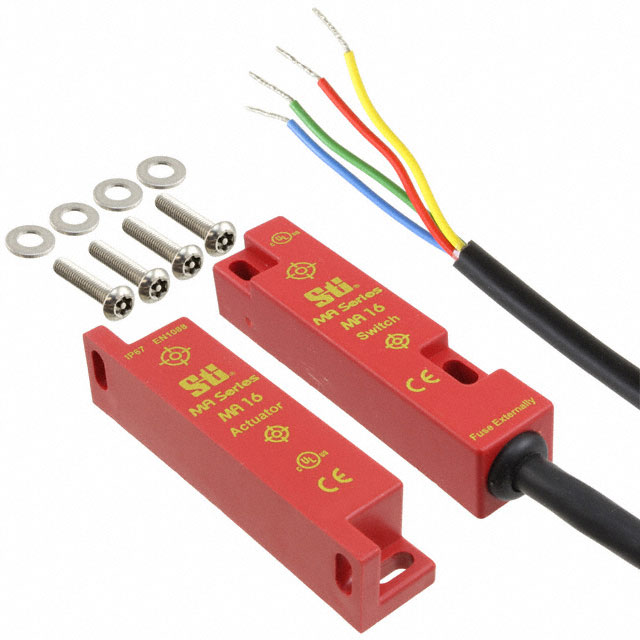

MA16AP Series

Catalog

INTERLOCK MAGNETIC DPST

Part	Termination Style	Current Rating (Amps)	Circuit	Must Operate [Min]	Must Operate [Max]	Actuator Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Type	Must Release [Max]	Must Release [Min]	Voltage Rating	Approval Agency	Ingress Protection
Omron Electronics Inc-EMC Div MA16AP11C6	Cable Leads	2 A	DPST-NO/NC	7 mm	12 mm	Non-Contact	55 °C	-10 °C	Magnetic	25 mm	12 mm	230 VAC	CE cULus	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div MA16AP21C6	Cable Leads	2 A	3PST-2NC/1NO	7 mm	12 mm	Non-Contact	55 °C	-10 °C	Magnetic	25 mm	12 mm	230 VAC	CE cULus	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div MA16AP11C3	Cable Leads	2 A	DPST-NO/NC	7 mm	12 mm	Non-Contact	55 °C	-10 °C	Magnetic	25 mm	12 mm	230 VAC	CE cULus	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div MA16AP10C6	Cable Leads	2 A	SPST-NC	7 mm	12 mm	Non-Contact	55 °C	-10 °C	Magnetic	25 mm	12 mm	230 VAC	CE cULus	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div MA16AP20C3	Cable Leads	2 A	DPST-NC	7 mm	12 mm	Non-Contact	55 °C	-10 °C	Magnetic	25 mm	12 mm	230 VAC	CE cULus	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div MA16AP21C3	Cable Leads	2 A	3PST-2NC/1NO	7 mm	12 mm	Non-Contact	55 °C	-10 °C	Magnetic	25 mm	12 mm	230 VAC	CE cULus	IP67 - Dust Tight Waterproof
