4604 Series
Manufacturer: Bourns Inc.
Beta
⌘K

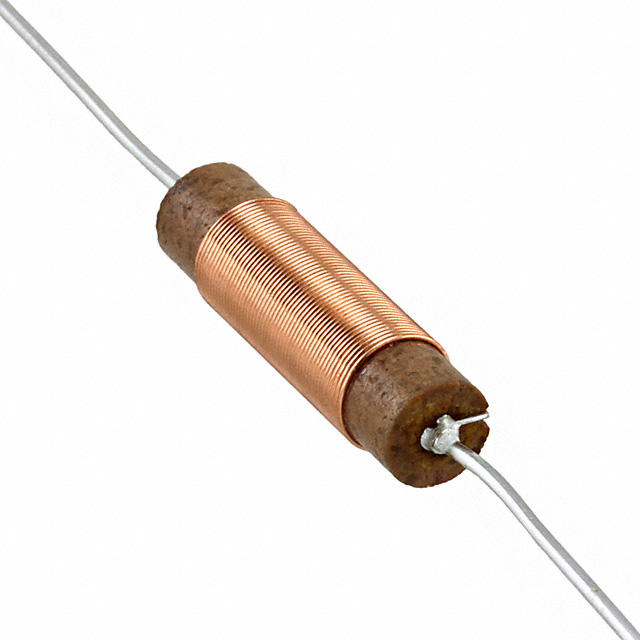

FIXED IND 1.5UH 1.8A 93 MOHM TH
| Part | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Tolerance | Type | Material - Core | Frequency - Self Resonant | DC Resistance (DCR) [Max] | Package / Case | Shielding | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Inductance Frequency - Test | Q @ Freq | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1.8 A | -55 C | 125 °C | Through Hole | 10 % | Wirewound | Phenolic | 149 MHz | 93 mOhm | Axial | Unshielded | 19.05 mm | 6.86 mm | 0.75 in | 0.27 in | 7.96 MHz | 7.96 MHz 58 | 1.5 µH |
