172298 Series

Manufacturer: Molex

Catalog

ULTRA-FIT VERTICAL HEADER, 3.50MM PITCH, DUAL ROW, 8 CIRCUITS, WITH KINKED PINS, 0.76ΜM GOLD (AU) PLATING, NATURAL, GLOW-WIRE CAPABLE

Part	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Termination	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Style	Insulation Color	Contact Shape	Insulation Material	Shrouding	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Contact Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish - Mating	Connector Type	Features	Insulation Height	Insulation Height	Voltage Rating	Applications	Mated Stacking Heights	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Molex 1722982308	Copper Alloy	0.181 in	4.6 mm	Through Hole	Kinked Pin Solder	Tin	120 °C	-40 C	UL94 V-0	Board to Cable/Wire	Natural	Square	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	2	0.138 in	3.5 mm	0.126 "	3.2 mm	Latch Holder	Male Pin	8	0.76 Ám	30 Áin	All	Gold	Header	Board Guide	0.465 in	11.8 mm	400 V

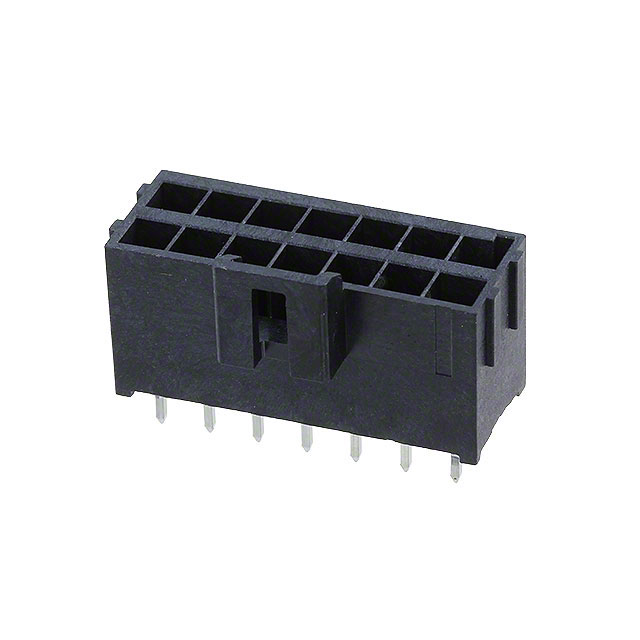

Molex 1722981214	Copper Alloy	0.181 in	4.6 mm	Through Hole	Kinked Pin Solder	Tin	120 °C	-40 C	UL94 V-0	Board to Cable/Wire	Black	Square	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	2	0.138 in	3.5 mm	0.126 "	3.2 mm	Latch Holder	Male Pin	14	0.38 µm	15 µin	All	Gold	Header	Board Guide	0.465 in	11.8 mm	400 V	Automotive General Purpose Industrial Lighting Medical Military Telecommunications	26.99 mm	1.52 µm	60 µin

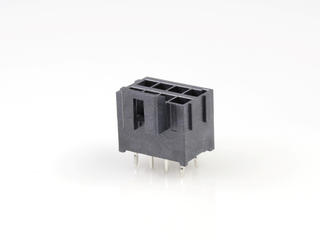

Molex 1722981308	Copper Alloy	0.181 in	4.6 mm	Through Hole	Kinked Pin Solder	Tin	120 °C	-40 C	UL94 V-0	Board to Cable/Wire	Black	Square	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	2	0.138 in	3.5 mm	0.126 "	3.2 mm	Latch Holder	Male Pin	8	0.76 Ám	30 Áin	All	Gold	Header	Board Guide	0.465 in	11.8 mm	400 V	Automotive General Purpose Industrial Lighting Medical Military Telecommunications	26.99 mm	1.52 µm	60 µin

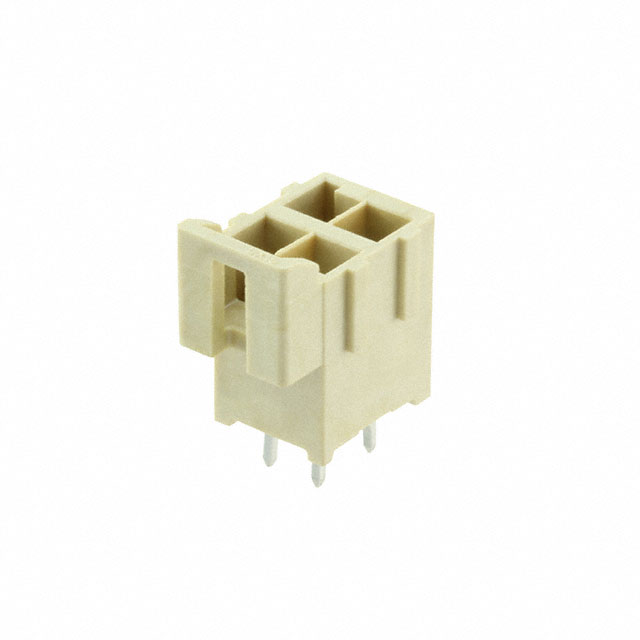

Molex 1722982304	Copper Alloy	0.181 in	4.6 mm	Through Hole	Kinked Pin Solder	Tin	120 °C	-40 C	UL94 V-0	Board to Cable/Wire	Natural	Square	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	2	0.138 in	3.5 mm	0.126 "	3.2 mm	Latch Holder	Male Pin	4	0.76 Ám	30 Áin	All	Gold	Header	Board Guide	0.465 in	11.8 mm	400 V	Automotive General Purpose Industrial Lighting Medical Military Telecommunications	26.99 mm	1.52 µm	60 µin

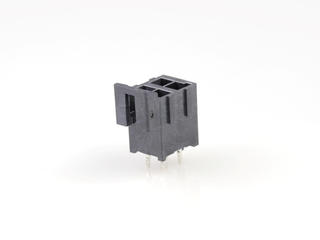

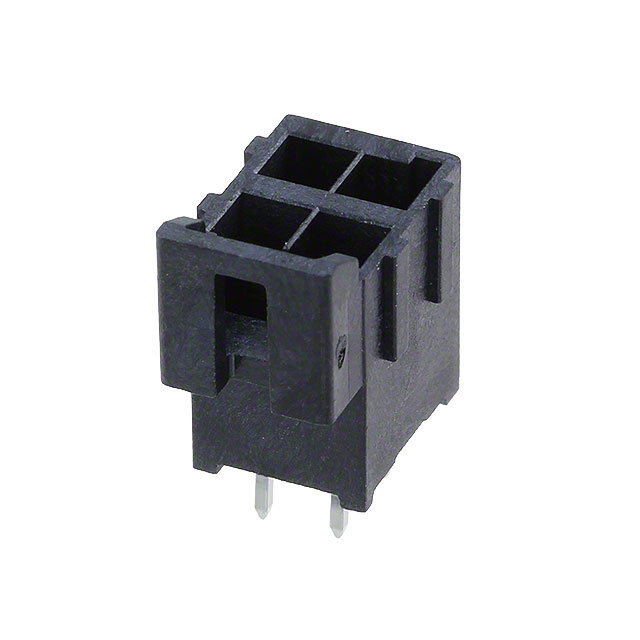

Molex 1722981304	Copper Alloy	0.181 in	4.6 mm	Through Hole	Kinked Pin Solder	Tin	120 °C	-40 C	UL94 V-0	Board to Cable/Wire	Black	Square	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	2	0.138 in	3.5 mm	0.126 "	3.2 mm	Latch Holder	Male Pin	4	0.76 Ám	30 Áin	All	Gold	Header	Board Guide	0.465 in	11.8 mm	400 V

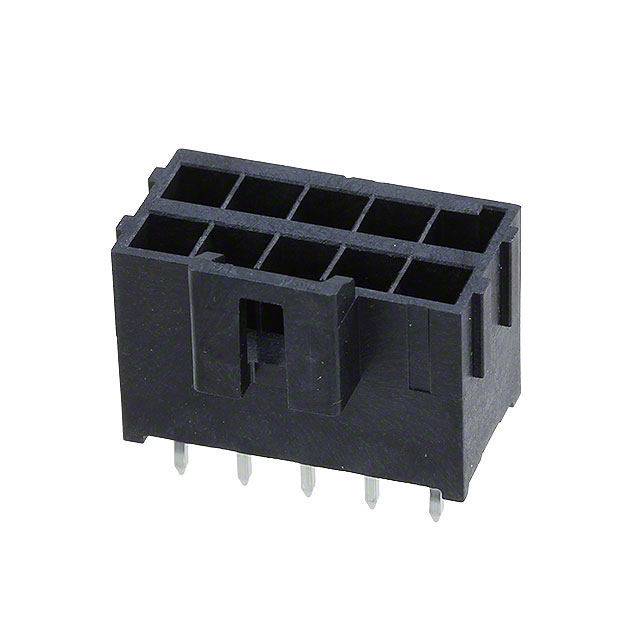

Molex 1722981210	Copper Alloy	0.181 in	4.6 mm	Through Hole	Kinked Pin Solder	Tin	120 °C	-40 C	UL94 V-0	Board to Cable/Wire	Black	Square	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	2	0.138 in	3.5 mm	0.126 "	3.2 mm	Latch Holder	Male Pin	10	0.38 µm	15 µin	All	Gold	Header	Board Guide	0.465 in	11.8 mm	400 V	Automotive General Purpose Industrial Lighting Medical Military Telecommunications	26.99 mm	1.52 µm	60 µin
Molex 1722982204	Copper Alloy	0.181 in	4.6 mm	Through Hole	Kinked Pin Solder	Tin	120 °C	-40 C	UL94 V-0	Board to Cable/Wire	Natural	Square	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	2	0.138 in	3.5 mm	0.126 "	3.2 mm	Latch Holder	Male Pin	4	0.38 µm	15 µin	All	Gold	Header	Board Guide	0.465 in	11.8 mm	400 V
Molex 1722982316	Copper Alloy	0.181 in	4.6 mm	Through Hole	Kinked Pin Solder	Tin	120 °C	-40 C	UL94 V-0	Board to Cable/Wire	Natural	Square	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	2	0.138 in	3.5 mm	0.126 "	3.2 mm	Latch Holder	Male Pin	16	0.76 Ám	30 Áin	All	Gold	Header	Board Guide	0.465 in	11.8 mm	400 V
Molex 1722981306	Copper Alloy	0.181 in	4.6 mm	Through Hole	Kinked Pin Solder	Tin	120 °C	-40 C	UL94 V-0	Board to Cable/Wire	Black	Square	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	2	0.138 in	3.5 mm	0.126 "	3.2 mm	Latch Holder	Male Pin	6	0.76 Ám	30 Áin	All	Gold	Header	Board Guide	0.465 in	11.8 mm	400 V

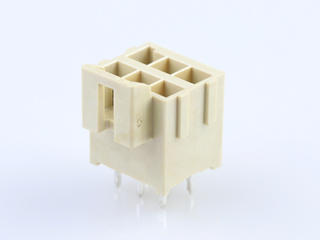

Molex 1722982106	Copper Alloy	0.181 in	4.6 mm	Through Hole	Kinked Pin Solder	Tin	105 ░C	-40 C	UL94 V-0	Board to Cable/Wire	Natural	Square	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	2	0.138 in	3.5 mm	0.126 "	3.2 mm	Latch Holder	Male Pin	6	1.52 Ám	60 µin	All		Header	Board Guide	0.465 in	11.8 mm	400 V	Automotive General Purpose Industrial Lighting Medical Military Telecommunications	26.99 mm	1.52 µm	60 µin
