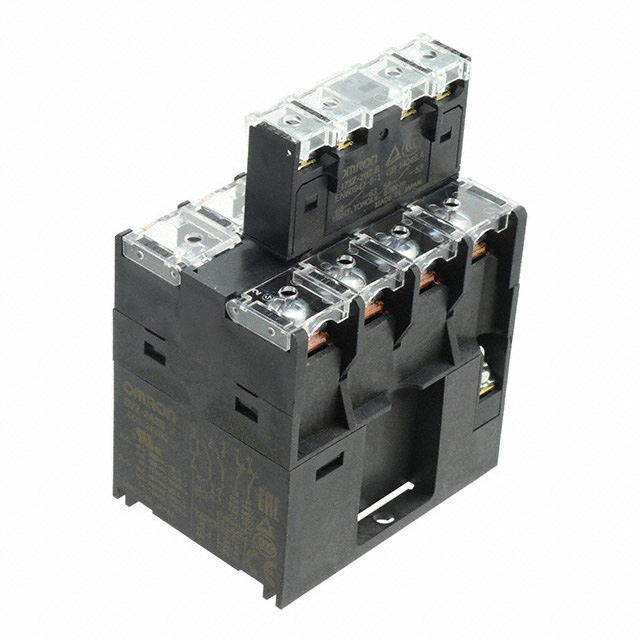

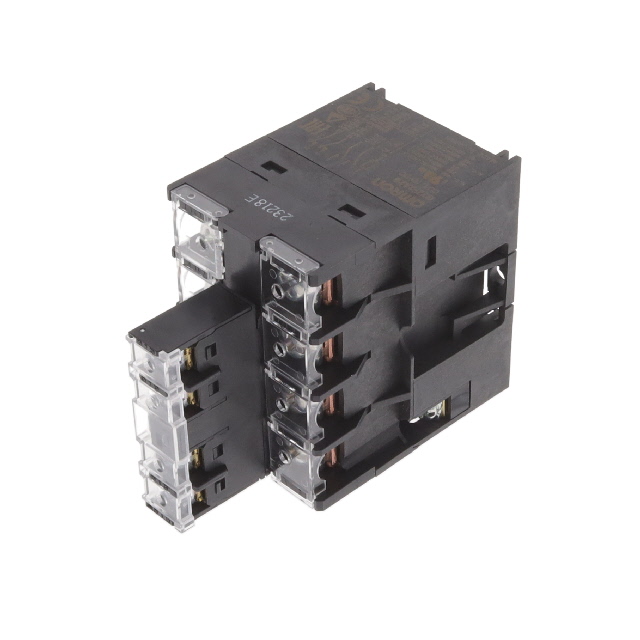

G7Z-2A2B Series

Catalog

RELAY GEN PURPOSE 4PST 40A 12V

Part	Mounting Type	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Must Operate Voltage	Coil Power	Release Time	Contact Rating (Current)	Switching Voltage	Contact Form	Operate Time	Coil Current	Contact Material	Must Release Voltage
Omron Electronics Inc-EMC Div G7Z-2A2B-20Z-R DC12V	Chassis Mount	12 VDC	-25 °C	60 °C	Screw Terminal	9 VDC	3.7 W	50 ms	40 A	480 VAC	4PST-2NO/2NC (2 Form A 2 Form B)	50 ms	308 mA	Silver Alloy	1.2 VDC
Omron Electronics Inc-EMC Div G7Z-2A2B-11Z-R-B DC24V	Chassis Mount	24 VDC	-25 °C	60 °C	Screw Terminal	18 VDC	3.7 W	50 ms	40 A	480 VAC	4PST-2NO/2NC (2 Form A 2 Form B)	50 ms	154 mA	Silver Alloy	2.4 VDC
Omron Electronics Inc-EMC Div G7Z-2A2B-20Z-R-B DC12V	Chassis Mount	12 VDC	-25 °C	60 °C	Screw Terminal	9 VDC	3.7 W	50 ms	40 A	480 VAC	4PST-2NO/2NC (2 Form A 2 Form B)	50 ms	308 mA	Silver Alloy	1.2 VDC
Omron Electronics Inc-EMC Div G7Z-2A2B-02Z-R DC12V	Chassis Mount	12 VDC	-25 °C	60 °C	Screw Terminal	9 VDC	3.7 W	50 ms	40 A	480 VAC	4PST-2NO/2NC (2 Form A 2 Form B)	50 ms	308 mA	Silver Alloy	1.2 VDC
Omron Electronics Inc-EMC Div G7Z-2A2B-20Z-R DC24V	Chassis Mount	24 VDC	-25 °C	60 °C	Screw Terminal	18 VDC	3.7 W	50 ms	40 A	480 VAC	4PST-2NO/2NC (2 Form A 2 Form B)	50 ms	154 mA	Silver Alloy	2.4 VDC
