B104 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN BARRIER STRIP 4CIRC 0.63"
| Part | Mounting Type | Material - Insulation | Material Flammability Rating | Terminal Screw Material | Operating Temperature | Color | Number of Wire Entries | Number of Circuits | Barrier Type | Number of Rows [custom] | Bottom Termination | Top Termination | Pitch | Pitch | Current Rating (Amps) | Voltage Rating | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Block Type | Mounting Feature | Type | Thread Size | Material | Ingress Protection | Size / Dimension [z] | Size / Dimension [z] | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Chassis Panel | Phenol Formaldehyde (Phenolic) Glass Filled | UL94 V-1 | Steel | 150 °C | Black | 8 | 4 | 2 Wall (Dual) | 2 | Closed | Screws with Captive Plate | 16 mm | 0.63 in | 65 A | 600 V | 14 AWG | 6 AWG | Barrier Block | ||||||||

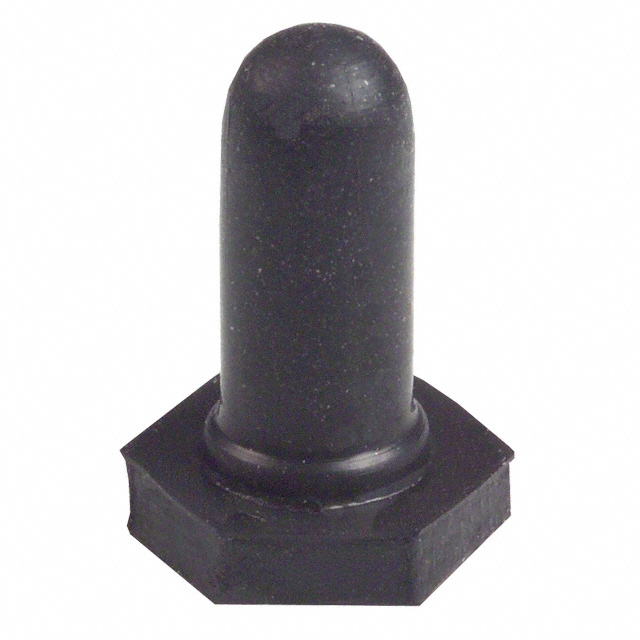

 TE Connectivity AMP Connectors | Black | Front of Panel | Full Boot Toggle | 10-48 UNS-2B | Neoprene | Splash Proof | 0.52 in | 13.21 mm | TT Series |
