GBC23S Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD R/A 23POS 2.54MM

Part	Contact Type	Insulation Material	Style	Fastening Type	Contact Material	Number of Positions	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Insulation Height	Insulation Height	Connector Type	Insulation Color	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Shrouding	Contact Shape	Contact Finish - Post	Termination	Contact Length - Mating

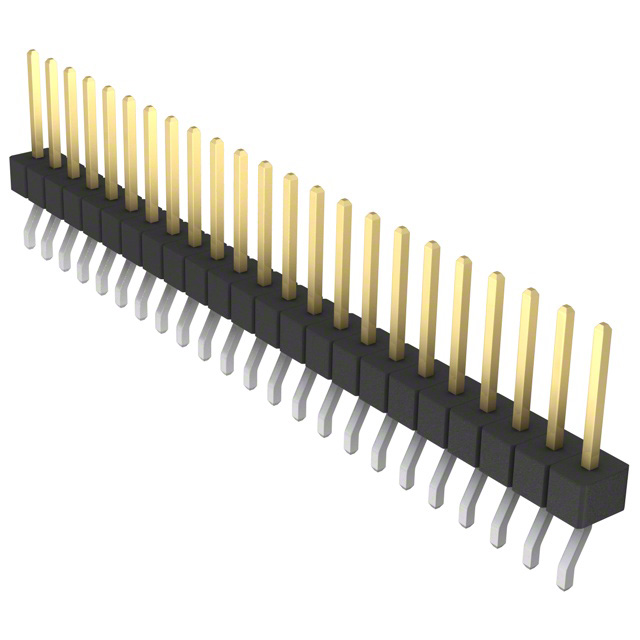

Sullins Connector Solutions GBC23SGSN-M89	Male Pin	Nylon 9T Polyamide (PA9T)	Board to Board Cable	Push-Pull	Phosphor Bronze	23	Surface Mount Right Angle	-65 ░C	150 °C	2.54 µm	100 µin	UL94 V-0	3.56 mm	0.14 in	Breakaway Header	Black	0.1 in	2.54 mm	3 A	Gold	0.318 "	8.08 mm	All	10 çin	0.25 çm	1	Unshrouded	Square	Tin	Solder
Sullins Connector Solutions GBC23SFBN-M30	Male Pin	Nylon 9T Polyamide (PA9T)	Board to Board Cable	Push-Pull	Phosphor Bronze	23	Surface Mount	-65 ░C	150 °C	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	Breakaway Header	Black	0.1 in	2.54 mm	3 A	Gold	0.318 "	8.08 mm	All	10 çin	0.25 çm	1	Unshrouded	Square	Tin	Solder
Sullins Connector Solutions GBC23SABN-M30	Male Pin	Nylon 9T Polyamide (PA9T)	Board to Board Cable	Push-Pull	Phosphor Bronze	23	Surface Mount	-65 ░C	150 °C	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	Breakaway Header	Black	0.1 in	2.54 mm	3 A	Gold	0.23 in		All	10 çin	0.25 çm	1	Unshrouded	Square	Tin	Solder	5.84 mm

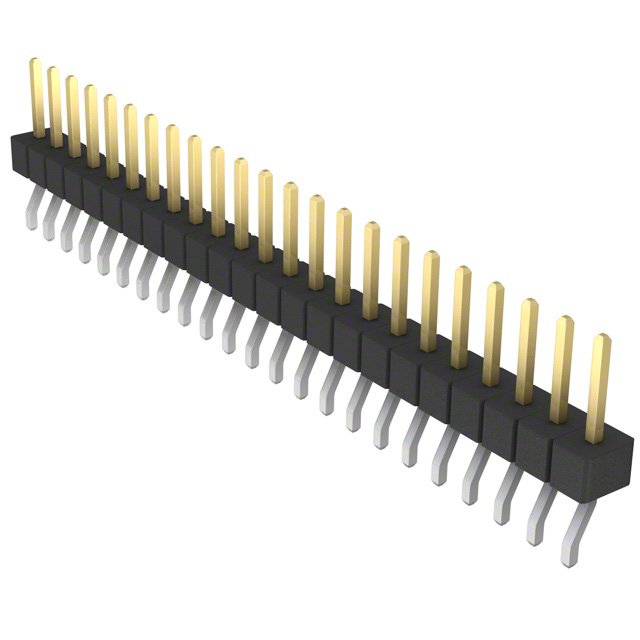

Sullins Connector Solutions GBC23SBSN-M89	Male Pin	Nylon 9T Polyamide (PA9T)	Board to Board Cable	Push-Pull	Phosphor Bronze	23	Surface Mount Right Angle	-65 ░C	150 °C	2.54 µm	100 µin	UL94 V-0	3.56 mm	0.14 in	Breakaway Header	Black	0.1 in	2.54 mm	3 A	Gold	0.23 in		All	10 çin	0.25 çm	1	Unshrouded	Square	Tin	Solder	5.84 mm
