UP3 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

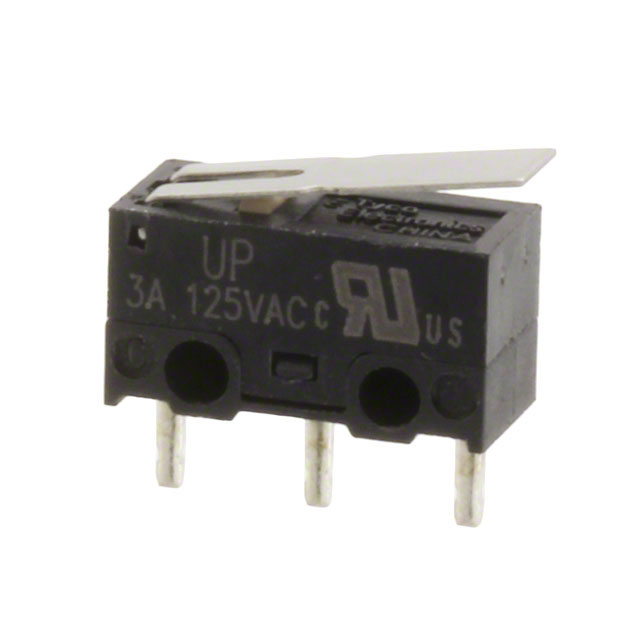

SWITCH SNAP ACTION SPDT 3A 125V

Part	Operating Position	Operating Position	Mounting Type	Circuit	Switch Function	Mechanical Life	Pretravel	Pretravel	Actuator Type	Release Force	Current Rating (Amps)	Overtravel [custom]	Overtravel [custom]	Voltage Rating - AC	Termination Style	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel	Operating Force	Voltage Rating - DC	Operating Position [x]	Operating Position [x]	Differential Travel
TE Connectivity AMP Connectors UP3DTBOLA04	0.272 in	6.9 mm	Right Angle Through Hole	SPDT	On-Mom	1000000 Cycles	0.6 mm	0.024 in	Round (Pin Plunger)	35 gf	3 A	0.008 in	0.2 mm	125 V	PC Pin	6000 Cycles	80 °C	-40 C	0.005 in	0.13 mm	150 gf
TE Connectivity AMP Connectors UP3DTAOLA04			Through Hole	SPDT	On-Mom				Round (Pin Plunger)		3 A			125 V	PC Pin
TE Connectivity AMP Connectors UP3DTCOLB04	0.272 in	6.9 mm	Right Angle Through Hole	SPDT	On-Mom	1000000 Cycles	0.6 mm	0.024 in	Round (Pin Plunger)	21 gf	3 A	0.008 in	0.2 mm	125 V	PC Pin	6000 Cycles	80 °C	-25 °C	0.005 in	0.13 mm	80 gf	125 VDC
TE Connectivity AMP Connectors UP3DTCOLA04	0.272 in	6.9 mm	Right Angle Through Hole	SPDT	On-Mom	1000000 Cycles	0.6 mm	0.024 in	Round (Pin Plunger)	35 gf	3 A	0.008 in	0.2 mm	125 V	PC Pin	6000 Cycles	80 °C	-25 °C	0.005 in	0.13 mm	150 gf	125 VDC
TE Connectivity AMP Connectors UP3DTANLA04			Through Hole	SPDT	On-Mom	1000000 Cycles	3 mm	0.12 in	Lever Straight	8 gf	3 A	0.025 in	0.6 mm	125 V	PC Pin	6000 Cycles	80 °C	-40 C	0.8 mm		50 gf		0.312 in	7.9 mm	0.031 in
TE Connectivity AMP Connectors UP3DTANLB04			Through Hole	SPDT	On-Mom	1000000 Cycles	3 mm	0.12 in	Lever Straight		3 A	0.025 in	0.6 mm	125 V	PC Pin	6000 Cycles	80 °C	-40 C	0.8 mm		30 gf		0.312 in	7.9 mm	0.031 in
TE Connectivity AMP Connectors UP3DTCNLB04			Right Angle Through Hole	SPDT	On-Mom	1000000 Cycles	3 mm	0.12 in	Lever Straight		3 A	0.025 in	0.6 mm	125 V	PC Pin	6000 Cycles	80 °C	-25 °C	0.8 mm		30 gf	125 VDC	0.312 in	7.9 mm	0.031 in
