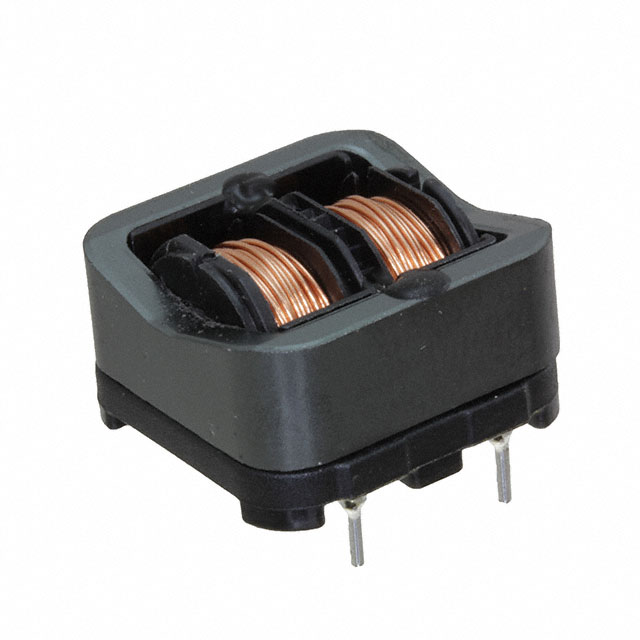

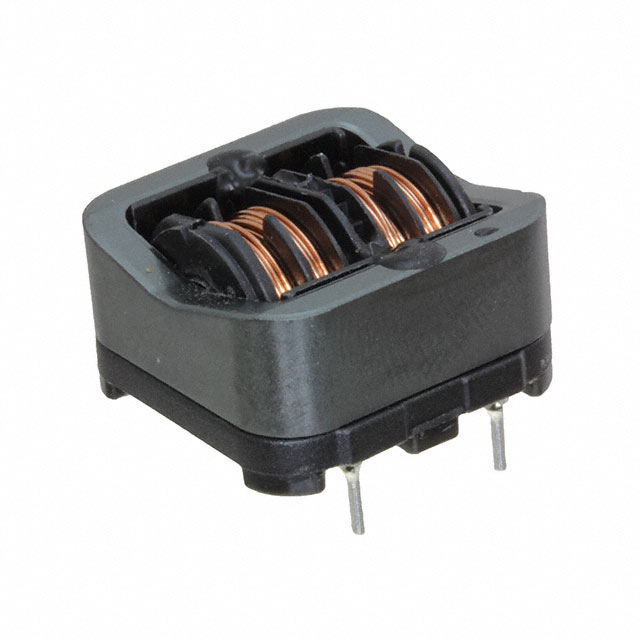

SSR21NH Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKES DUAL 23500UH 10KHZ 0.8A 0.42OHM DCR THRU-HOLE TRAY

Part	Voltage Rating - AC	Package / Case	Inductance @ Frequency	Height (Max) [z]	Height (Max) [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Mounting Type	DC Resistance (DCR) (Max)
KEMET SSR21NHS-08235	250 V	Vertical 4 PC Pin	23.5 mH	0.571 in	14.5 mm	0.906 in	23 mm	0.906 in	23 mm	120 °C	-25 °C	2	800 mA	420 mOhm	Through Hole
KEMET SSR21NHS-M25064	250 V	Vertical 4 PC Pin	6.4 mH	0.571 in	14.5 mm	0.906 in	23 mm	0.906 in	23 mm	120 °C	-25 °C	2	2.5 A		Through Hole	90 mOhm
KEMET SSR21NH-10250	250 V	Vertical 4 PC Pin	10 kHz 25 mH	0.571 in	14.5 mm	0.906 in	23 mm	0.906 in	23 mm	120 °C	-25 °C	2	1 A	360 mOhm	Through Hole
KEMET SSR21NH-12175	250 V	Vertical 4 PC Pin	17.5 mH	0.571 in	14.5 mm	0.906 in	23 mm	0.906 in	23 mm	120 °C	-25 °C	2	1.2 A	270 mOhm	Through Hole
KEMET SSR21NH-M08680	250 V	Vertical 4 PC Pin	10 kHz 68 mH	0.571 in	14.5 mm	0.906 in	23 mm	0.906 in	23 mm	120 °C	-25 °C	2	800 mA	800 mOhm	Through Hole
KEMET SSR21NH-M15220	250 V	Vertical 4 PC Pin	22 mH	0.571 in	14.5 mm	0.906 in	23 mm	0.906 in	23 mm	120 °C	-25 °C	2	1.5 A	260 mOhm	Through Hole
KEMET SSR21NHS-15082	250 V	Vertical 4 PC Pin	8.2 mH	0.571 in	14.5 mm	0.906 in	23 mm	0.906 in	23 mm	120 °C	-25 °C	2	1.5 A	130 mOhm	Through Hole
KEMET SSR21NHS-M10345	250 V	Vertical 4 PC Pin	34.5 mH	0.571 in	14.5 mm	0.906 in	23 mm	0.906 in	23 mm	120 °C	-25 °C	2	1 A		Through Hole	510 mOhm
KEMET SSR21NHS-M07680	250 V	Vertical 4 PC Pin	10 kHz 68 mH	0.571 in	14.5 mm	0.906 in	23 mm	0.906 in	23 mm	120 °C	-25 °C	2	700 mA		Through Hole	950 mOhm
KEMET SSR21NHS-041090	250 V	Vertical 4 PC Pin	10 kHz 109 mH	0.571 in	14.5 mm	0.906 in	23 mm	0.906 in	23 mm	120 °C	-25 °C	2	400 mA	1.8 Ohm	Through Hole
