ANT3216 Series

Catalog

ANTENNA CHIP 2.5/5G PIFA-C

Part	Applications	Number of Bands	RF Family/Standard	Height (Max) [z]	Height (Max) [z]	Antenna Type	Termination	Return Loss	Frequency (Center/Band)	Mounting Type	Power - Max [Max]	Frequency Group	Gain	Height (Max) [z]	Frequency Range [Min]	Frequency Range [Max]	Frequency Group [Max]	Frequency Group [Min]

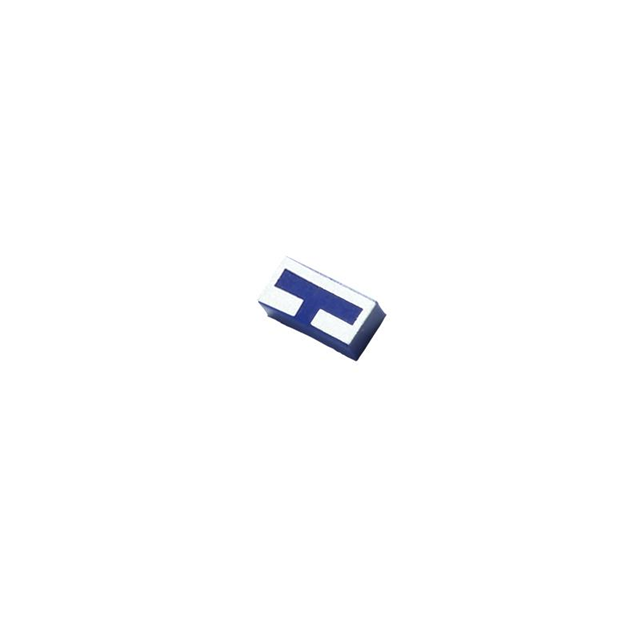

Pulse Electronics ANT3216LL11R2455A	4G 5G Bluetooth ISM Wi-Fi Zigbee™	2	802.15.4 Bluetooth Cellular General ISM WiFi	1.2 mm	0.047 in	Chip	Solder	6.5 dB	2.45 GHz 5.5 GHz	Surface Mount	1 W	SHF UHF	0.45 dBi 0.64 dBi

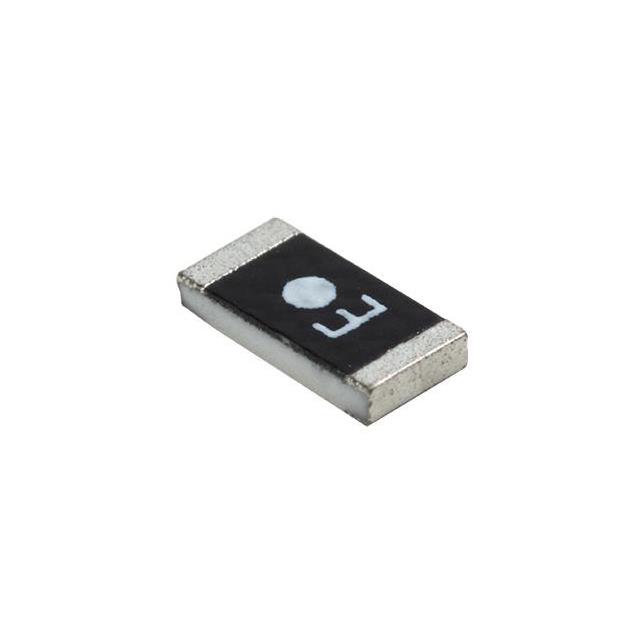

Pulse Electronics ANT3216A063R2455A	ISM Wi-Fi	2		0.55 mm		Chip	Solder	10 dB	2.45 GHz 5.5 GHz	Surface Mount	1 W	SHF UHF	1.59 dBi 2.23 dBi	0.022 in

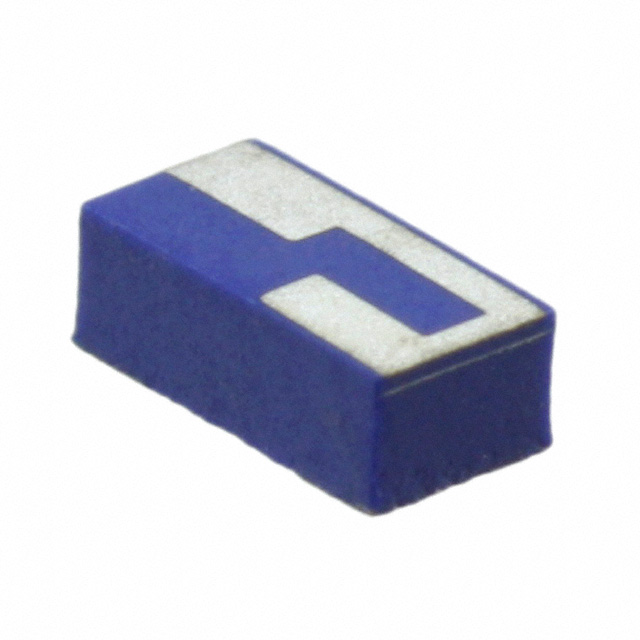

Pulse Electronics ANT3216LL15R1575A	GPS	1	Navigation	1.2 mm	0.047 in	Chip	Solder	-10 dB	1.575 GHz	Surface Mount	1 W	UHF	2.01 dBi		1550 MHz	1600 MHz	2 GHz	1 GHz
