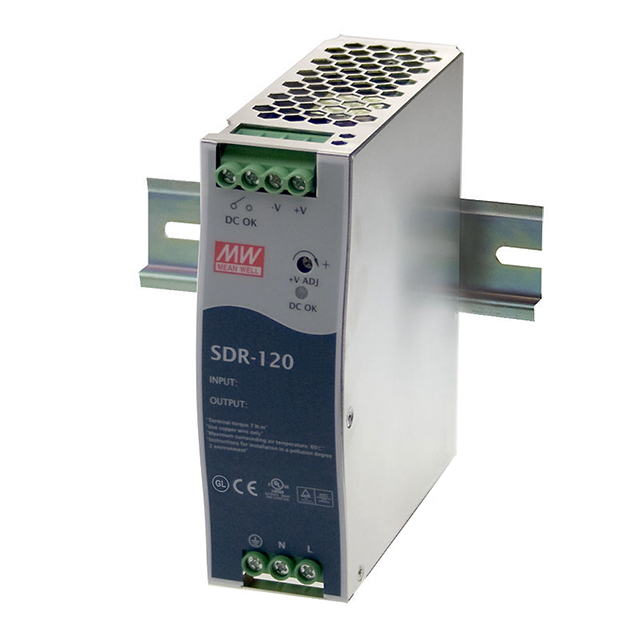

SDR-120 Series

Catalog

AC/DC DIN RAIL SUPPLY 48V 120W

Part	Minimum Load Required	Input Type	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Voltage - Isolation	DC Voltage - Input (Min) [Min]	Number of Outputs	Features	Approval Agency	DC Voltage - Input (Max) [Max]	Applications	Voltage - Output 1	Power (Watts)
MEAN WELL USA Inc. SDR-120-48		AC or DC	90.5 %	40 mm	4.93 in	125.2 mm	113.5 mm	4.47 "	1.57 "	70 °C	-25 °C	2.5 A	264 VAC	88 VAC	3000 V	124 V	1	Adjustable Output PFC Universal Input	CB CE cURus TUV	370 V	Industrial ITE (Commercial)	48 V	120 W
MEAN WELL USA Inc. SDR-120-12		AC or DC	89 %	40 mm	4.93 in	125.2 mm	113.5 mm	4.47 "	1.57 "	70 °C	-25 °C	10 A	264 VAC	88 VAC	3000 V	124 V	1	Adjustable Output PFC Universal Input	CB CE cURus TUV	370 V	Industrial ITE (Commercial)	12 V	120 W
