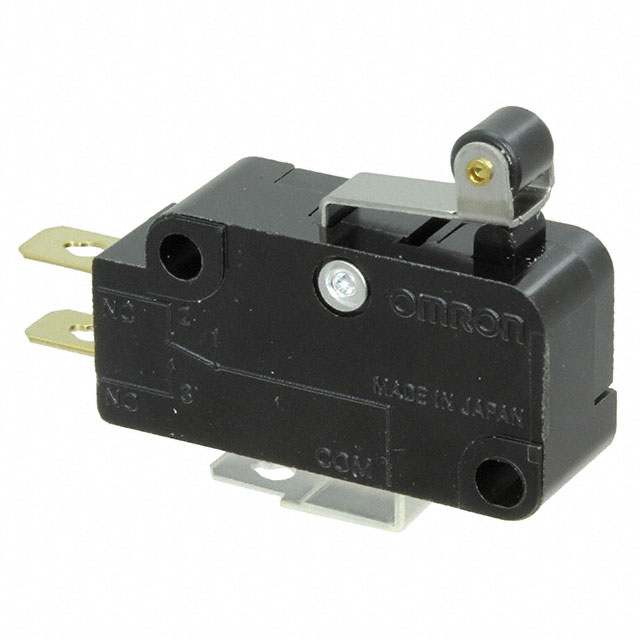

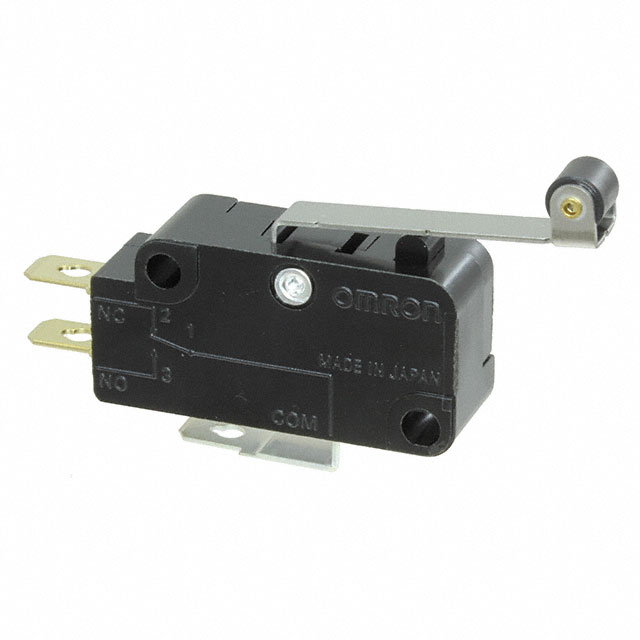

D2MV Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SWITCH SNAP ACTION SPDT 1A 125V

Part	Voltage Rating - DC	Release Force	Mechanical Life	Actuator Type	Electrical Life	Operating Position	Operating Position	Overtravel	Overtravel	Termination Style	Termination Style	Operating Force	Circuit	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Differential Travel	Differential Travel	Voltage Rating - AC	Pretravel	Pretravel	Mounting Type	Current Rating (Amps)	Operating Position [custom]
Omron Electronics Inc-EMC Div D2MV-1L-1C2	30 V	1.02 gf	10000000 Cycles	Lever Straight	500000 Cycles	0.6 in	15.2 mm	0.083 in	2.1 mm	Quick Connect Solder	0.187 in 4.7 mm	15 gf	SPDT	On-Mom	-25 °C	80 C	IP40	0.027 "	0.7 mm	125 V	3.3 mm	0.131 in	Chassis Mount
Omron Electronics Inc-EMC Div D2MV1L221C4	30 V		10000000 Cycles	Lever Roller	500000 Cycles	0.815 in	20.7 mm	0.04 in	1 mm	Quick Connect Solder	0.187 in 4.7 mm		SPDT	On-Mom	-25 °C	80 C	IP40	0.016 "	0.4 mm	125 V	1.7 mm	0.067 in	Chassis Mount
Omron Electronics Inc-EMC Div D2MV11C3	30 V	2.039 gf	10000000 Cycles	Round (Pin Plunger)	500000 Cycles	0.579 in	14.7 mm	0.051 in	1.3 mm	Quick Connect Solder	0.187 in 4.7 mm	50 gf	SPDT	On-Mom	-25 °C	80 C	IP40	0.01 in	0.25 mm	125 V	1.2 mm	0.047 in	Chassis Mount
Omron Electronics Inc-EMC Div D2MV-01L22-1C1	30 V	0.51 gf	10000000 Cycles	Lever Roller	1000000 Cycles	0.815 in	20.7 mm	0.04 in	1 mm	Quick Connect Solder	0.187 in 4.7 mm	10 gf	SPDT	On-Mom	-25 °C	80 C	IP40	0.016 "	0.4 mm	125 V	1.6 mm	0.063 in	Chassis Mount	100 mA
Omron Electronics Inc-EMC Div D2MV01L221C2	30 V	2.039 gf	10000000 Cycles	Lever Roller	1000000 Cycles	0.815 in	20.7 mm	0.04 in	1 mm	Quick Connect Solder	0.187 in 4.7 mm		SPDT	On-Mom	-25 °C	80 C	IP40	0.016 "	0.4 mm	125 V	1.7 mm	0.067 in	Chassis Mount	100 mA
Omron Electronics Inc-EMC Div D2MV01L21C3	30 V	2.039 gf	10000000 Cycles	Lever Roller	1000000 Cycles	0.815 in	20.7 mm	0.083 in	2.1 mm	Quick Connect Solder	0.187 in 4.7 mm	30 gf	SPDT	On-Mom	-25 °C	80 C	IP40	0.027 "	0.7 mm	125 V	3.3 mm	0.131 in	Chassis Mount	100 mA
Omron Electronics Inc-EMC Div D2MV-1L2-1C3	30 V	2.039 gf	10000000 Cycles	Lever Roller	500000 Cycles	0.815 in	20.7 mm	0.083 in	2.1 mm	Quick Connect Solder	0.187 in 4.7 mm	30 gf	SPDT	On-Mom	-25 °C	80 C	IP40	0.027 "	0.7 mm	125 V	3.3 mm	0.131 in	Chassis Mount

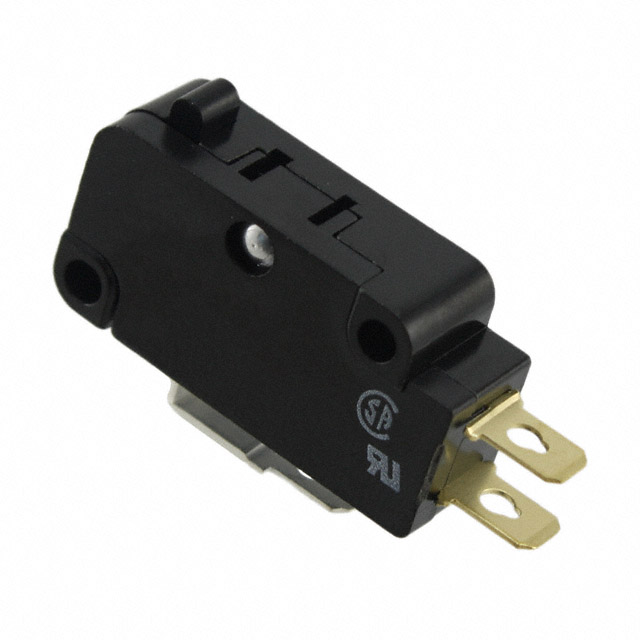

Omron Electronics Inc-EMC Div D2MV-01-1C1	30 V	0.51 gf	10000000 Cycles	Round (Pin Plunger)	1000000 Cycles	0.579 in	14.7 mm	0.051 in	1.3 mm	Quick Connect Solder	0.187 in 4.7 mm	10 gf	SPDT	On-Mom	-25 °C	80 C	IP40	0.01 in	0.25 mm	125 V	1.2 mm	0.047 in	Chassis Mount	100 mA
Omron Electronics Inc-EMC Div D2MV1L221C2	30 V	2.039 gf	10000000 Cycles	Lever Roller	500000 Cycles	0.815 in	20.7 mm	0.04 in	1 mm	Quick Connect Solder	0.187 in 4.7 mm		SPDT	On-Mom	-25 °C	80 C	IP40	0.016 "	0.4 mm	125 V	1.7 mm	0.067 in	Chassis Mount
Omron Electronics Inc-EMC Div D2MV-01L13-1C3	30 V	2.039 gf	10000000 Cycles	Lever Simulated Roller	1000000 Cycles		18.7 mm	0.075 in	1.9 mm	Quick Connect Solder	0.187 in 4.7 mm	30 gf	SPDT	On-Mom	-25 °C	80 C	IP40	0.027 "	0.7 mm	125 V	3.3 mm	0.131 in	Chassis Mount	100 mA	0.738 in
