047272 Series

Manufacturer: Molex

Catalog

CONN RCPT DISPLAYPORT 20P SMD RA

Part	Connector Type	Number of Ports	Termination	Voltage - Rated	Gender	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Current Rating (Amps)	Shielding	Shell/Shielding Material	Material Flammability Rating	Mounting Feature	Features	Insulation Color	Mating Cycles
Molex 0472721004	DisplayPort	1	Solder	40 VAC	Receptacle	Surface Mount Right Angle Through Hole	85 °C	-20 C	Gold	0.5 A	Shielded	Phosphor Bronze	UL94 V-0	Flange Horizontal	Board Guide Latch Lock	Black	10000
Molex 0472721002	DisplayPort	1	Solder	40 VAC	Receptacle	Surface Mount Right Angle Through Hole	85 °C	-20 C	Gold	0.5 A	Shielded	Stainless Steel	UL94 V-0	Horizontal	Board Guide Cover Latch Lock	Black	10000
Molex 0472720001	DisplayPort	1	Solder	40 VAC	Receptacle	Surface Mount Right Angle Through Hole	85 °C	-20 C	Gold	0.5 A	Shielded	Stainless Steel	UL94 V-0	Horizontal	Board Guide Latch Lock	Black	10000

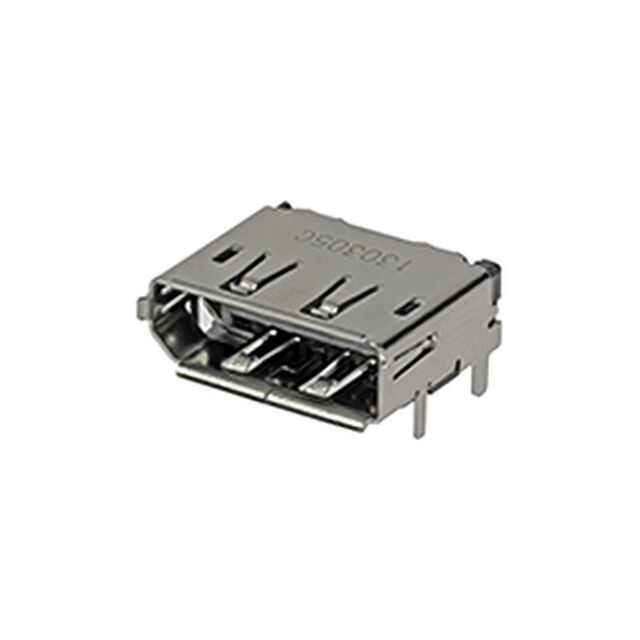

Molex 0472720029	DisplayPort	1	Solder	40 VAC	Receptacle	Surface Mount Right Angle Through Hole	85 °C	-20 C	Gold	0.5 A	Shielded	Stainless Steel	UL94 V-0	Horizontal	Board Guide Latch Lock	Black	10000
Molex 0472721026	DisplayPort	1	Solder	40 VAC	Receptacle	Surface Mount Right Angle Through Hole	85 °C	-20 C	Gold	0.5 A	Shielded		UL94 V-0	Horizontal		Black	10000
Molex 0472720004
Molex 0472720003	DisplayPort	1	Solder	40 VAC	Receptacle	Surface Mount Right Angle Through Hole	85 °C	-20 C	Gold	0.5 A	Shielded	Stainless Steel	UL94 V-0	Horizontal	Board Guide	Black	10000

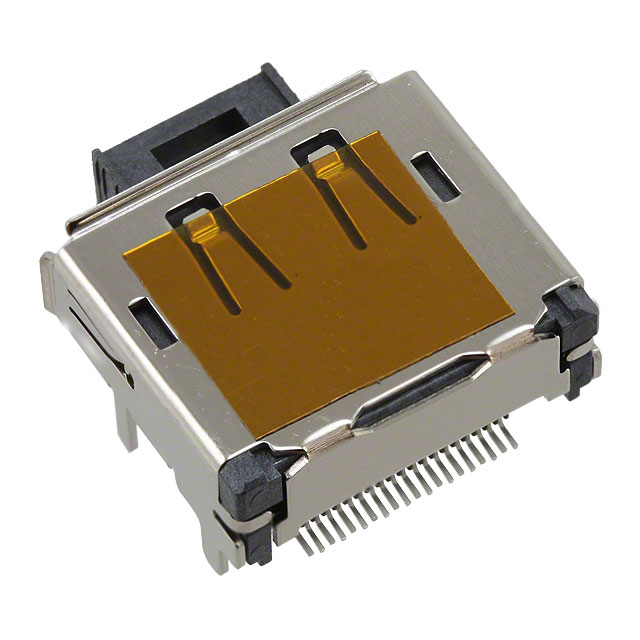

Molex 0472720024	DisplayPort	1	Solder	40 VAC	Receptacle	Surface Mount Right Angle Through Hole	85 °C	-20 C	Gold	0.5 A	Shielded	Stainless Steel	UL94 V-0	Horizontal	Board Guide Cover Latch Lock	Black	10000
Molex 0472720121
Molex 0472721005	DisplayPort	1	Solder	40 VAC	Receptacle	Surface Mount Right Angle Through Hole	85 °C	-20 C	Gold	0.5 A	Shielded	Phosphor Bronze	UL94 V-0	Flange Horizontal	Board Guide Latch Lock Solder Retention	Black	10000
