PCA-7F Series

Manufacturer: Adam Tech

Catalog

CONN FFC BOTTOM 9POS 0.3MM R/A

Part	Actuator Color	Housing Color	Contact Finish Thickness	Current Rating (Amps)	Pitch	Pitch	Features	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Material Flammability Rating	Cable End Type	Actuator Material	Flat Flex Type	Contact Finish	Locking Feature	FFC, FCB Thickness [custom]	Mounting Type	Connector/Contact Type	Voltage Rating	Number of Positions	Height Above Board [z]	Height Above Board [z]	Termination
Adam Tech PCA-7F-09-HL-3-G	Black	Natural	Flash	0.3 A	0.012 in	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Copper Alloy	85 °C	-25 °C	Thermoplastic	UL94 V-0	Tapered	Thermoplastic	FFC FPC	Gold	Flip Lock	0.2 mm	Right Angle Surface Mount	Contacts Bottom	30 VDC	9	1 mm	0.039 "	Solder
Adam Tech PCA-7F-25-HL-3-G	Black	Natural	Flash	0.3 A	0.012 in	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Copper Alloy	85 °C	-25 °C	Thermoplastic	UL94 V-0	Tapered	Thermoplastic	FFC FPC	Gold	Flip Lock	0.2 mm	Right Angle Surface Mount	Contacts Bottom	30 VDC	25	1 mm	0.039 "	Solder

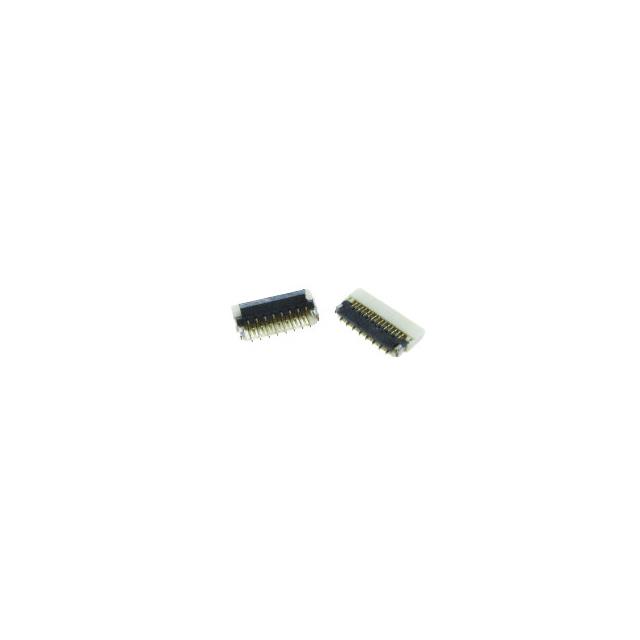

Adam Tech PCA-7F-15-HL-3-G	Black	Natural	Flash	0.3 A	0.012 in	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Copper Alloy	85 °C	-25 °C	Thermoplastic	UL94 V-0	Tapered	Thermoplastic	FFC FPC	Gold	Flip Lock	0.2 mm	Right Angle Surface Mount	Contacts Bottom	30 VDC	15	1 mm	0.039 "	Solder
Adam Tech PCA-7F-27-HL-3-G	Black	Natural	Flash	0.3 A	0.012 in	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Copper Alloy	85 °C	-25 °C	Thermoplastic	UL94 V-0	Tapered	Thermoplastic	FFC FPC	Gold	Flip Lock	0.2 mm	Right Angle Surface Mount	Contacts Bottom	30 VDC	27	1 mm	0.039 "	Solder

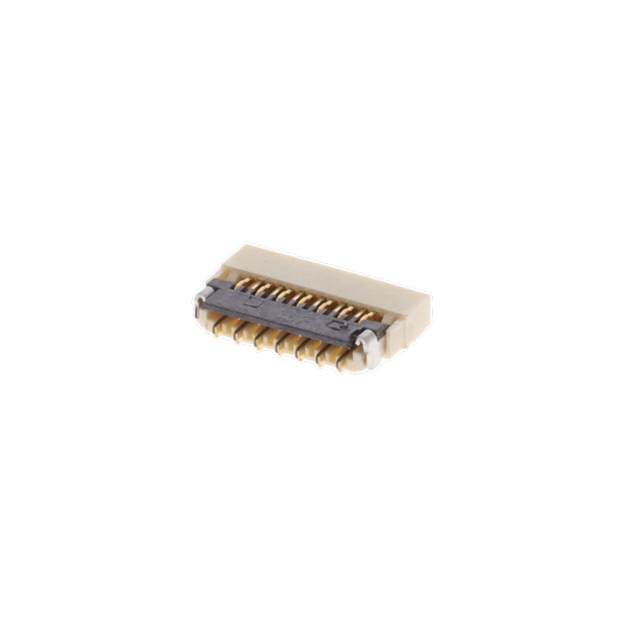

Adam Tech PCA-7F-13-HL-3-G	Black	Natural	Flash	0.3 A	0.012 in	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Copper Alloy	85 °C	-25 °C	Thermoplastic	UL94 V-0	Tapered	Thermoplastic	FFC FPC	Gold	Flip Lock	0.2 mm	Right Angle Surface Mount	Contacts Bottom	30 VDC	13	1 mm	0.039 "	Solder
