880-70 Series

Manufacturer: Preci-Dip

Catalog

CONN HEADER VERT 17POS 2MM

Part	Contact Finish Thickness - Post	Shrouding	Contact Shape	Contact Type	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Color	Contact Length - Post [custom]	Contact Length - Post	Contact Material	Pitch - Mating	Pitch - Mating	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Termination	Fastening Type	Insulation Material	Material Flammability Rating	Mounting Type	Connector Type	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]	Number of Positions	Number of Positions [custom]

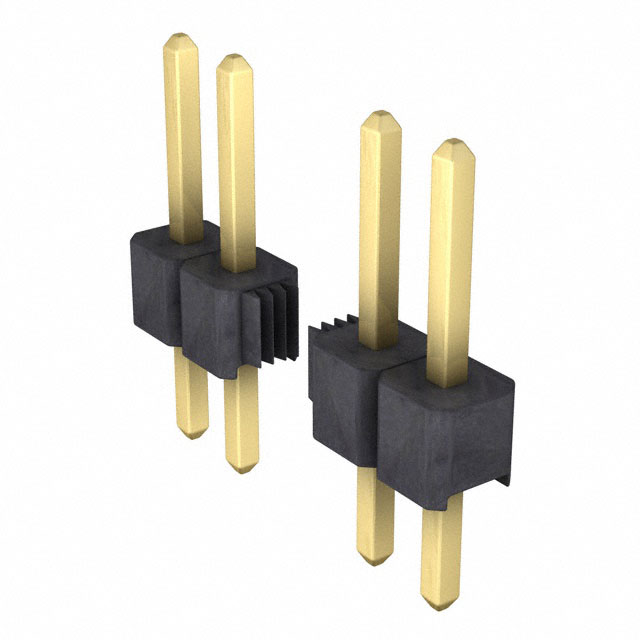

Preci-Dip 880-70-017-10-001101	Flash	Unshrouded	Square	Male Pin	Flash	Gold	Black	0.11 in	2.79 mm	Brass	0.079 "	2 mm	1	8.8 mm	0.346 in	Gold	150 VDC	-55 C	125 °C	All	Solder	Push-Pull	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Through Hole	Header	4 mm	0.157 in	2 mm	0.079 in

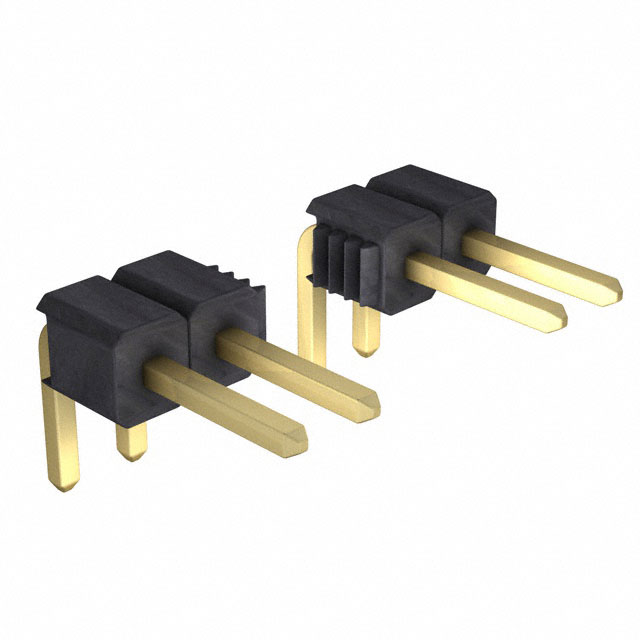

Preci-Dip 880-70-023-20-001101	Flash	Unshrouded	Square	Male Pin	Flash	Gold	Black	0.11 in	2.79 mm	Brass	0.079 "	2 mm	1			Gold	150 VDC	-55 C	125 °C	All	Solder	Push-Pull	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Right Angle Through Hole	Header	4 mm	0.157 in	2 mm	0.079 in	23
Preci-Dip 880-70-014-20-001101	Flash	Unshrouded	Square	Male Pin	Flash	Gold	Black	0.11 in	2.79 mm	Brass	0.079 "	2 mm	1			Gold	150 VDC	-55 C	125 °C	All	Solder	Push-Pull	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Right Angle Through Hole	Header	4 mm	0.157 in	2 mm	0.079 in	14
Preci-Dip 880-70-011-20-001101	Flash	Unshrouded	Square	Male Pin	Flash	Gold	Black	0.11 in	2.79 mm	Brass	0.079 "	2 mm	1			Gold	150 VDC	-55 C	125 °C	All	Solder	Push-Pull	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Right Angle Through Hole	Header	4 mm	0.157 in	2 mm	0.079 in	11
Preci-Dip 880-70-024-20-001101	Flash	Unshrouded	Square	Male Pin	Flash	Gold	Black	0.11 in	2.79 mm	Brass	0.079 "	2 mm	1			Gold	150 VDC	-55 C	125 °C	All	Solder	Push-Pull	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Right Angle Through Hole	Header	4 mm	0.157 in	2 mm	0.079 in	24
Preci-Dip 880-70-007-10-001101	Flash	Unshrouded	Square	Male Pin	Flash	Gold	Black	0.11 in	2.79 mm	Brass	0.079 "	2 mm	1	8.8 mm	0.346 in	Gold	150 VDC	-55 C	125 °C	All	Solder	Push-Pull	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Through Hole	Header	4 mm	0.157 in	2 mm	0.079 in	7
Preci-Dip 880-70-022-10-001101	Flash	Unshrouded	Square	Male Pin	Flash	Gold	Black	0.11 in	2.79 mm	Brass	0.079 "	2 mm	1	8.8 mm	0.346 in	Gold	150 VDC	-55 C	125 °C	All	Solder	Push-Pull	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Through Hole	Header	4 mm	0.157 in	2 mm	0.079 in	22
Preci-Dip 880-70-031-20-001101	Flash	Unshrouded	Square	Male Pin	Flash	Gold	Black	0.11 in	2.79 mm	Brass	0.079 "	2 mm	1			Gold	150 VDC	-55 C	125 °C	All	Solder	Push-Pull	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Right Angle Through Hole	Header	4 mm	0.157 in	2 mm	0.079 in		31
Preci-Dip 880-70-014-10-001101	Flash	Unshrouded	Square	Male Pin	Flash	Gold	Black	0.11 in	2.79 mm	Brass	0.079 "	2 mm	1	8.8 mm	0.346 in	Gold	150 VDC	-55 C	125 °C	All	Solder	Push-Pull	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Through Hole	Header	4 mm	0.157 in	2 mm	0.079 in	14
Preci-Dip 880-70-016-10-001101	Flash	Unshrouded	Square	Male Pin	Flash	Gold	Black	0.11 in	2.79 mm	Brass	0.079 "	2 mm	1	8.8 mm	0.346 in	Gold	150 VDC	-55 C	125 °C	All	Solder	Push-Pull	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Through Hole	Header	4 mm	0.157 in	2 mm	0.079 in	16
