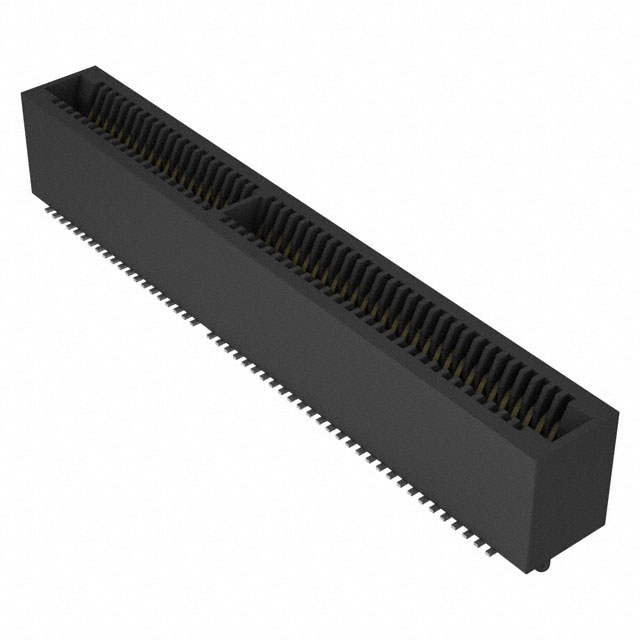

MEC1-150 Series

Catalog

CONN EDGE DUAL FML 100POS 0.039

Part	Number of Rows	Contact Material	Read Out	Contact Type	Card Type	Mounting Type	Color	Contact Finish	Gender	Material - Insulation	Termination	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Positions	Card Thickness	Card Thickness	Features
Samtec Inc. MEC1-150-02-L-D-TR	2	Beryllium Copper	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	10 Áin	0.25 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm
Samtec Inc. MEC1-150-02-F-D-A-TR	2	Phosphor Bronze	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	3 Áin	0.076 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm	Board Guide
Samtec Inc. MEC1-150-02-FM-D-RA1-SL-TR	2	Phosphor Bronze	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount Right Angle	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	3 Áin	0.076 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm

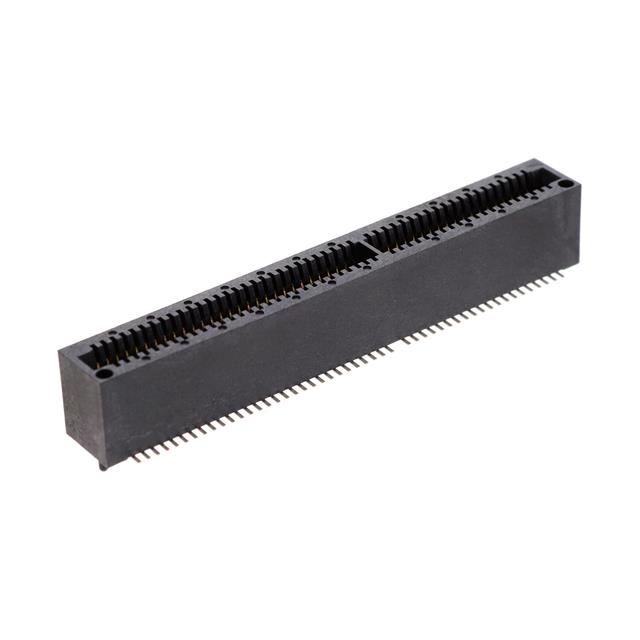

Samtec Inc. MEC1-150-02-S-D-A-K-TR	2	Beryllium Copper	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	30 Áin	0.76 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm	Board Guide Pick and Place
Samtec Inc. MEC1-150-02-L-D-EM2	2	Phosphor Bronze	Dual	Loop Bellows	Non Specified - Dual Edge	Board Edge Straddle Mount	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	10 Áin	0.25 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm
Samtec Inc. MEC1-150-02-S-D-RA2-SL-TR	2	Phosphor Bronze	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount Right Angle	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	30 Áin	0.76 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm
Samtec Inc. MEC1-150-02-S-D-RA2-SL	2	Phosphor Bronze	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount Right Angle	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	30 Áin	0.76 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm
Samtec Inc. MEC1-150-02-F-D-A-K	2	Beryllium Copper	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	3 Áin	0.076 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm	Board Guide Pick and Place
Samtec Inc. MEC1-150-02-FM-D-RA2-SL	2	Phosphor Bronze	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount Right Angle	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	3 Áin	0.076 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm
Samtec Inc. MEC1-150-02-F-D-LC	2	Beryllium Copper	Dual	Loop Bellows	Non Specified - Dual Edge	Surface Mount	Black	Gold	Female	Liquid Crystal Polymer (LCP)	Solder	3 Áin	0.076 Ám	-55 °C	125 °C	0.039 in	1 mm	100	0.062 in	1.57 mm
