MEG125 Series

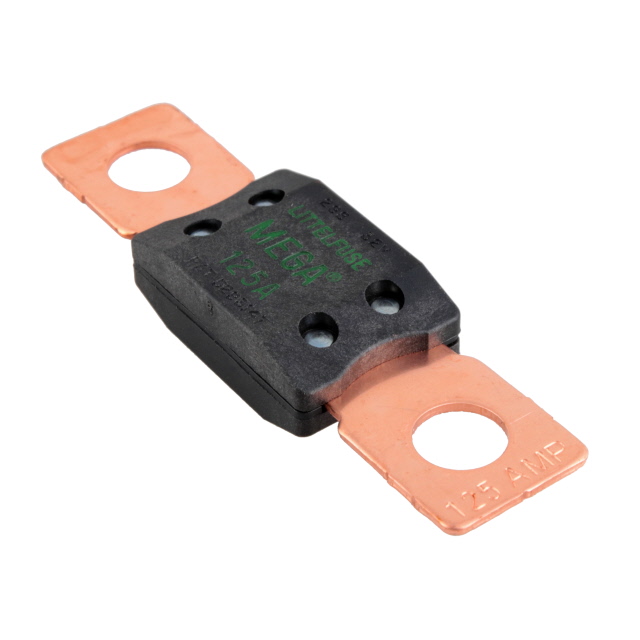

Fuse - Mega 32V, 125A, 1 pc blister

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Fuse - Mega 32V, 125A, 1 pc blister

Part	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC	Package / Case	Fuse Type	Color	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Response Time
Littelfuse/Commercial Vehicle Products 0MEG125.L	32 V	125 A	32 V	Auto Link	Automotive	Green	9.9 mm	0.39 in	19.5 mm	29.2 mm	0.77 in	1.149 in	Bolt Mount	Slow Blow
Littelfuse/Commercial Vehicle Products 0MEG125.X	32 V	125 A	32 V	Auto Link	Automotive	Green	9.9 mm	0.39 in	19.5 mm	29.2 mm	0.77 in	1.149 in	Bolt Mount	Slow Blow

Catalog

Fuse - Mega 32V, 125A, 1 pc blister

Description

The MEGA® Fuse is designed for high current circuit protection up to 250 amperes with Diffusion Pill Technology. The MEGA® Fuse also provides time delay characteristics. Designed and patented by Littelfuse, the MEGA® Fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.
