03K710 Series
Manufacturer: Rosenberger
Beta
⌘K

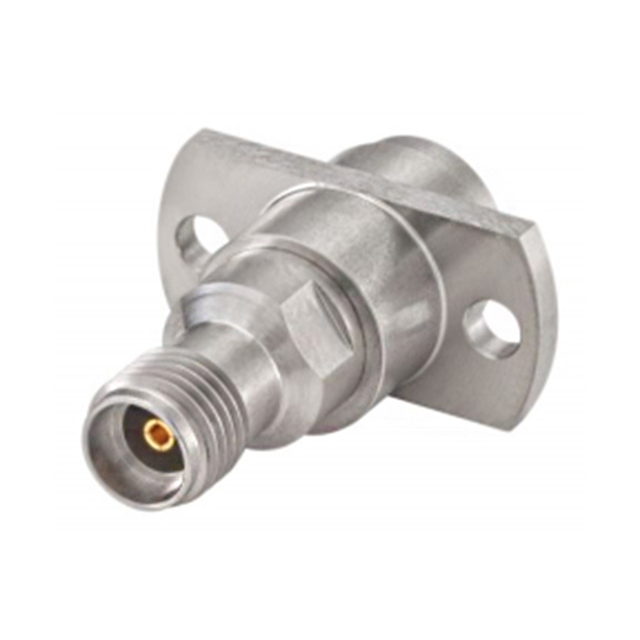

PRECISION 3.5 ADAPTER
| Part | Insertion Loss | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Center Contact Material | Body Finish | Mating Cycles | Frequency - Max [Max] | Center Gender | Impedance | Fastening Type | Adapter Type | Convert To (Adapter End) | Convert From (Adapter End) | Mounting Feature | Adapter Series [Max] | Adapter Series [Min] | Conversion Type | Style | Center Contact Plating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 0.24 dB | Polystyrene (PS) | 85 °C | -40 C | Stainless Steel | Beryllium Copper | White Bronze | 1000 | 22 GHz | Female to Female | 50 Ohms | Snap-On Threaded | Jack to Jack | SP Jack Female Socket | 3.5mm Jack Female Socket | Flange | RPC-SP | RPC-3.50 | Between Series | Straight | Gold | Panel Mount |
