RT1105 Series
Manufacturer: E-Switch
Beta
⌘K
TACTILE SWITCHES TACTILE, SPST-NO, OFF-(ON), THROUGH HOLE, REVERSE
| Part | Contact Rating @ Voltage | Switch Function | Termination Style | Circuit | Actuator Orientation | Actuator Height off PCB, Vertical | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Illumination | Outline [x] | Outline [y] | Switch Travel | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.05 A 12 VDC | Off-Mom | PC Pin | SPST-NO | Top Actuated | 4.4 mm | 350 gf | 85 °C | -20 ░C | Standard | Non-Illuminated | 6.8 mm | 6.8 mm | ||

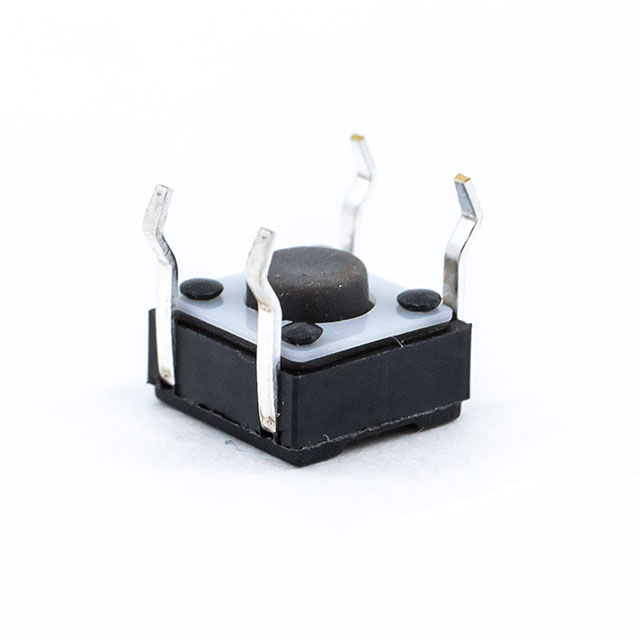

 E-Switch | 0.05 A 12 VDC | Off-Mom | PC Pin | SPST-NO | Top Actuated | 4.4 mm | 260 gf | 85 °C | -20 ░C | Standard | Non-Illuminated | 6.8 mm | 6.8 mm | 0.25 mm | |

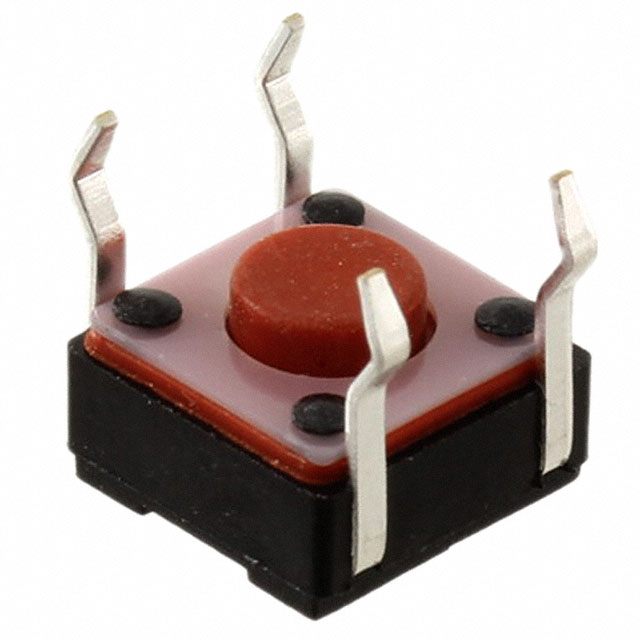

 E-Switch | 0.05 A 12 VDC | Off-Mom | PC Pin | SPST-NO | Top Actuated | 4.4 mm | 160 gf | 85 °C | -20 ░C | Standard | Non-Illuminated | 6.8 mm | 6.8 mm | 0.25 mm | Red Actuator |
