3124A Series
Manufacturer: Belden Inc.
Beta
⌘K

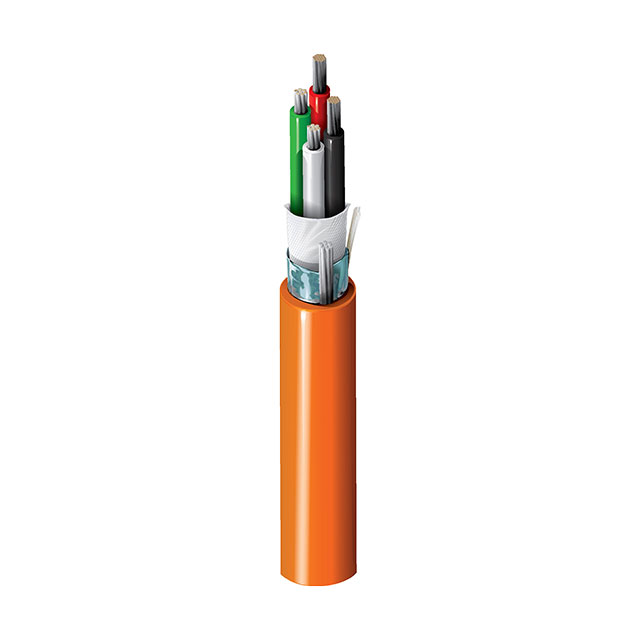

CABLE 4COND 18AWG/22AWG
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Conductor Insulation | Wire Gauge | Jacket Color | Cable Type | Ratings | Shield Type | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Length | Length | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Foam High Density Polyethylene (FHDPE) | 18 AWG 22 AWG | Orange | Multi-Conductor | UL Style 20201 | Foil | 4 | 30 AWG | 7 16 | 0.991 mm | 0.039 " | Drain Wire | 304.8 m | 1000 ft | Copper Tinned | 0.308 in | 7.82 mm |
