RT2805 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K
IC REG BUCK ADJ 5A 8SOP
| Part | Voltage - Input (Min) [Min] | Topology | Mounting Type | Function | Package / Case | Package / Case [y] | Package / Case [x] | Supplier Device Package | Number of Outputs | Synchronous Rectifier | Output Type | Voltage - Output (Min/Fixed) | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Voltage - Output (Max) [Max] | Current - Output | Voltage - Input (Max) [Max] | Frequency - Switching | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Voltage - Output | Contents | Regulator Topology | Main Purpose | Voltage - Input [Min] | Voltage - Input [Max] | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

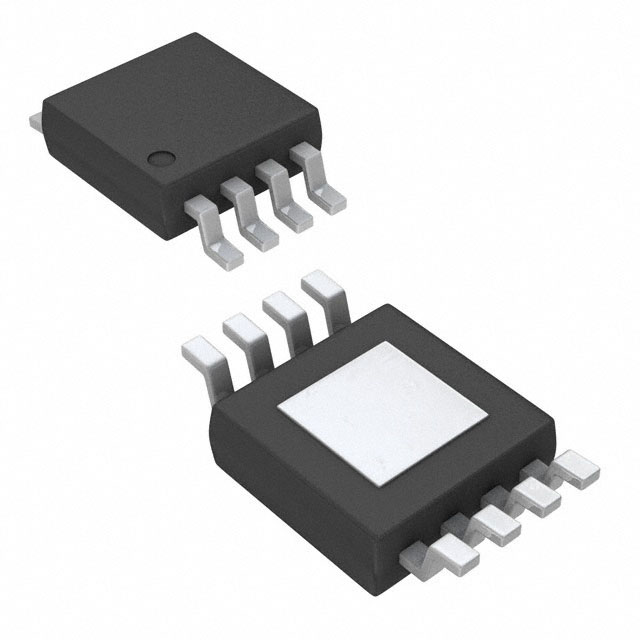

 Richtek USA Inc. | 5.5 V | Buck | Surface Mount | Step-Down | 8-SOIC Exposed Pad | 3.9 mm | 0.154 in | 8-SOP-EP | 1 | Adjustable | 1.222 V | 85 C | -40 ¯C | Positive | 26 V | 5 A | 36 V | 500 kHz | ||||||||||||

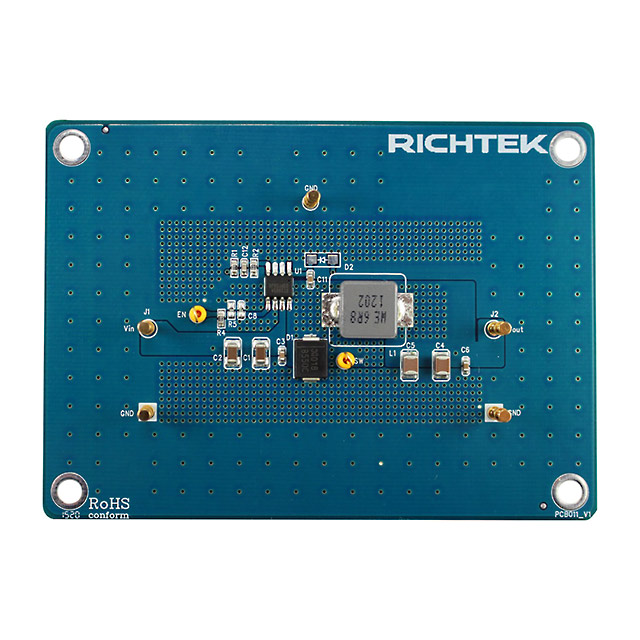

 Richtek USA Inc. | 5 A | 500 kHz | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | 2.4 V | Board(s) | Buck | DC/DC Step Down | 5.5 V | 36 V | RT2805A |
