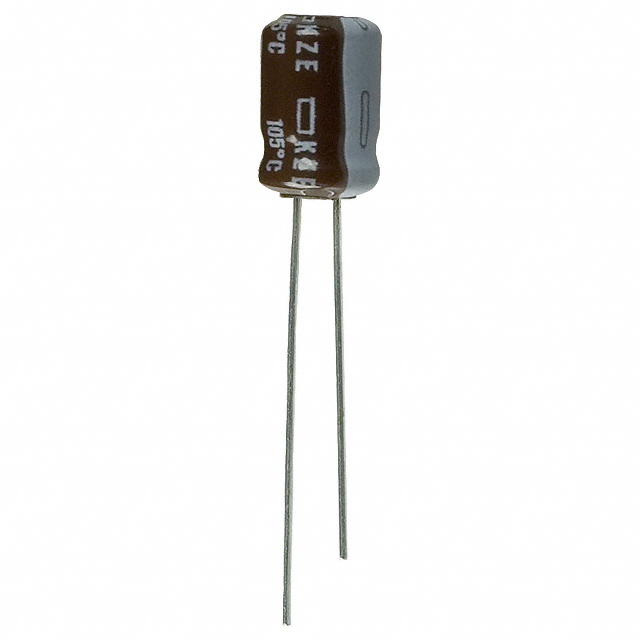

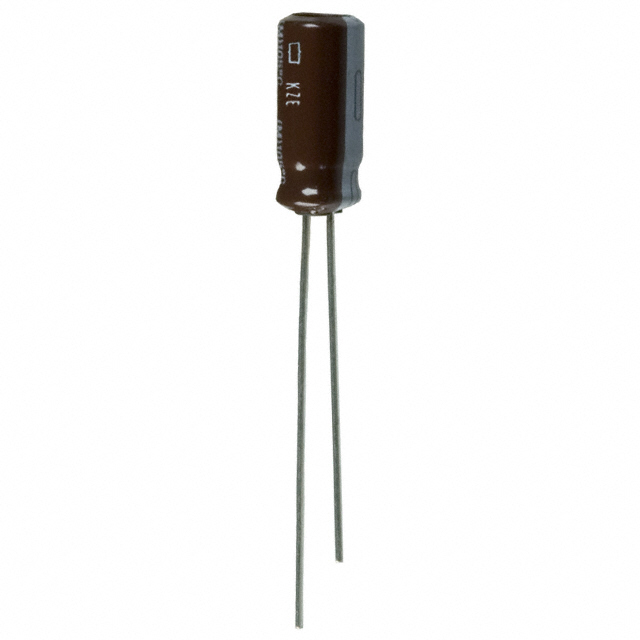

EKZE500E Series

Manufacturer: Chemi-Con

Catalog

CAP ALUM 820UF 20% 50V RADIAL TH

Part	Tolerance	Impedance	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Capacitance	Package / Case	Ripple Current @ Low Frequency	Applications	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Chemi-Con EKZE500ELL821ML20S	20 %	23 mOhms	2.73 A	0.846 "	21.5 mm	50 VDC	0.63 in	16 mm	5000 Hrs	820 µF	Can Radial	1.638 A 120 Hz	General Purpose	0.295 in	7.5 mm	-40 C	105 ░C	Through Hole	Polar
Chemi-Con EKZE500ETC100ME07D	20 %	500 mOhms	210 mA	0.315 in	8 mm	50 VDC	0.197 in	5 mm	2000 Hrs	10 µF	Can Radial	88.2 mA	General Purpose	0.079 in	2 mm	-40 C	105 ░C	Through Hole	Polar
Chemi-Con EKZE500ELL471MK20S	20 %	27 mOhms	2.05 A	0.846 "	21.5 mm	50 VDC	0.492 in	12.5 mm	5000 Hrs	470 µF	Can Radial		General Purpose	0.197 "	5 mm	-40 C	105 ░C	Through Hole	Polar

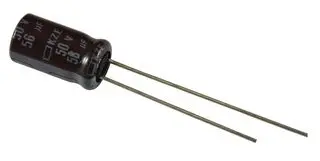

Chemi-Con EKZE500ELL560MF11D	20 %	140 mOhms	385 mA			50 VDC	0.248 "	6.3 mm	2000 Hrs	56 µF	Can Radial	154 mA	General Purpose	0.098 in	2.5 mm	-40 C	105 ░C	Through Hole	Polar	11 mm	0.433 in
Chemi-Con EKZE500ELL102ML25S	20 %	21 mOhms	3.01 A			50 VDC	0.63 in	16 mm	5000 Hrs	1000 µF	Can Radial	1.806 A	General Purpose	0.295 in	7.5 mm	-40 C	105 ░C	Through Hole	Polar	26.5 mm	1.043 in
Chemi-Con EKZE500ETC220ME11D	20 %	0.34 Ohms	238 mA		0.492 in	50 VDC	0.197 in	5 mm	2000 Hrs	22 µF	Can Radial	95.2 mA	General Purpose	0.079 in	2 mm	-40 C	105 ░C	Through Hole	Polar			12.5 mm
Chemi-Con EKZE500ETE561MK25S	20 %	23 mOhms	2.41 A			50 VDC	0.492 in	12.5 mm	5000 Hrs	560 µF	Can Radial	1.205 A	General Purpose	0.197 "	5 mm	-40 C	105 ░C	Through Hole	Polar	26.5 mm	1.043 in
Chemi-Con EKZE500ETD271MJ20S	20 %	30 mOhms	1.58 A	0.846 "	21.5 mm	50 VDC	0.394 in	10 mm	4000 Hrs	270 µF	Can Radial	790 mA	General Purpose	0.197 "	5 mm	-40 C	105 ░C	Through Hole	Polar
Chemi-Con EKZE500ELL100ME07D	20 %	500 mOhms	210 mA	0.315 in	8 mm	50 VDC	0.197 in	5 mm	2000 Hrs	10 µF	Can Radial	88.2 mA	General Purpose	0.079 in	2 mm	-40 C	105 ░C	Through Hole	Polar
Chemi-Con EKZE500ETD221MJ16S	20 %	42 mOhms	1.37 A			50 VDC	0.394 in	10 mm	4000 Hrs	220 µF	Can Radial	685 mA	General Purpose	0.197 "	5 mm	-40 C	105 ░C	Through Hole	Polar	0.689 in			17.5 mm
