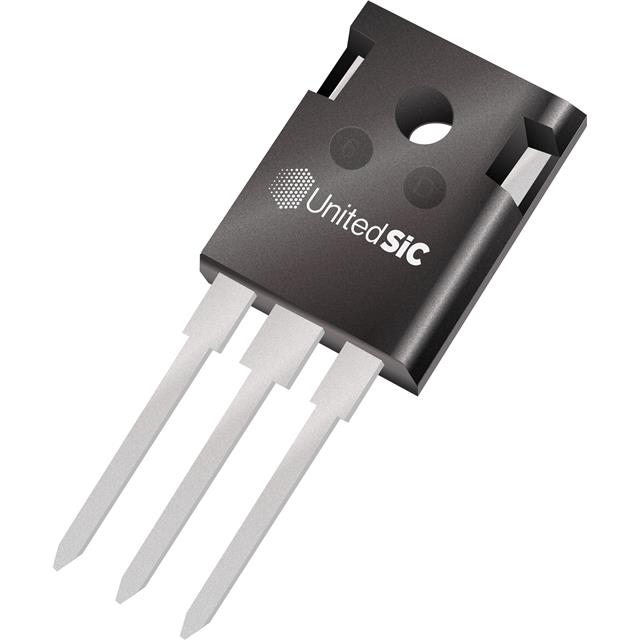

UJ4C075 Series

Manufacturer: Qorvo

Catalog

750V/44MOHM, SIC, CASCODE, G4, T

Part	Technology	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	FET Type	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Vgs (Max)	Rds On (Max) @ Id, Vgs	Power Dissipation (Max) [Max]	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]
Qorvo UJ4C075044K3S	SiCFET (Cascode SiCJFET)	6 V	750 V	1400 pF	N-Channel	37.4 A	37.8 nC	Through Hole	175 °C	-55 °C	TO-247-3	12 V	TO-247-3	20 V	56 mOhm	203 W
Qorvo UJ4C075033K3S	SiCFET (Cascode SiCJFET)	6 V	750 V	1400 pF	N-Channel	47 A	37.8 nC	Through Hole	175 °C	-55 °C	TO-247-3	12 V	TO-247-3	20 V	41 mOhm		242 W
Qorvo UJ4C075018K4S	SiCFET (Cascode SiCJFET)	6 V	750 V		N-Channel		37.8 nC	Through Hole	175 °C	-55 °C	TO-247-4		TO-247-4	20 V	23 mOhm		385 W	1422 pF
Qorvo UJ4C075023K3S	SiCFET (Cascode SiCJFET)	6 V	750 V	1400 pF	N-Channel	66 A	37.8 nC	Through Hole	175 °C	-55 C	TO-247-3	12 V	TO-247-3	20 V	29 mOhm		306 W
Qorvo UJ4C075060K3S	SiCFET (Cascode SiCJFET)	6 V	750 V		N-Channel	28 A	37.8 nC	Through Hole	175 °C	-55 °C	TO-247-3		TO-247-3	20 V	74 mOhm		155 W	1422 pF
Qorvo UJ4C075033K4S	SiCFET (Cascode SiCJFET)	6 V	750 V	1400 pF	N-Channel	47 A	37.8 nC	Through Hole	175 °C	-55 °C	TO-247-4	12 V	TO-247-4	20 V	41 mOhm		242 W
Qorvo UJ4C075060K4S	SiCFET (Cascode SiCJFET)	6 V	750 V		N-Channel	28 A	37.8 nC	Through Hole	175 °C	-55 °C	TO-247-4		TO-247-4	20 V	74 mOhm		155 W	1422 pF
Qorvo UJ4C075018K3S	SiCFET (Cascode SiCJFET)	6 V	750 V		N-Channel		37.8 nC	Through Hole	175 °C	-55 °C	TO-247-3		TO-247-3	20 V	23 mOhm		385 W	1422 pF
