1241.6624 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

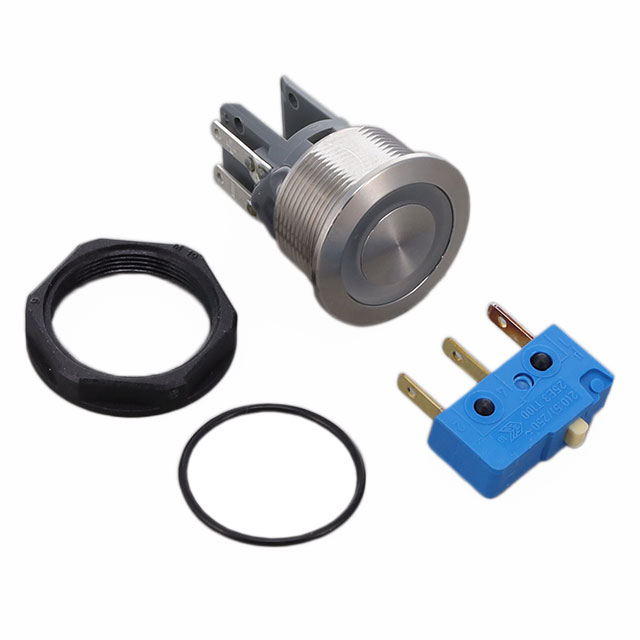

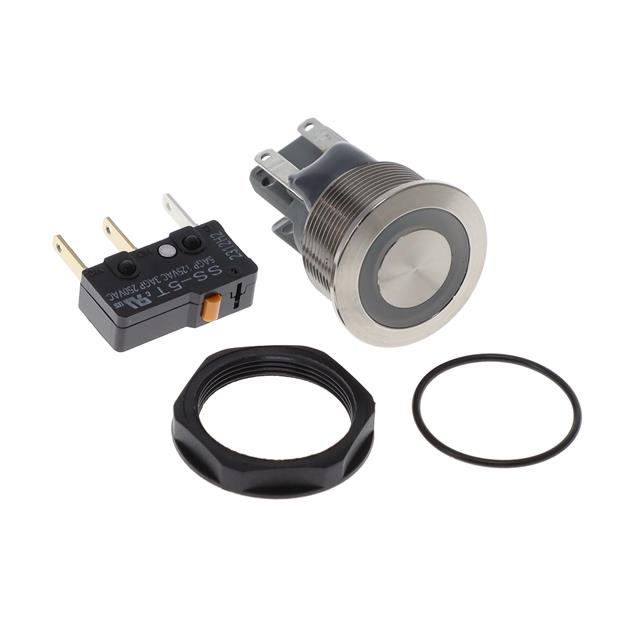

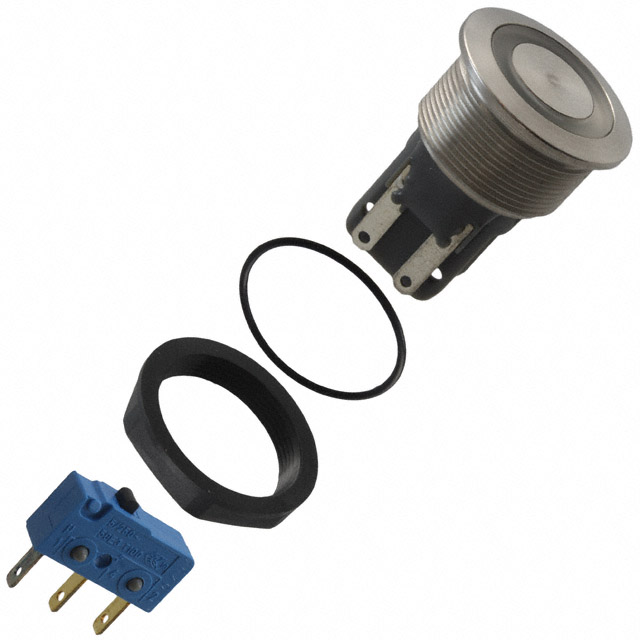

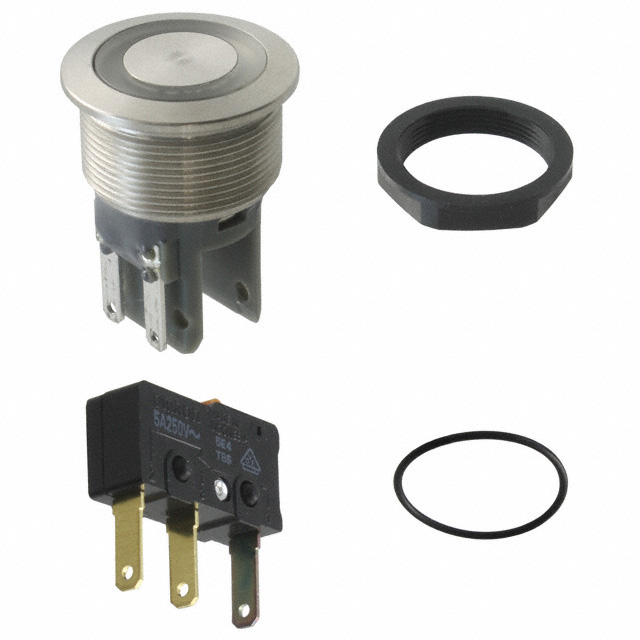

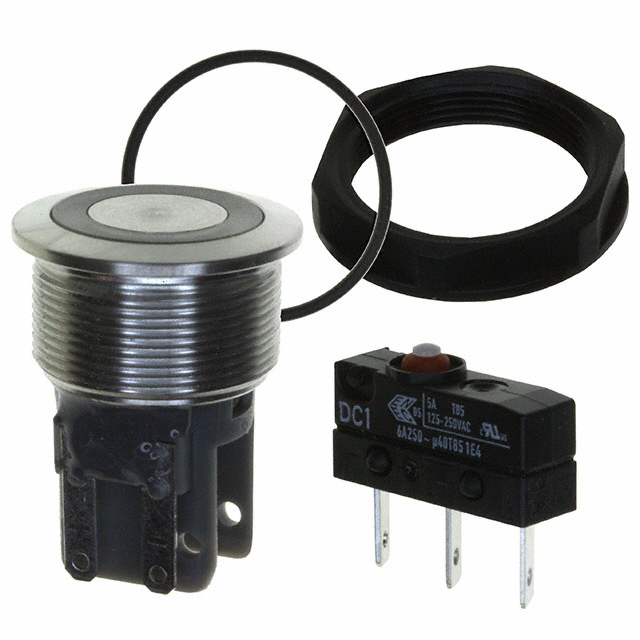

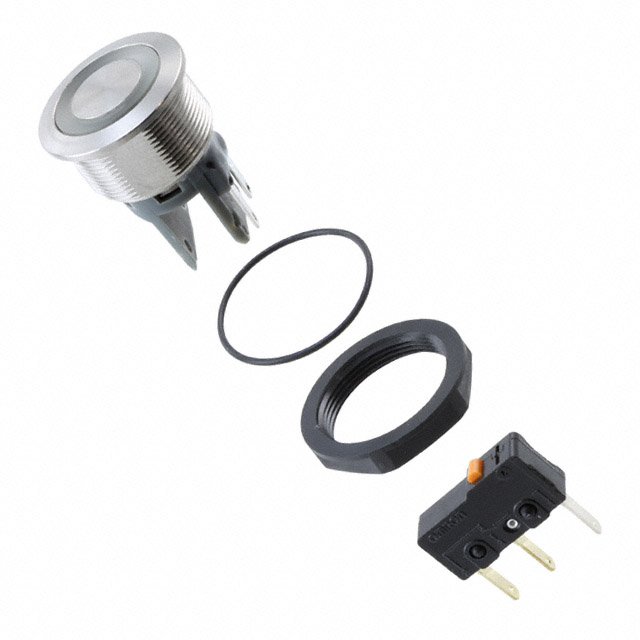

SWITCH PUSHBUTTON SPDT 5A 125V
| Part | Electrical Life | Mechanical Life | Color - Actuator/Cap | Circuit | Voltage Rating - AC | Type | Illumination Voltage (Nominal) | Termination Style | Actuator Type | Panel Cutout Dimensions [diameter] | Mounting Type | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Illumination Type, Color | Actuator Marking | Switch Function | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | Silver | SPDT | 125 V | Anti-Vandal Illuminated | 24 V | Quick Connect - 0.110" (2.8mm) | Button Flush Round | 19.1 mm | Panel Mount Front | IP40 | 85 °C | -25 °C | 5 A | Green LED | No Marking | On-Mom | |
 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | Silver | SPDT | 125 V | Anti-Vandal Illuminated | 24 V | Quick Connect - 0.110" (2.8mm) | Button Flush Round | 19.1 mm | Panel Mount Front | IP40 | 85 °C | -25 °C | 5 A | Blue LED | No Marking | On-Mom | |
 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | Silver | SPDT | Anti-Vandal Illuminated | 24 V | Quick Connect - 0.110" (2.8mm) | Button Flush Round | 19.1 mm | Panel Mount Front | IP40 | 85 °C | -25 °C | 100 mA | LED Red | No Marking | On-Mom | 30 V | |
 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | Silver | SPDT | 125 V | Anti-Vandal Illuminated | 24 V | Quick Connect - 0.110" (2.8mm) | Button Flush Round | 19.1 mm | Panel Mount Front | IP40 | 85 °C | -25 °C | 5 A | LED Red | No Marking | On-Mom | |
 SCHURTER Inc. | 50000 Cycles | 1500000 Cycles | Silver | SPDT | 250 V | Anti-Vandal Illuminated | 24 V | Quick Connect - 0.110" (2.8mm) | Button Flush Round | 19.1 mm | Panel Mount Front | IP67 - Dust Tight Waterproof | 85 °C | -25 °C | 5 A | LED Red | No Marking | On-Mom | |
 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | Silver | SPDT | 125 V | Anti-Vandal Illuminated | 24 V | Quick Connect - 0.110" (2.8mm) | Button Flush Round | 19.1 mm | Panel Mount Front | IP40 | 85 °C | -25 °C | 5 A | LED Yellow | No Marking | On-Mom | |
SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | Silver | SPDT | Anti-Vandal Illuminated | 24 V | Quick Connect - 0.110" (2.8mm) | Button Flush Round | 19.1 mm | Panel Mount Front | IP40 | 85 °C | -25 °C | 100 mA | Green LED | No Marking | On-Mom | 30 V |
