CWT12AA Series

Catalog

ROCKER SWITCH, ON-NONE-ON, SPDT, NON ILLUMINATED, PANEL MOUNT, BLACK, CW SERIES

Part	Mechanical Life	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Voltage Rating - DC	Mounting Type	Current Rating (Amps)	Color - Actuator/Cap	Termination Style	Ingress Protection	Voltage Rating - AC	Features	Actuator Marking	Switch Function	Actuator Type
NKK Switches CWT12AAS1/U	50000 Cycles	25000 Steps	-25 °C	70 °C	SPDT	19.2 mm	6.8 mm	cULus	30 V	Panel Mount Snap-In	4 A 6 A	Black	Solder Lug	Dust Proof	125 V	Epoxy Sealed Terminals	No Marking	On-On	Concave (Curved)

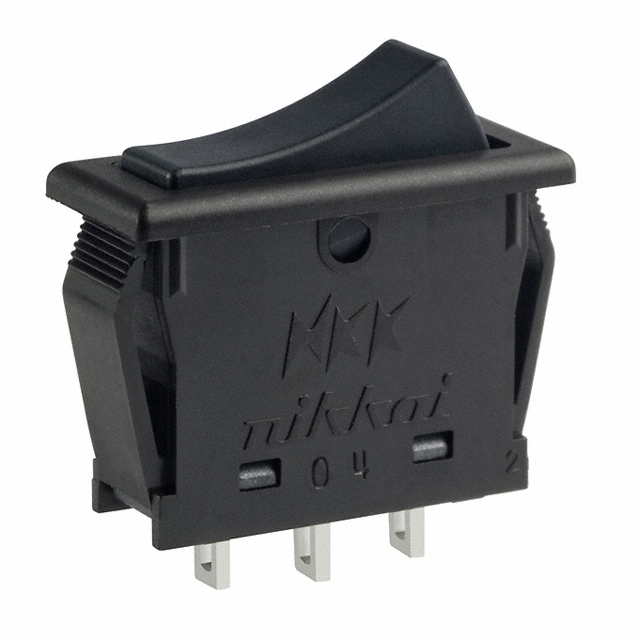

NKK Switches CWT12AAS1/UC	50000 Cycles	25000 Steps	-25 °C	70 °C	SPDT	19.2 mm	6.8 mm	cULus	30 V	Panel Mount Snap-In	4 A 6 A	Black	Solder Lug	Dust Proof	125 V	Epoxy Sealed Terminals	No Marking	On-On	Concave (Curved)

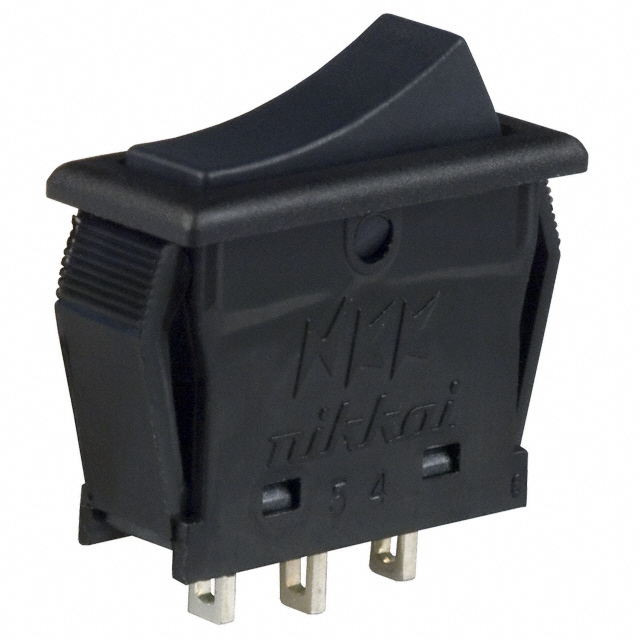

NKK Switches CWT12AAS1	50000 Cycles	25000 Steps	-25 °C	70 °C	SPDT	19.2 mm	6.8 mm	cULus	30 V	Panel Mount Snap-In	4 A 6 A	Black	Solder Lug	Dust Proof	125 V	Epoxy Sealed Terminals	No Marking	On-On	Concave (Curved)
