PR142 Series
Manufacturer: E-Switch
Beta
⌘K

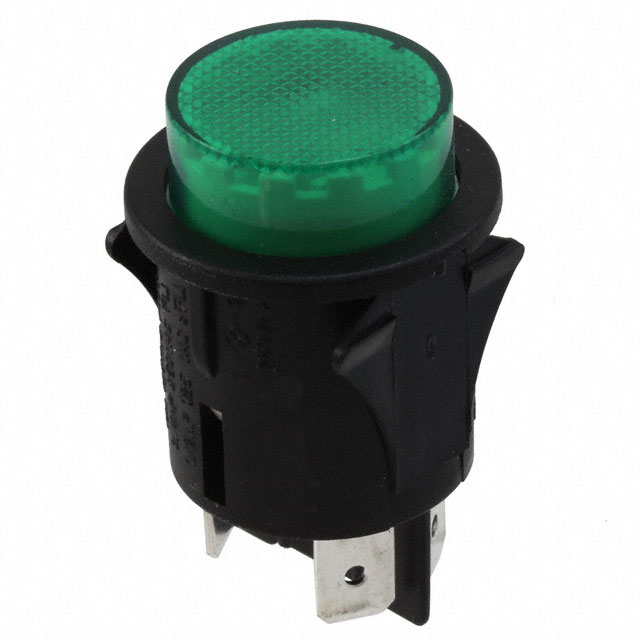

SWITCH PUSHBUTTON DPST 16A 125V
| Part | Electrical Life | Type | Illumination Type, Color | Voltage Rating - AC | Color - Actuator/Cap | Panel Cutout Dimensions [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Marking | Termination Style | Switch Function | Current Rating (Amps) | Actuator Type | Illumination Voltage (Nominal) | Circuit | Mounting Type | Illumination Type, Color [custom] | Illumination Type, Color [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | Illuminated Standard | Neon Amber | 125 V | Amber | 25 mm | -20 ░C | 105 ░C | No Marking | Quick Connect - 0.250" (6.3mm) | Off-On | 16 A | Button Round | 250 VAC | DPST | Panel Mount Snap-In | ||
 E-Switch | 10000 Cycles | Illuminated Standard | Clear Neon | 125 V | Clear | 25 mm | -20 ░C | 105 ░C | No Marking | Quick Connect - 0.250" (6.3mm) | Off-On | 16 A | Button Round | 250 VAC | DPST | Panel Mount Snap-In | ||
 E-Switch | 10000 Cycles | Standard | 125 V | White | 25 mm | -20 ░C | 105 ░C | No Marking | Quick Connect - 0.250" (6.3mm) | Off-On | 16 A | Button Round | DPST | Panel Mount Snap-In | ||||
 E-Switch | 10000 Cycles | Illuminated Standard | 125 V | Green | 25 mm | -20 ░C | 105 ░C | No Marking | Quick Connect - 0.250" (6.3mm) | Off-On | 16 A | Button Round | 250 VAC | DPST | Panel Mount Snap-In | Neon | Green | |
E-Switch | 10000 Cycles | Illuminated Standard | 125 V | Green | 25 mm | -20 ░C | 105 ░C | No Marking | Quick Connect - 0.250" (6.3mm) | Off-On | 16 A | Button Round | 125 VAC | DPST | Panel Mount Snap-In | Neon | Green | |
 E-Switch | 10000 Cycles | Illuminated Standard | 125 V | Green | 25 mm | -20 ░C | 105 ░C | No Marking | Quick Connect - 0.250" (6.3mm) | Off-On | 16 A | Button Round | 125 VAC | DPST | Panel Mount Snap-In | Neon | Green | |
 E-Switch | 10000 Cycles | Standard | 125 V | 25 mm | -20 ░C | 105 ░C | No Marking | Quick Connect - 0.250" (6.3mm) | Off-On | 16 A | Button Round | DPST | Panel Mount Snap-In | |||||
 E-Switch | 10000 Cycles | Illuminated Standard | Neon Red | 125 V | Red | 25 mm | -20 ░C | 105 ░C | No Marking | Quick Connect - 0.250" (6.3mm) | Off-On | 16 A | Button Round | 250 VAC | DPST | Panel Mount Snap-In | ||
 E-Switch | 10000 Cycles | Illuminated Standard | 125 V | Green | 25 mm | -20 ░C | 105 ░C | No Marking | Quick Connect - 0.250" (6.3mm) | Off-On | 16 A | Button Round | 125 VAC | DPST | Panel Mount Snap-In | Neon | Green |
