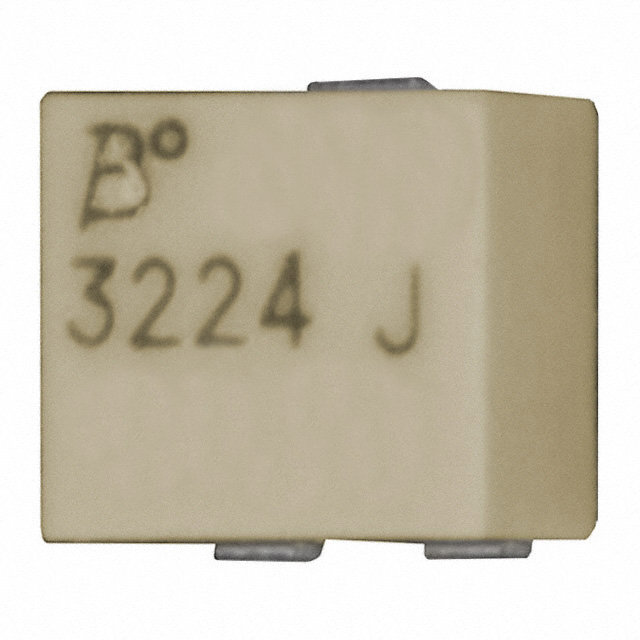

3224J Series

Catalog

TRIMMER, MULTI TURN, CERMET, SIDE ADJUST, 500 KOHM, SURFACE MOUNT, 12 TURNS

Part	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Termination Style	Resistive Material	Mounting Type	Temperature Coefficient	Power (Watts)	Power (Watts)	Number of Turns	Adjustment Type	Resistance
Bourns Inc. 3224J-1-504E	10 %	0.138 in 3.5 mm	0.181 in 4.6 mm	J Lead	Cermet	Surface Mount	100 ppm/°C	0.25 W	0.25 W	12	Side Adjustment
Bourns Inc. 3224J-1-501G	10 %	0.138 in 3.5 mm	0.181 in 4.6 mm	J Lead	Cermet	Surface Mount	100 ppm/°C	0.25 W	0.25 W	12	Side Adjustment	0.5 kOhms
Bourns Inc. 3224J-1-253E	10 %	0.138 in 3.5 mm	0.181 in 4.6 mm	J Lead	Cermet	Surface Mount	100 ppm/°C	0.25 W	0.25 W	12	Side Adjustment	25 kOhms
Bourns Inc. 3224J-1-203E	10 %	0.138 in 3.5 mm	0.181 in 4.6 mm	J Lead	Cermet	Surface Mount	100 ppm/°C	0.25 W	0.25 W	12	Side Adjustment	20 kOhms
Bourns Inc. 3224J-2-503E	10 %	0.138 in 3.5 mm	0.181 in 4.6 mm	J Lead	Cermet	Surface Mount	100 ppm/°C	0.25 W	0.25 W	12	Side Adjustment	50000 Ohms
Bourns Inc. 3224J-1-104G	10 %	0.138 in 3.5 mm	0.181 in 4.6 mm	J Lead	Cermet	Surface Mount	100 ppm/°C	0.25 W	0.25 W	12	Side Adjustment	100 kOhms
Bourns Inc. 3224J-1-503E	10 %	0.138 in 3.5 mm	0.181 in 4.6 mm	J Lead	Cermet	Surface Mount	100 ppm/°C	0.25 W	0.25 W	12	Side Adjustment	50000 Ohms
Bourns Inc. 3224J-1-503G	10 %	0.138 in 3.5 mm	0.181 in 4.6 mm	J Lead	Cermet	Surface Mount	100 ppm/°C	0.25 W	0.25 W	12	Side Adjustment	50000 Ohms
Bourns Inc. 3224J-2-103E	10 %	0.138 in 3.5 mm	0.181 in 4.6 mm	J Lead	Cermet	Surface Mount	100 ppm/°C	0.25 W	0.25 W	12	Side Adjustment	10000 Ohms
Bourns Inc. 3224J-1-200E	10 %	0.138 in 3.5 mm	0.181 in 4.6 mm	J Lead	Cermet	Surface Mount	100 ppm/°C	0.25 W	0.25 W	12	Side Adjustment	20 Ohms
