ISO7820LL Series

Dual-channel, 2/0, 100-Mbps, high-performance, reinforced isolated LVDS buffer

Catalog

Dual-channel, 2/0, 100-Mbps, high-performance, reinforced isolated LVDS buffer

Part	Operating Temperature [Min]	Operating Temperature [Max]	Data Rate	Mounting Type	Pulse Width Distortion (Max) [Max]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Type	Technology	Channel Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Common Mode Transient Immunity (Min) [Min]	Package / Case	Voltage - Isolation	Number of Channels [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Pulse Width Distortion (Max)	Utilized IC / Part	Supplied Contents	Primary Attributes	Function	Package / Case [x]	Package / Case [y]
Texas Instruments ISO7820LLDWW	-55 °C	125 °C	100 Mbps	Surface Mount	4.5 ns	2	0	LVDS	Capacitive Coupling	Unidirectional	5.5 V	2.25 V	16-SOIC	100 V/ns	16-SOIC	5700 Vrms	2	25 ns	25 ns	1.38 ns	1.38 ns
Texas Instruments ISO7820FDWW	-55 °C	125 °C	100 Mbps	Surface Mount		2	0	General Purpose	Capacitive Coupling	Unidirectional	5.5 V	2.25 V	16-SOIC	100 V/ns	16-SOIC	5700 Vrms	2	16 ns	16 ns			2.4 ns	2.4 ns	4.6 ns

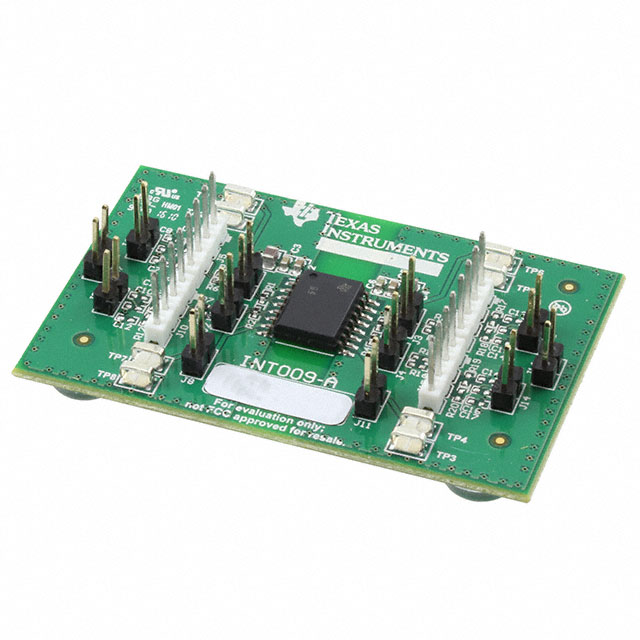

Texas Instruments ISO7820LLEVM								Interface																	ISO7820LL	Board(s)	2-Channel (Dual)	Digital Isolator
Texas Instruments ISO7820LLDWR	-55 °C	125 °C	100 Mbps	Surface Mount	4.5 ns	2	0	General Purpose	Capacitive Coupling	Unidirectional	5.5 V	2.25 V	16-SOIC	100 V/ns	16-SOIC	5700 Vrms	2	25 ns	25 ns										0.295 in	7.5 mm
Texas Instruments ISO7820FDW	-55 °C	125 °C	100 Mbps	Surface Mount		2	0	General Purpose	Capacitive Coupling	Unidirectional	5.5 V	2.25 V	16-SOIC	100 V/ns	16-SOIC	5700 Vrms	2	16 ns	16 ns			2.4 ns	2.4 ns	4.6 ns					0.295 in	7.5 mm
Texas Instruments ISO7820DW	-55 °C	125 °C	100 Mbps	Surface Mount		2	0	General Purpose	Capacitive Coupling	Unidirectional	5.5 V	2.25 V	16-SOIC	100 V/ns	16-SOIC	5700 Vrms	2	16 ns	16 ns			2.4 ns	2.4 ns	4.6 ns					0.295 in	7.5 mm
Texas Instruments ISO7820LLDW	-55 °C	125 °C	100 Mbps	Surface Mount	4.5 ns	2	0	General Purpose	Capacitive Coupling	Unidirectional	5.5 V	2.25 V	16-SOIC	100 V/ns	16-SOIC	5700 Vrms	2	25 ns	25 ns										0.295 in	7.5 mm
Texas Instruments ISO7820DWW	-55 °C	125 °C	100 Mbps	Surface Mount		2	0	General Purpose	Capacitive Coupling	Unidirectional	5.5 V	2.25 V	16-SOIC	100 V/ns	16-SOIC	5700 Vrms	2	16 ns	16 ns			2.4 ns	2.4 ns	4.6 ns
Texas Instruments ISO7820DWWR	-55 °C	125 °C	100 Mbps	Surface Mount		2	0	General Purpose	Capacitive Coupling	Unidirectional	5.5 V	2.25 V	16-SOIC	100 V/ns	16-SOIC	5700 Vrms	2	16 ns	16 ns			2.4 ns	2.4 ns	4.6 ns
Texas Instruments ISO7820LLDWWR	-55 °C	125 °C	100 Mbps	Surface Mount	4.5 ns	2	0	General Purpose	Capacitive Coupling	Unidirectional	5.5 V	2.25 V	16-SOIC	100 V/ns	16-SOIC	5700 Vrms	2	25 ns	25 ns

Catalog

Dual-channel, 2/0, 100-Mbps, high-performance, reinforced isolated LVDS buffer

Key Features

• Complies with TIA/EIA-644-A LVDS StandardSignaling Rate: Up to 100 MbpsWide Supply Range: 2.25 V to 5.5 VWide Temperature Range: –55°C to +125°C AmbientLow Power Consumption, per Channel at 100 Mbps:Typical 9.3-mA (ISO7820LL)Typical 9.5-mA (ISO7821LL)Low Propagation Delay: 17-ns TypicalIndustry leading CMTI (min): ±100 kV/μsRobust Electromagnetic Compatibility (EMC)System-Level ESD, EFT, and Surge ImmunityLow EmissionsIsolation Barrier Life: > 40 YearsWide Body and Extra-Wide Body SOIC-16 Package OptionsIsolation Surge Withstand Voltage 12800 VPKSafety-Related Certifications:8000-VPKReinforced Isolation per DIN V VDE V 0884-10 (VDE V 0884-10):2006-125700-VRMSIsolation for 1 minute per UL 1577CSA Component Acceptance Notice 5A, IEC 60950–1 and IEC 60601–1 End Equipment StandardsTUV Certification per EN 61010-1 and EN 60950-1GB4943.1-2011 CQC CertificationAll Certifications are PlannedAll trademarks are the property of their respective owners.Complies with TIA/EIA-644-A LVDS StandardSignaling Rate: Up to 100 MbpsWide Supply Range: 2.25 V to 5.5 VWide Temperature Range: –55°C to +125°C AmbientLow Power Consumption, per Channel at 100 Mbps:Typical 9.3-mA (ISO7820LL)Typical 9.5-mA (ISO7821LL)Low Propagation Delay: 17-ns TypicalIndustry leading CMTI (min): ±100 kV/μsRobust Electromagnetic Compatibility (EMC)System-Level ESD, EFT, and Surge ImmunityLow EmissionsIsolation Barrier Life: > 40 YearsWide Body and Extra-Wide Body SOIC-16 Package OptionsIsolation Surge Withstand Voltage 12800 VPKSafety-Related Certifications:8000-VPKReinforced Isolation per DIN V VDE V 0884-10 (VDE V 0884-10):2006-125700-VRMSIsolation for 1 minute per UL 1577CSA Component Acceptance Notice 5A, IEC 60950–1 and IEC 60601–1 End Equipment StandardsTUV Certification per EN 61010-1 and EN 60950-1GB4943.1-2011 CQC CertificationAll Certifications are PlannedAll trademarks are the property of their respective owners.

Description

The ISO7820 is a high-performance, dual-channel digital isolator with 8000 VPKisolation voltage. This device has reinforced isolation certifications according to VDE, CSA, CQC, and TUV. The isolator provides high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/O’s. Each isolation channel has a logic input and output buffer separated by silicon dioxide (SiO2) insulation barrier. ISO7820 has two forward channels and no reverse-direction channel. If the input power or signal is lost, default output is ‘high’ for the ISO7820 and ‘low’ for the ISO7820F device. Used in conjunction with isolated power supplies, this device prevents noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. Through innovative chip design and layout techniques, electromagnetic compatibility of ISO7820 has been significantly enhanced to ease system-level ESD, EFT, Surge and Emissions compliance. ISO7820 is available in 16-pin SOIC wide-body (DW) and extra-wide body (DWW) packages. The DWW package option comes with enable pins which can be used to put the respective outputs in high impedance for multi-master driving applications and to reduce power consumption. The ISO7820 is a high-performance, dual-channel digital isolator with 8000 VPKisolation voltage. This device has reinforced isolation certifications according to VDE, CSA, CQC, and TUV. The isolator provides high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/O’s. Each isolation channel has a logic input and output buffer separated by silicon dioxide (SiO2) insulation barrier. ISO7820 has two forward channels and no reverse-direction channel. If the input power or signal is lost, default output is ‘high’ for the ISO7820 and ‘low’ for the ISO7820F device. Used in conjunction with isolated power supplies, this device prevents noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. Through innovative chip design and layout techniques, electromagnetic compatibility of ISO7820 has been significantly enhanced to ease system-level ESD, EFT, Surge and Emissions compliance. ISO7820 is available in 16-pin SOIC wide-body (DW) and extra-wide body (DWW) packages. The DWW package option comes with enable pins which can be used to put the respective outputs in high impedance for multi-master driving applications and to reduce power consumption.
