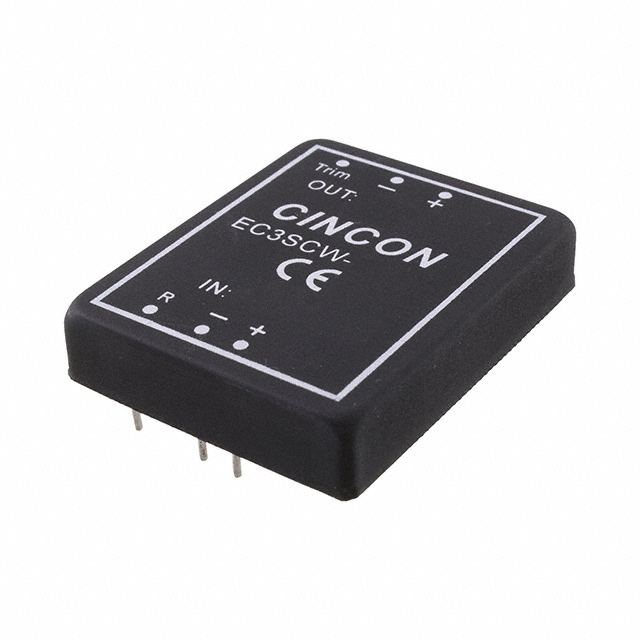

EC3SCW Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER 3.3V 25W

Part	Current - Output (Max) [Max]	Features	Applications	Efficiency	Power (Watts)	Voltage - Input (Max) [Max]	Type	Mounting Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Standard Number	Package / Case	Voltage - Input (Min) [Min]	Approval Agency	Control Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation
Cincon Electronics Co. LTD EC3SCW-48S3V3	7.5 A	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	88 %	25 W	75 V	Isolated Module	Through Hole	1	-40 °C	85 °C	3.3 V	60950-1	8-DIP Module 7 Leads	18 V	CE	Active High Enable	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV
Cincon Electronics Co. LTD EC3SCW-24S05N	6 A	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	89 %	30 Watts	36 V	Isolated Module	Through Hole	1	-40 °C	85 °C	5 V	60950-1	8-DIP Module 7 Leads	9 V	CE	Active Low Enable	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV
Cincon Electronics Co. LTD EC3SCW-48S15N	2 A	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	91 %	30 Watts	75 V	Isolated Module	Through Hole	1	-40 °C	85 °C	15 V	60950-1	8-DIP Module 7 Leads	18 V	CE	Active Low Enable	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV
Cincon Electronics Co. LTD EC3SCW-48S05	6 A	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	90 %	30 Watts	75 V	Isolated Module	Through Hole	1	-40 °C	85 °C	5 V	60950-1	8-DIP Module 7 Leads	18 V	CE	Active High Enable	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV
Cincon Electronics Co. LTD EC3SCW-48S12N	2.5 A	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	91 %	30 Watts	75 V	Isolated Module	Through Hole	1	-40 °C	85 °C	12 V	60950-1	8-DIP Module 7 Leads	18 V	CE	Active Low Enable	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV
Cincon Electronics Co. LTD EC3SCW-24S12	2.5 A	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	91 %	30 Watts	36 V	Isolated Module	Through Hole	1	-40 °C	85 °C	12 V	60950-1	8-DIP Module 7 Leads	9 V	CE	Active High Enable	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV
Cincon Electronics Co. LTD EC3SCW-24S05	6 A	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	89 %	30 Watts	36 V	Isolated Module	Through Hole	1	-40 °C	85 °C	5 V	60950-1	8-DIP Module 7 Leads	9 V	CE	Active High Enable	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV
Cincon Electronics Co. LTD EC3SCW-48S15	2 A	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	91 %	30 Watts	75 V	Isolated Module	Through Hole	1	-40 °C	85 °C	15 V	60950-1	8-DIP Module 7 Leads	18 V	CE	Active High Enable	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV
Cincon Electronics Co. LTD EC3SCW-48S3V3N	7.5 A	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	88 %	25 W	75 V	Isolated Module	Through Hole	1	-40 °C	85 °C	3.3 V	60950-1	8-DIP Module 7 Leads	18 V	CE	Active Low Enable	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV
Cincon Electronics Co. LTD EC3SCW-24S15	2 A	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	91 %	30 Watts	36 V	Isolated Module	Through Hole	1	-40 °C	85 °C	15 V	60950-1	8-DIP Module 7 Leads	9 V	CE	Active High Enable	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.5 kV
