CIM-9-50 Series
Manufacturer: Luminus Devices Inc.
Beta
⌘K

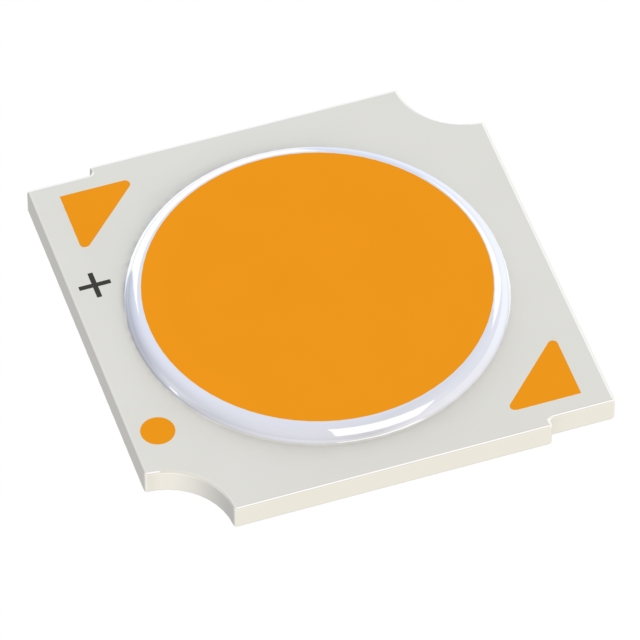

LED COB CIM9 GEN3 WHT SQU 5000K
| Part | Luminous Flux @ Current/Temperature | Current - Test | Current - Max [Max] | CRI (Color Rendering Index) | Light Emitting Surface (LES) [diameter] | CCT (K) | CCT (K) | Temperature - Test | Viewing Angle | Color | Type | Lumens/Watt @ Current - Test | Size / Dimension [y] | Size / Dimension [x] | Lens Type | Voltage - Forward (Vf) (Typ) | Configuration | Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Luminus Devices Inc. | 1030 lm | 360 mA | 340 mA | 70 | 9.6 mm | 5-Step MacAdam Ellipse | 5000 K | 85 °C | 120 ° | Cool White | Chip On Board (COB) | 84 lm/W | 13.5 mm | 13.5 mm | Flat | 33.8 V | Square | 1.37 mm |
Luminus Devices Inc. | 950 lm | 360 mA | 340 mA | 80 | 9.6 mm | 3-Step MacAdam Ellipse | 5000 K | 85 °C | 120 ° | Cool White | Chip On Board (COB) | 78 lm/W | 13.5 mm | 13.5 mm | Flat | 33.8 V | Square | 1.37 mm |
