HDSP-N1 Series
Manufacturer: Broadcom Limited
Catalog

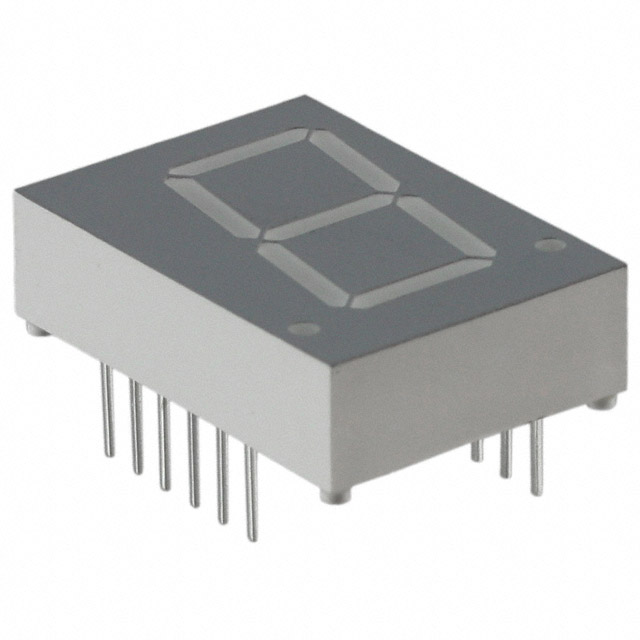

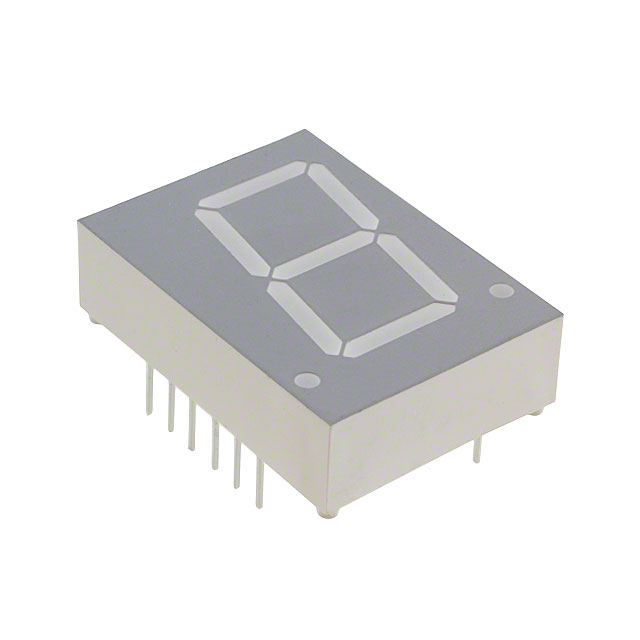

DISPLAY 7-SEG 0.8" SGL RED 18DIP
| Part | Color | Display Type | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Digit/Alpha Size | Digit/Alpha Size | Common Pin | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Number of Characters [custom] | Current - Test | Wavelength - Peak | Power Dissipation (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Red | 7-Segment | 14 mcd | 1.8 V | 20.32 mm | 0.8 in | Common Cathode | 0.33 in | 1.09 " | 0.786 in | 8.38 mm | 19.96 mm | 27.69 mm | 1 | 20 mA | 645 nm | 96 mW | 18-DIP (0.600" 15.24mm) 12 Leads |
Broadcom Limited | Red | 7-Segment | 14 mcd | 1.8 V | 20.32 mm | 0.8 in | Common Anode | 0.33 in | 1.09 " | 0.786 in | 8.38 mm | 19.96 mm | 27.69 mm | 1 | 20 mA | 645 nm | 96 mW | 18-DIP (0.600" 15.24mm) 12 Leads |
Broadcom Limited | Red | 7-Segment | 14 mcd | 1.8 V | 20.32 mm | 0.8 in | Common Anode | 0.33 in | 1.09 " | 0.786 in | 8.38 mm | 19.96 mm | 27.69 mm | 1 | 20 mA | 645 nm | 96 mW | 18-DIP (0.600" 15.24mm) 12 Leads |
 Broadcom Limited | Red | 7-Segment | 3.5 mcd | 1.7 V | 20.32 mm | 0.8 in | Common Cathode | 0.33 in | 1.09 " | 0.786 in | 8.38 mm | 19.96 mm | 27.69 mm | 1 | 5 mA | 645 nm | 37 mW | 18-DIP (0.600" 15.24mm) 12 Leads |
