NUL6X04 Series

Catalog

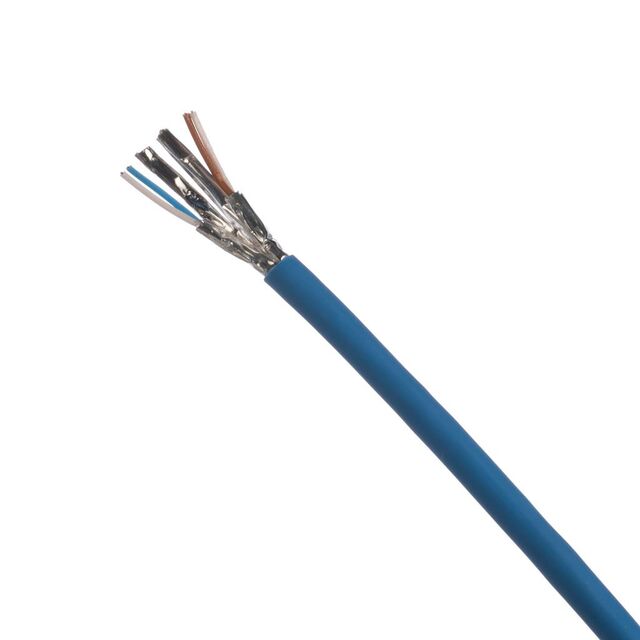

CABLE CAT6A 8CON 23AWG BLU 1000'

Part	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Voltage	Wire Gauge	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket Color	Conductor Strand	Number of Conductors	Jacket (Insulation) Material
Panduit Corp NUL6X04BU-VEG	Multi-Pair Cat6a	-20 ░C	60 °C	304.8 m	1000 ft	80 V	23 AWG	High Density Polyethylene (HDPE)	0.283 in	7.19 mm	Copper	Blue	Solid	8	Low Smoke Zero Halogen (LSZH)
Panduit Corp NUL6X04BU-HEG	Multi-Pair Cat6a	-20 ░C	60 °C	304.8 m	1000 ft	80 V	23 AWG	High Density Polyethylene (HDPE) Low Smoke Zero Halogen (LSZH)	0.283 in	7.19 mm	Copper	Blue	Solid	8	High Density Polyethylene (HDPE) Low Smoke Zero Halogen (LSZH)
Panduit Corp NUL6X04RD-HEG
Panduit Corp NUL6X04VL-VEG
Panduit Corp NUL6X04GR-HEG
Panduit Corp NUL6X04YL-VEG
Panduit Corp NUL6X04VL-HEG
Panduit Corp NUL6X04OR-VEG
Panduit Corp NUL6X04WH-VEG	Multi-Pair Cat6a	-20 ░C	60 °C	304.8 m	1000 ft	80 V	23 AWG	High Density Polyethylene (HDPE)	0.283 in	7.19 mm	Copper	White	Solid	8	Low Smoke Zero Halogen (LSZH)
Panduit Corp NUL6X04WH-HEG	Multi-Pair Cat6a	-20 ░C	60 °C	304.8 m	1000 ft	80 V	23 AWG	High Density Polyethylene (HDPE) Low Smoke Zero Halogen (LSZH)	0.283 in	7.19 mm	Copper	White	Solid	8	High Density Polyethylene (HDPE) Low Smoke Zero Halogen (LSZH)
