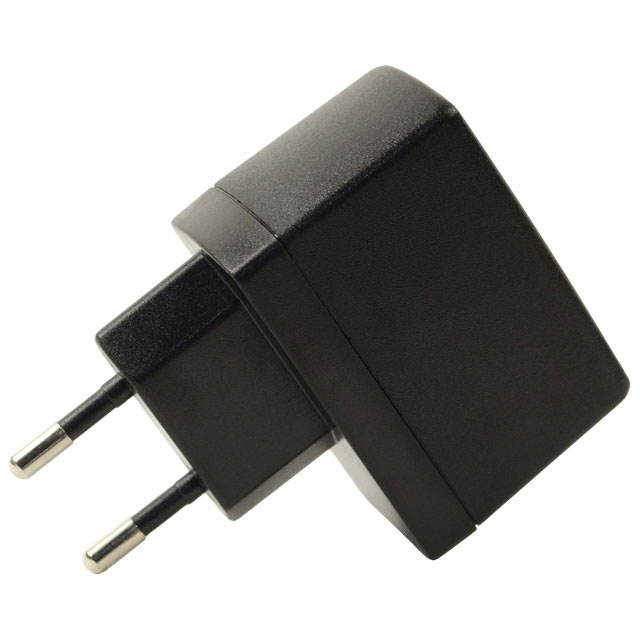

SWM6-5 Series

Manufacturer: CUI Inc.

Catalog

PLUG-IN ADAPTER SINGLE-OUT 5V 1.2A 6W

Part	Current - Output (Max) [Max]	Applications	No Load Power Consumption	Power (Watts)	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Input Type	Standard Number	Voltage - Output	Output Connector	Form	Input Connector	Region Utilized	Efficiency	Output Connector [diameter]	Output Connector [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Cord Length	Cord Length	Polarization	Size / Dimension [y]	Size / Dimension [z]	Output Connector [x]	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]
CUI Inc. SWM6-5-EV-I38	1.2 A	Medical	75 mW	6 W	40 °C	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE TUV UL	Fixed Blade	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	5 V	USB A Receptacle	Wall Mount	CEE 7/16	Europe	CoC Tier 2 Level VI
CUI Inc. SWM6-5-NH-P6R	1.2 A	Medical	100 mW	6 W	40 °C	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	Fixed Blade	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	5 V	Barrel Plug R/A	Wall Mount	NEMA 1-15P	North America	Level VI	2.5 mm 5.5 mm	9.5 mm	25 mm	2.17 "	36.7 mm	0.98 in	1.44 in	55 mm	1.5 m	59 in	Positive Center
CUI Inc. SWM6-5-EH-I38	1.2 A	Medical	75 mW	6 W	40 °C	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE TUV UL	Fixed Blade	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	5 V	USB A Receptacle	Wall Mount	CEE 7/16	Europe	CoC Tier 2 Level VI									1.5 m	59 in
CUI Inc. SWM6-5-EV-P6R	1.2 A	Medical	75 mW	6 W	40 °C	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE TUV UL	Fixed Blade	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	5 V	Barrel Plug R/A	Wall Mount	CEE 7/16	Europe	CoC Tier 2 Level VI	2.5 mm 5.5 mm	9.5 mm		2.11 "		1.62 in	1.11 in	53.5 mm	1.5 m	59 in	Positive Center	41.2 mm	28.2 mm
CUI Inc. SWM6-5-NH-MUB	1.2 A	Medical	100 mW	6 W	40 °C	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	Fixed Blade	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	5 V	USB Micro	Wall Mount	NEMA 1-15P	North America	Level VI			25 mm	2.17 "	36.7 mm	0.98 in	1.44 in	55 mm	1.5 m	59 in
CUI Inc. SWM6-5-EV-P6	1.2 A	Medical	75 mW	6 W	40 °C	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE TUV UL	Fixed Blade	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	5 V	Barrel Plug	Wall Mount	CEE 7/16	Europe	CoC Tier 2 Level VI	2.5 mm 5.5 mm			2.11 "		1.62 in	1.11 in	53.5 mm	1.5 m	59 in	Positive Center	41.2 mm	28.2 mm	9.5 mm
CUI Inc. SWM6-5-EV-P5R	1.2 A	Medical	75 mW	6 W	40 °C	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE TUV UL	Fixed Blade	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	5 V	Barrel Plug R/A	Wall Mount	CEE 7/16	Europe	CoC Tier 2 Level VI				2.11 "		1.62 in	1.11 in	53.5 mm	1.5 m	59 in	Positive Center	41.2 mm	28.2 mm		9.5 mm	5.5 mm	2.1 mm
CUI Inc. SWM6-5-NH-P6	1.2 A	Medical	100 mW	6 W	40 °C	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE UL	Fixed Blade	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	5 V	Barrel Plug	Wall Mount	NEMA 1-15P	North America	Level VI	2.5 mm 5.5 mm		25 mm	2.17 "	36.7 mm	0.98 in	1.44 in	55 mm	1.5 m	59 in	Positive Center			9.5 mm
CUI Inc. SWM6-5-EV-MUB	1.2 A	Medical	75 mW	6 W	40 °C	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE TUV UL	Fixed Blade	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	5 V	USB Micro	Wall Mount	CEE 7/16	Europe	CoC Tier 2 Level VI				2.11 "		1.62 in	1.11 in	53.5 mm	1.5 m	59 in		41.2 mm	28.2 mm
CUI Inc. SWM6-5-EH-P6R	1.2 A	Medical	75 mW	6 W	40 °C	264 VAC	90 VAC	CB Scheme CSA EN FCC IEC PSE TUV UL	Fixed Blade	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	5 V	Barrel Plug R/A	Wall Mount	CEE 7/16	Europe	CoC Tier 2 Level VI	2.5 mm 5.5 mm	9.5 mm	25 mm	2.17 "	36.7 mm	0.98 in	1.44 in	55 mm	1.5 m	59 in	Positive Center
