837-010 Series
Manufacturer: EDAC Inc.
Beta
⌘K

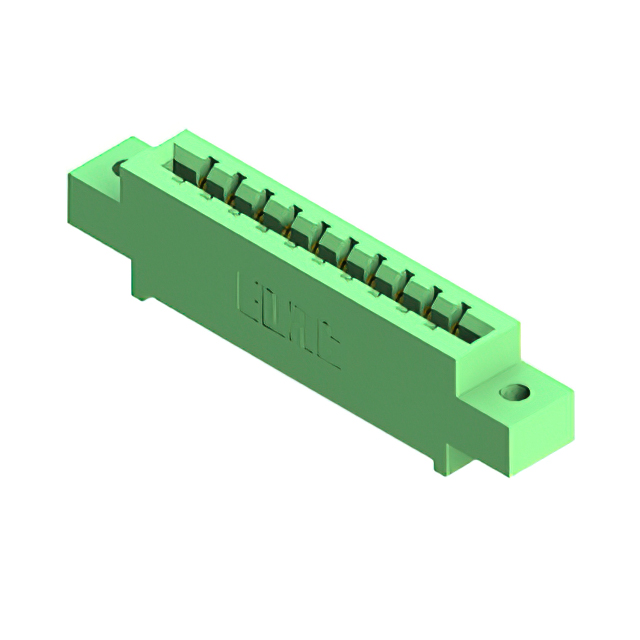

CONN EDGE SGL FMALE 10POS 0.156
| Part | Termination Rows | Material - Insulation | Termination | Contact Finish | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows | Card Type | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Read Out | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Mounting Type | Color | Contact Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Wire Wrap | Gold | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 1 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 125 °C | -40 C | Female | Through Hole | Green | Copper Alloy | 10 |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Wire Wrap | Gold | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 1 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 125 °C | -40 C | Female | Through Hole | Green | Copper Alloy | 10 |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Solder | Gold | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 1 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 125 °C | -40 C | Female | Through Hole | Green | Copper Alloy | 10 |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Solder | Gold | 4-40 Threaded Insert Top Mount Opening | 1 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 125 °C | -40 C | Female | Through Hole | Green | Copper Alloy | 10 | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Solder | Gold | 0.156 " | 3.96 mm | 1 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 125 °C | -40 C | Female | Through Hole | Green | Copper Alloy | 10 | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Wire Wrap | Gold | Flush Mount M3 Threaded Insert Top Opening | 1 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 125 °C | -40 C | Female | Through Hole | Green | Copper Alloy | 10 | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Solder Eyelet(s) | Gold | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 1 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 125 °C | -40 C | Female | Through Hole | Green | Copper Alloy | 10 |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Solder | Gold | 0.128 " | 3.25 mm | 1 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 125 °C | -40 C | Female | Through Hole | Green | Copper Alloy | 10 | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Solder Eyelet(s) | Gold | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 1 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 125 °C | -40 C | Female | Through Hole | Green | Copper Alloy | 10 |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Wire Wrap | Gold | 0.128 " | 3.25 mm | 1 | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 10 | 125 °C | -40 C | Female | Through Hole | Green | Copper Alloy | 10 |
