277143 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

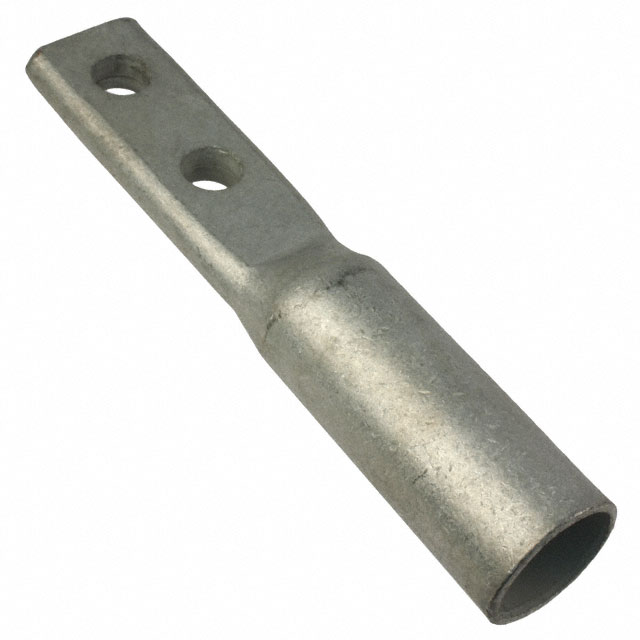

CONN TERM RECT 4/0 AWG #5/16
| Part | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Length - Overall [x] | Length - Overall [x] | Insulation | Mounting Type | Contact Finish | Terminal Style | Contact Material | Terminal Type | Stud/Tab Size | Width - Outer Edges | Width - Outer Edges | Tab Thickness | Tab Thickness | Termination | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 8.33 mm | 0.328 in | 4.24 in | 107.7 mm | Non-Insulated | Free Hanging (In-Line) | Tin | Two Stud Holes | Copper | Standard | 0.3125 Stud | 21.08 mm | 0.83 in | 7.11 mm | 0.28 in | Barrel Crimp | 20.83 mm | 0.82 in | 16.46 mm | 0.648 in | 4 aught AWG |
