YB25CK Series

Catalog

SWITCH PUSHBUTTON DPDT 3A 125V

Part	Electrical Life	Mechanical Life	Illumination Type, Color	Current Rating (Amps)	Switch Function	Type	Color - Actuator/Cap	Circuit	Voltage Rating - AC	Illumination Voltage (Nominal)	Voltage Rating - DC	Features	Actuator Marking	Mounting Type	Termination Style	Actuator Type	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches YB25CKW01-1C05-JA	100000 Cycles	1000000 Cycles	LED Red	3 A	On-Mom	Illuminated Standard	Clear	DPDT	125 V	5 VDC	30 V	Voltage Reduction Lighting	No Marking	Panel Mount Front	Solder Quick Connect - 0.110" (2.8mm)	Button Round	16 mm	50 °C	-25 °C
NKK Switches YB25CKW01-5D24-JD	100000 Cycles	1000000 Cycles	Amber LED	3 A	On-Mom	Illuminated Standard	Clear	DPDT	125 V	24 V	30 V	Voltage Reduction Lighting	No Marking	Panel Mount Front	Solder Quick Connect - 0.110" (2.8mm)	Button Round	16 mm	50 °C	-25 °C
NKK Switches YB25CKG01-5C-JC	100000 Cycles	1000000 Cycles	LED Red	0.4 VA	On-Mom	Illuminated Standard	Clear	DPDT	28 V	1.9 VDC	28 V	Tactile/Audible Feedback	No Marking	Panel Mount Front	Solder Quick Connect - 0.110" (2.8mm)	Button Round	16 mm	50 °C	-25 °C
NKK Switches YB25CKG01-5F24-JF	100000 Cycles	1000000 Cycles	Green LED	0.4 VA	On-Mom	Illuminated Standard	Clear	DPDT	28 V	24 V	28 V	Tactile/Audible Feedback	No Marking	Panel Mount Front	Solder Quick Connect - 0.110" (2.8mm)	Button Round	16 mm	50 °C	-25 °C

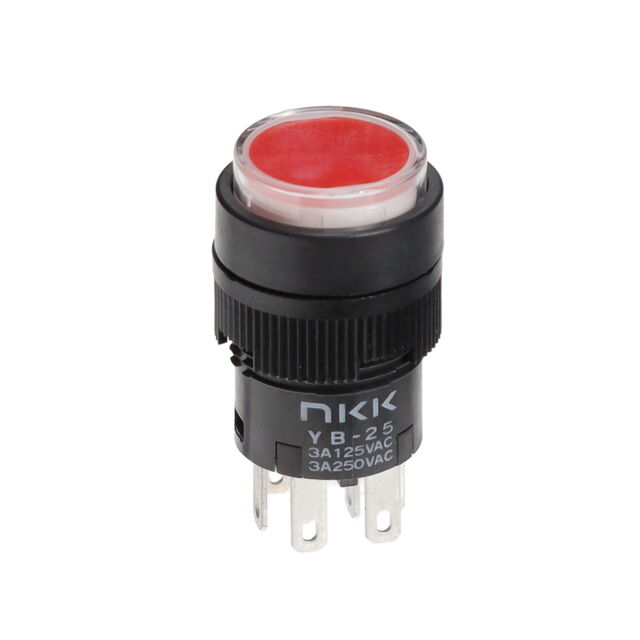

NKK Switches YB25CKW01-5C-JC	100000 Cycles	1000000 Cycles	LED Red	3 A	On-Mom	Illuminated Standard	Clear	DPDT	125 V	1.9 VDC	30 V	Voltage Reduction Lighting	No Marking	Panel Mount Front	Solder Quick Connect - 0.110" (2.8mm)	Button Round	16 mm	50 °C	-25 °C

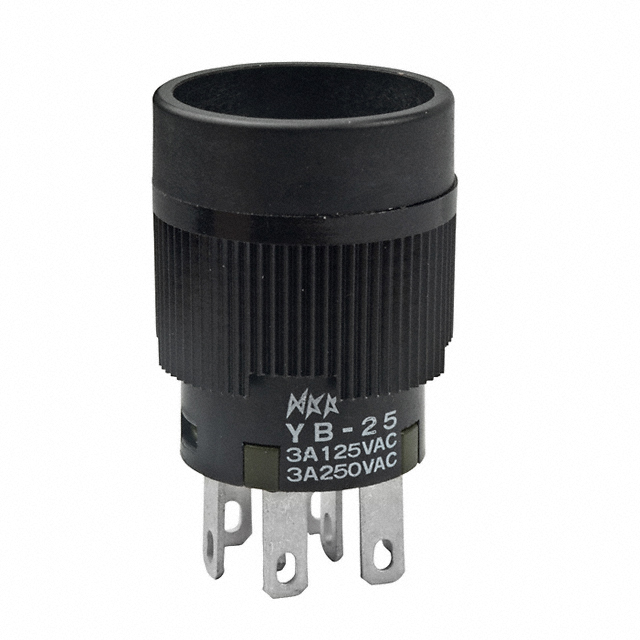

NKK Switches YB25CKW01	100000 Cycles	1000000 Cycles		3 A	On-Mom	Standard		DPDT	125 V		30 V	Tactile/Audible Feedback	No Marking	Panel Mount Front	Solder Quick Connect - 0.110" (2.8mm)	Plunger for Cap	16 mm	70 °C	-25 °C

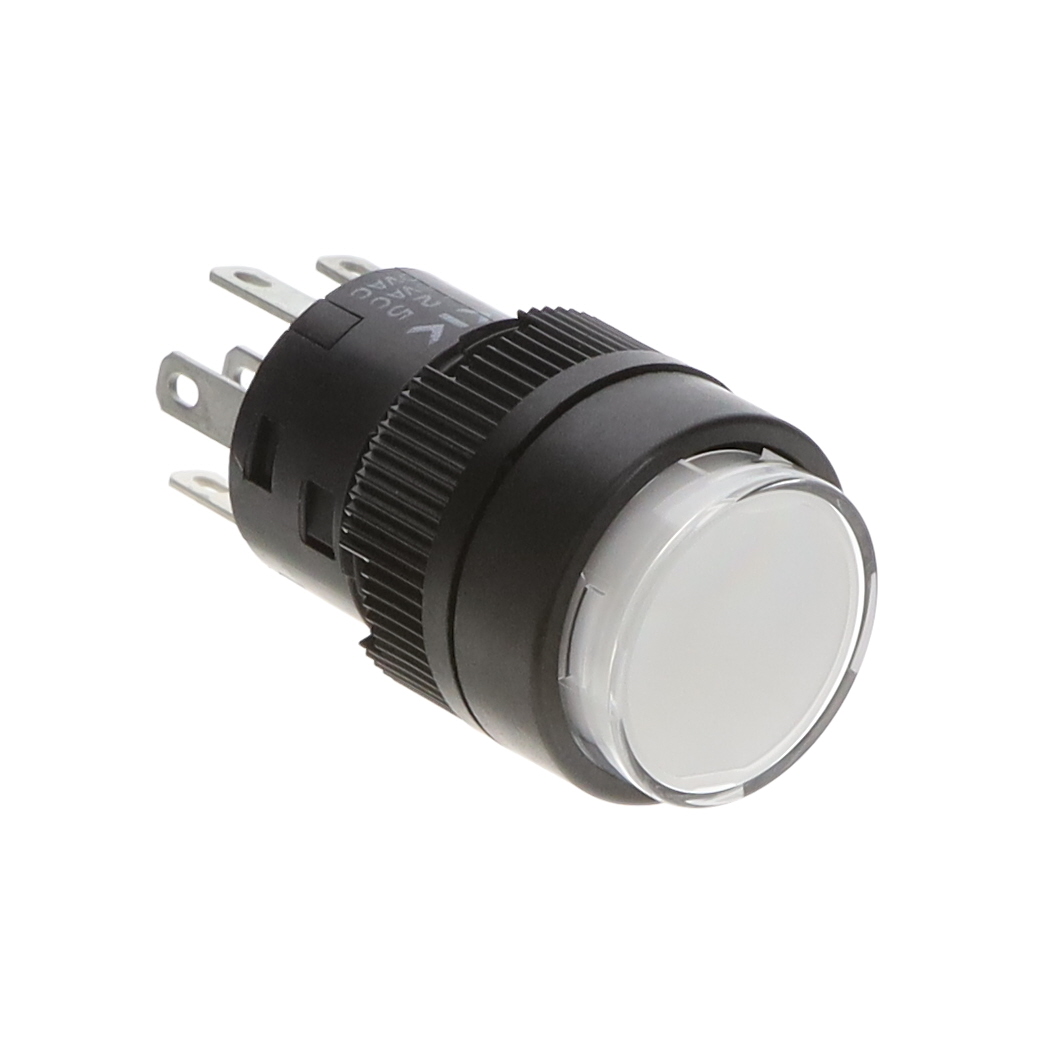

NKK Switches YB25CKW01-5F24-JB	100000 Cycles	1000000 Cycles	Green LED	3 A	On-Mom	Illuminated Standard	Clear	DPDT	125 V	24 V	30 V	Voltage Reduction Lighting	No Marking	Panel Mount Front	Solder Quick Connect - 0.110" (2.8mm)	Button Round	16 mm	50 °C	-25 °C
NKK Switches YB25CKW01-6G-JB	100000 Cycles	1000000 Cycles	Blue LED	3 A	On-Mom	Illuminated Standard	Clear	DPDT	125 V	3.6 VDC	30 V	Voltage Reduction Lighting	No Marking	Panel Mount Front	Solder Quick Connect - 0.110" (2.8mm)	Button Round	16 mm	50 °C	-25 °C
NKK Switches YB25CKW01-5C12-JB	100000 Cycles	1000000 Cycles	LED Red	3 A	On-Mom	Illuminated Standard	Clear	DPDT	125 V	12 VDC	30 V			Panel Mount Front	Solder Quick Connect - 0.110" (2.8mm)	Button Round	16 mm	50 °C	-25 °C
NKK Switches YB25CKW01-2CF12-JB	100000 Cycles	1000000 Cycles	Green/Red LED	3 A	On-Mom	Illuminated Standard	Clear	DPDT	125 V	12 VDC	30 V	Voltage Reduction Lighting	No Marking	Panel Mount Front	Solder Quick Connect - 0.110" (2.8mm)	Button Round	16 mm	50 °C	-25 °C
