9902 Series
Manufacturer: Belden Inc.
Beta
⌘K

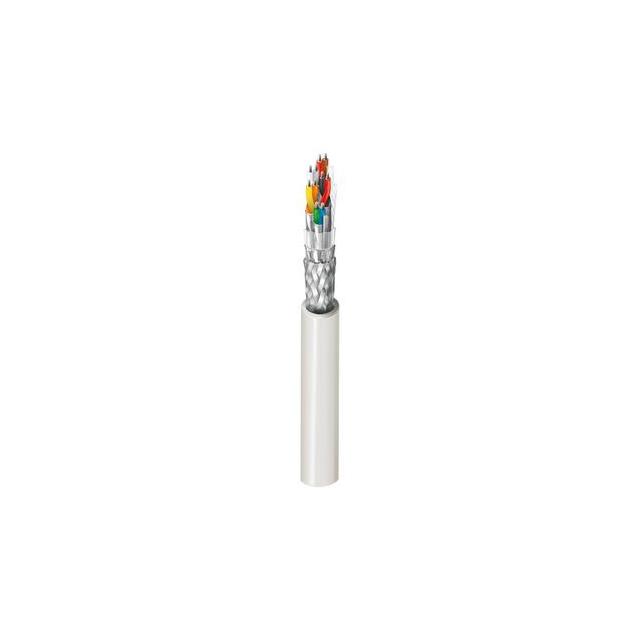

MULTI-PAIR 10CON 20AWG GRY
| Part | Shield Coverage | Shield Material | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Features | Length | Length | Ratings | Cable Type | Shield Type | Jacket (Insulation) Material | Conductor Insulation | Jacket Color | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 95 % 100 % | Aluminum Copper Tinned | 10 | 12.57 mm | 0.495 in | 80 °C | -20 ░C | 1.016 mm | 0.04 in | 28 AWG | 7 | 20 AWG | Drain Wire | 304.8 m | 1000 ft | UL Style 2919 | Multi-Pair | Braid Foil | Poly-Vinyl Chloride (PVC) | Foam High Density Polyethylene (FHDPE) | Gray | Copper Tinned |
Belden Inc. | 95 % 100 % | Aluminum Copper Tinned | 10 | 12.57 mm | 0.495 in | 80 °C | -20 ░C | 1.016 mm | 0.04 in | 28 AWG | 7 | 20 AWG | Drain Wire | 152.4 m | 500 ft | UL Style 2919 | Multi-Pair | Braid Foil | Poly-Vinyl Chloride (PVC) | Foam High Density Polyethylene (FHDPE) | Gray | Copper Tinned |
