1888290 Series

Catalog

CONN RCPT 16POS 0.1 TIN PCB R/A

Part	Contact Material	Contact Type	Termination	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Connector Type	Number of Positions	Contact Shape	Fastening Type	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Mounting Type	Number of Positions

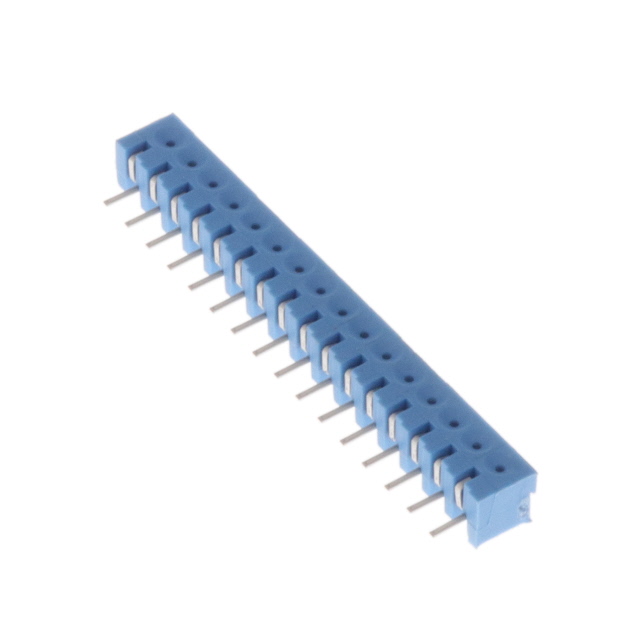

TE Connectivity Raychem Cable Protection 1888290-6	Copper Alloy	Female Socket	Solder	4.83 mm	0.19 in	2.54 µm	100 µin	Tin	1	0.1 in	2.54 mm	All	Receptacle	16	Circular	Latch Lock	2.54 mm	0.1 in	Blue	2.54 çm	100 çin	Polyester Glass Filled	Through Hole Right Angle
TE Connectivity Raychem Cable Protection 1888290-5	Copper Alloy	Female Socket	Solder	4.83 mm	0.19 in	2.54 µm	100 µin	Tin	1	0.1 in	2.54 mm	All	Receptacle		Circular	Latch Lock	2.54 mm	0.1 in	Blue	2.54 çm	100 çin	Polyester Glass Filled	Through Hole Right Angle	14
TE Connectivity Raychem Cable Protection 1888290-1	Copper Alloy	Female Socket	Solder	4.83 mm	0.19 in	2.54 µm	100 µin	Tin	1	0.1 in	2.54 mm	All	Receptacle		Circular	Latch Lock	2.54 mm	0.1 in	Blue	2.54 çm	100 çin	Polyester Glass Filled	Through Hole Right Angle	8
