3922-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC 0.030DIA GOLD
| Part | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Terminal Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Contact Finish Thickness | Contact Finish Thickness | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Termination | Insulation | Contact Material | Terminal Style | Length - Above Flange [x] | Length - Above Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

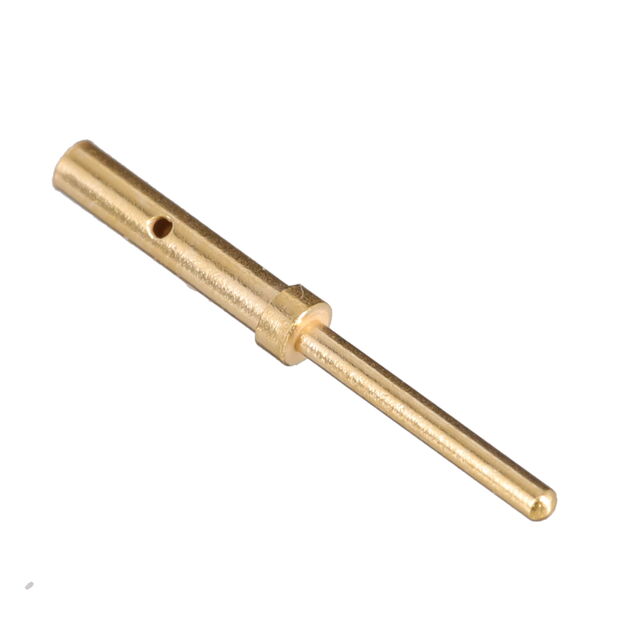

 Mill-Max Manufacturing Corp. | 5.94 mm | 0.234 " | Free Hanging (In-Line) | PC Pin | 0.03 in | 0.76 mm | 0.25 Ám | 10 Áin | 0.047 in | 1.19 mm | Gold | 0.061 in | 1.55 mm | 0.532 in | 13.51 mm | Crimp | Non-Insulated | Brass Alloy | Wire | 6.78 mm | 0.267 in |

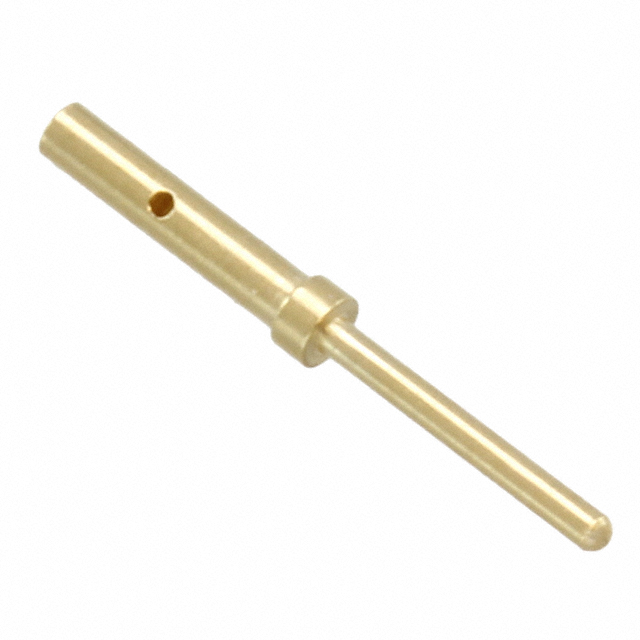

 Mill-Max Manufacturing Corp. | 5.94 mm | 0.234 " | Free Hanging (In-Line) | PC Pin | 0.03 in | 0.76 mm | 1.27 µm | 50 µin | 0.047 in | 1.19 mm | Gold | 0.061 in | 1.55 mm | 0.532 in | 13.51 mm | Crimp | Non-Insulated | Brass Alloy | Wire | 6.78 mm | 0.267 in |
