ME30A1803 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

AC/DC WALL MOUNT ADAPTER 18V 30W

Part	Approval Agency	Input Type	No Load Power Consumption	Cord Length	Cord Length	Voltage - Output	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Applications	Form	Output Connector [diameter]	Output Connector [x]	Output Connector	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Input Connector	Polarization	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]

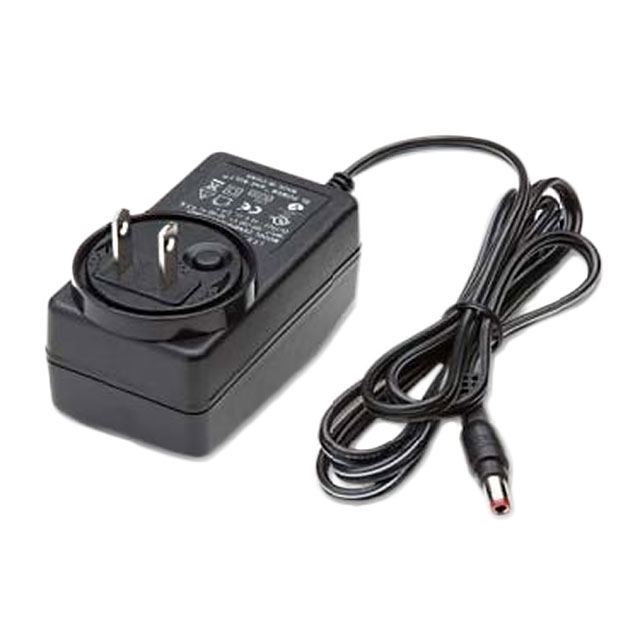

SL POWER / Advanced Energy ME30A1803C01	CE	Fixed Blade	100 mW	57 in	1.45 m	18 V	1.67 A	3.78 in	2.17 "	96 mm	1.32 in	33.6 mm	55 mm	30 Watts	Medical	Wall Mount	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	-20 ░C	50 °C	Level VI	264 VAC	90 VAC	North America	NEMA 1-15P	Positive Center

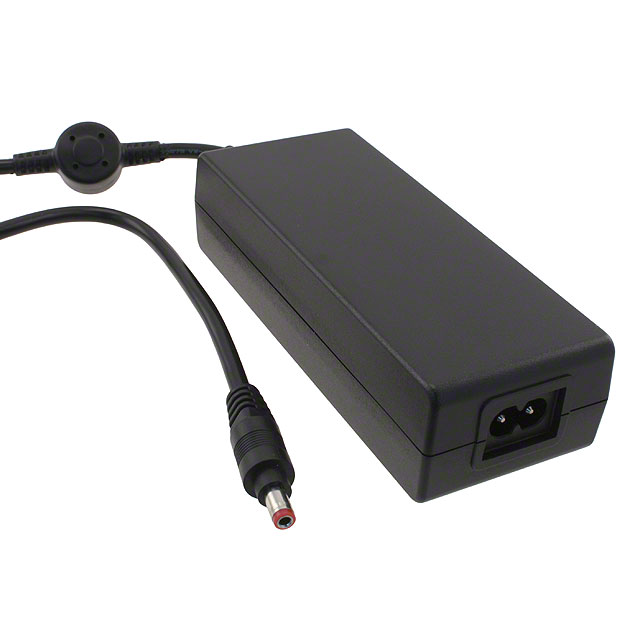

SL POWER / Advanced Energy ME30A1803N01	CE	Cord (Sold Separately)	100 mW	57 in	1.45 m	18 V	1.67 A			3.76 in		1.22 in	2.13 in	30 Watts	Medical	Desktop (Class II)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	-20 ░C	50 °C	Level VI	264 VAC	90 VAC	International	IEC 320-C8	Positive Center	95.5 mm	54 mm	31 mm
SL POWER / Advanced Energy ME30A1803B01	CE	Fixed Blade Multi-Blade	100 mW	57 in	1.45 m	18 V	1.67 A	3.78 in	2.17 "	96 mm	1.32 in	33.6 mm	55 mm	30 Watts	Medical	Wall Mount	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	-20 ░C	50 °C	Level VI	264 VAC	90 VAC	North America	NEMA 1-15P Multi-Blade	Positive Center
SL POWER / Advanced Energy ME30A1803Q01	CE	Cord (Sold Separately)	100 mW	57 in	1.45 m	18 V	1.67 A			3.76 in		1.22 in	2.13 in	30 Watts	Medical	Desktop (Class II)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	-20 ░C	70 °C	Level VI	264 VAC	90 VAC	International	IEC 320-C18	Positive Center	95.5 mm	54 mm	31 mm
SL POWER / Advanced Energy ME30A1803F01	CE	Cord (Sold Separately)	100 mW	57 in	1.45 m	18 V	1.67 A			3.76 in		1.22 in	2.13 in	30 Watts	Medical	Desktop (Class I)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	-20 ░C	50 °C	Level VI	264 VAC	90 VAC	International	IEC 320-C14	Positive Center	95.5 mm	54 mm	31 mm
