GH1LFC-P Series
Manufacturer: ODU
Beta
⌘K

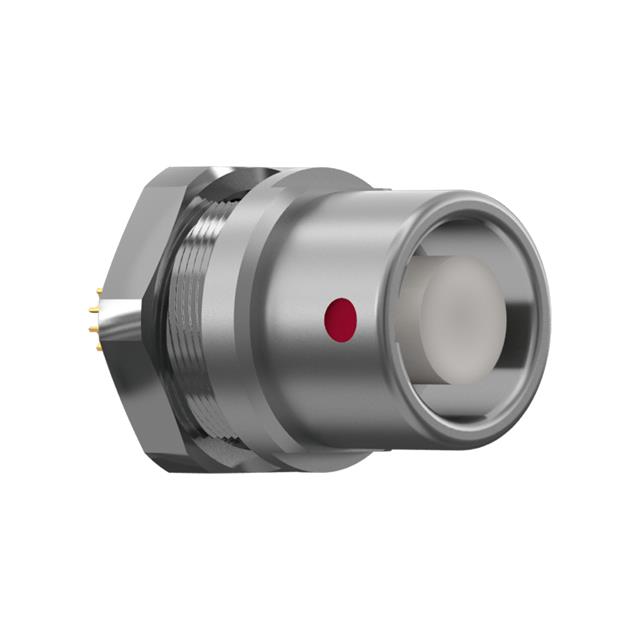

ODU MINI-SNAP RECEPT, STY H, SZ
| Part | Termination | Contact Finish - Mating | Number of Positions | Shell Material | Voltage Rating | Contact Material | Shielding | Features | Mounting Feature | Primary Material | Ingress Protection | Shell Size - Insert | Applications | Mounting Type | Fastening Type | Insert Material | Current Rating (Amps) | Shell Finish | Connector Type | Color | Operating Temperature [Max] | Operating Temperature [Min] | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Crimp | Gold | 4 | Brass | 333 V | Brass | Unshielded | Ground | Bulkhead - Rear Side Nut | Metal | IP50 - Dust Protected | 1 | Industrial Medical Military Testing Equipment & Measurement | Panel Mount | Push-Pull | Polyetheretherketone (PEEK) | 10 A | Chrome over Nickel | Receptacle Female Sockets | Silver | 120 °C | -40 C | F |
