Relay Sockets & Hardware SQ DIN/Pnl Mt 5 Pin Socket for
Relay Sockets & Hardware SQ DIN/Pnl Mt 5 Pin Socket for
| Part | Accessory Type | For Use With/Related Products | Number of Positions | Mounting Type | Type | Termination Style | Approval Agency | Relay Type | Coil Voltage | Must Release Voltage | Release Time | Must Operate Voltage | Contact Rating (Current) | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Operate Time | Coil Current | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | Jumper | RQ Series | ||||||||||||||||||

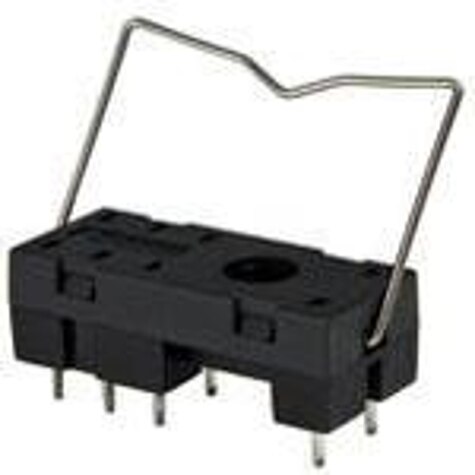

 IDEC | RQ Series | 8 | Through Hole | Socket | PC Pin | |||||||||||||||
 IDEC | Through Hole | PC Pin | CE cURus TUV | General Purpose | 12 VDC | 0.6 VDC | 8 ms | 9.6 VDC | 16 A | SPDT (1 Form C) | 85 °C | -40 C | Non Latching | 12 ms | 33.3 mA | Silver Nickel (AgNi) | ||||
 IDEC | RQ Series | 5 | DIN Rail | Socket | Screw Terminal |
