AR 24-HZ Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN IC DIP SOCKET 24POS GOLD
| Part | Contact Resistance | Current Rating (Amps) | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Housing Material | Pitch - Post | Pitch - Post | Contact Finish - Post | Contact Finish - Mating | Contact Material - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Type | Type | Type | Contact Material - Post | Features | Termination | Mounting Type | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Type [custom] | Type [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

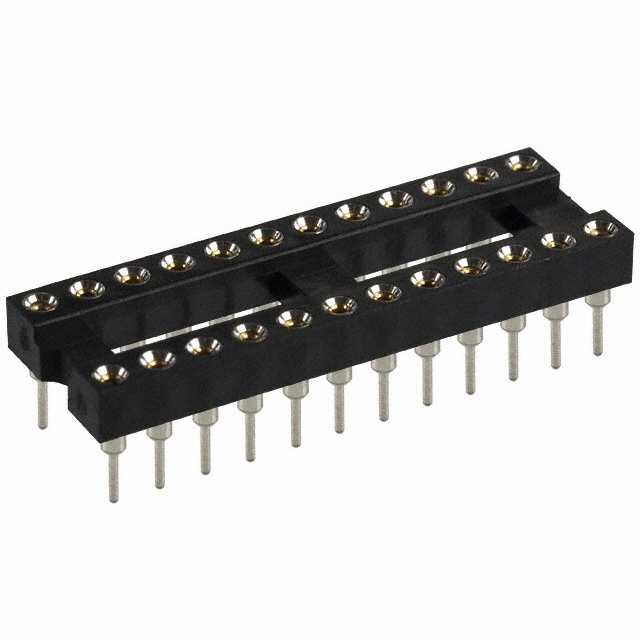

 Assmann WSW Components | 4 mOhm | 3 A | UL94 V-0 | -40 C | 105 ░C | 200 µin | 5.08 µm | 0.1 " | 2.54 mm | Polyester Thermoplastic | 0.1 in | 2.54 mm | Tin | Gold | Beryllium Copper | 0.25 µm | 10 µin | 7.62 mm | 0.3 in | DIP | Beryllium Copper | Open Frame | Solder | Through Hole | 12 | 2 | 24 | ||

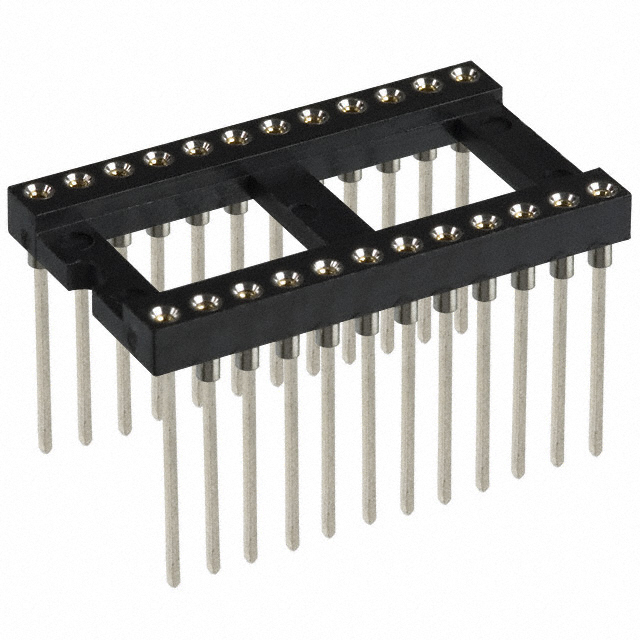

 Assmann WSW Components | 4 mOhm | 3 A | UL94 V-0 | -40 C | 105 ░C | 200 µin | 5.08 µm | 0.1 " | 2.54 mm | Polyester Thermoplastic | 0.1 in | 2.54 mm | Tin | Gold | Beryllium Copper | DIP | Beryllium Copper | Open Frame | Wire Wrap | Through Hole | 12 | 2 | 24 | 15.24 mm | 0.6 in |
