68459 Series

Catalog

BERGSTIK II .100CC DR ST RAIGHT

Part	Contact Type	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Material	Material Flammability Rating	Voltage Rating	Shrouding	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Insulation Height	Insulation Height	Termination	Insulation Color	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Connector Type	Contact Finish - Mating

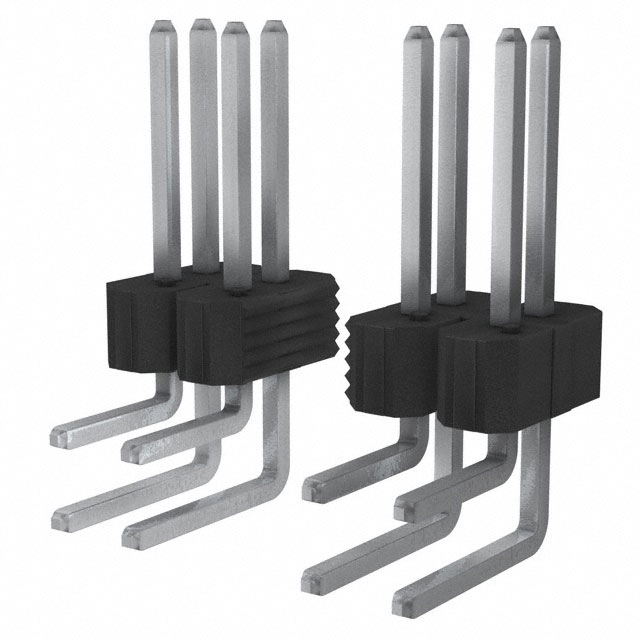

Amphenol ICC (FCI) 68459-438HLF	Male Pin	All	0.318 "	8.08 mm	Phosphor Bronze	UL94 V-0	110 VDC	Unshrouded	Through Hole Right Angle	2.54 mm	0.1 in	2	4.83 mm	0.19 in	Solder	Black	Push-Pull	0.1 in	2.54 mm	38	0.15 in	3.81 mm	5 A	Square	2.54 çm	100 çin	Tin	Header

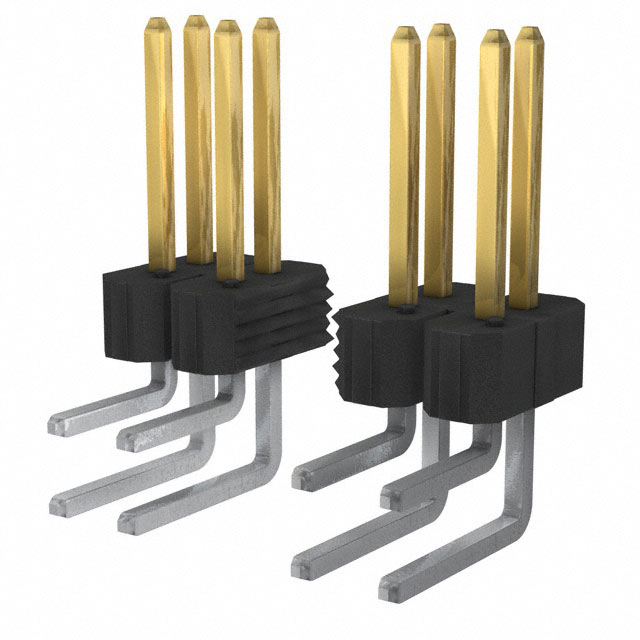

Amphenol ICC (FCI) 68459-152HLF	Male Pin	All	0.318 "	8.08 mm	Phosphor Bronze	UL94 V-0	110 VDC	Unshrouded	Through Hole Right Angle	2.54 mm	0.1 in	2	4.83 mm	0.19 in	Solder	Black	Push-Pull	0.1 in	2.54 mm	52	0.15 in	3.81 mm	5 A	Square	0.76 Ám	30 Áin		Header	Gold or Gold GXT™
Amphenol ICC (FCI) 68459-402HLF	Male Pin	All	0.318 "	8.08 mm	Phosphor Bronze	UL94 V-0	110 VDC	Unshrouded	Through Hole Right Angle	2.54 mm	0.1 in	2	4.83 mm	0.19 in	Solder	Black	Push-Pull			2	0.15 in	3.81 mm	5 A	Square	2.54 çm	100 çin	Tin	Header
Amphenol ICC (FCI) 68459-128HLF	Male Pin	All	0.318 "	8.08 mm	Phosphor Bronze	UL94 V-0	110 VDC	Unshrouded	Through Hole Right Angle	2.54 mm	0.1 in	2	4.83 mm	0.19 in	Solder	Black	Push-Pull	0.1 in	2.54 mm	28	0.15 in	3.81 mm	5 A	Square	0.76 Ám	30 Áin		Header	Gold or Gold GXT™
Amphenol ICC (FCI) 68459-122HLF	Male Pin	All	0.318 "	8.08 mm	Phosphor Bronze	UL94 V-0	110 VDC	Unshrouded	Through Hole Right Angle	2.54 mm	0.1 in	2	4.83 mm	0.19 in	Solder	Black	Push-Pull	0.1 in	2.54 mm	22 positions	0.15 in	3.81 mm	5 A	Square	0.76 Ám	30 Áin		Header	Gold or Gold GXT™
Amphenol ICC (FCI) 68459-124HLF	Male Pin	All	0.318 "	8.08 mm	Phosphor Bronze	UL94 V-0	110 VDC	Unshrouded	Through Hole Right Angle	2.54 mm	0.1 in	2	4.83 mm	0.19 in	Solder	Black	Push-Pull	0.1 in	2.54 mm	24	0.15 in	3.81 mm	5 A	Square	0.76 Ám	30 Áin		Header	Gold or Gold GXT™
Amphenol ICC (FCI) 68459-142HLF	Male Pin	All	0.318 "	8.08 mm	Phosphor Bronze	UL94 V-0	110 VDC	Unshrouded	Through Hole Right Angle	2.54 mm	0.1 in	2	4.83 mm	0.19 in	Solder	Black	Push-Pull	0.1 in	2.54 mm	42	0.15 in	3.81 mm	5 A	Square	0.76 Ám	30 Áin		Header	Gold or Gold GXT™
Amphenol ICC (FCI) 68459-442HLF	Male Pin	All	0.318 "	8.08 mm	Phosphor Bronze	UL94 V-0	110 VDC	Unshrouded	Through Hole Right Angle	2.54 mm	0.1 in	2	4.83 mm	0.19 in	Solder	Black	Push-Pull	0.1 in	2.54 mm	42	0.15 in	3.81 mm	5 A	Square	2.54 çm	100 çin	Tin	Header
Amphenol ICC (FCI) 68459-472HLF	Male Pin	All	0.318 "	8.08 mm	Phosphor Bronze	UL94 V-0	110 VDC	Unshrouded	Through Hole Right Angle	2.54 mm	0.1 in	2	4.83 mm	0.19 in	Solder	Black	Push-Pull	0.1 in	2.54 mm	72	0.15 in	3.81 mm	5 A	Square	2.54 çm	100 çin	Tin	Header
Amphenol ICC (FCI) 68459-172HLF	Male Pin	All	0.318 "	8.08 mm	Phosphor Bronze	UL94 V-0		Unshrouded	Through Hole Right Angle	2.54 mm	0.1 in	2	4.83 mm	0.19 in	Solder	Black	Push-Pull	0.1 in	2.54 mm	72	0.15 in	3.81 mm		Square	0.76 Ám	30 Áin		Header	Gold or Gold GXT™
