TPS61086 Series

Catalog

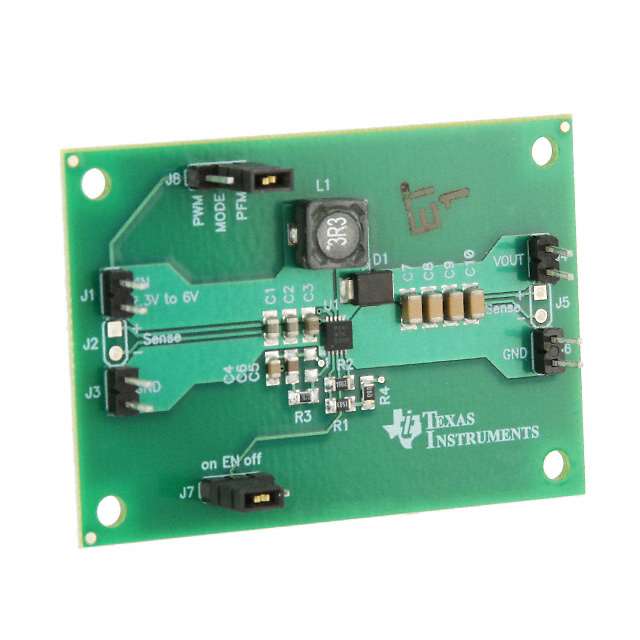

EVAL MODULE FOR TPS61086-526

Part	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Voltage - Output	Contents	Regulator Topology	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Frequency - Switching	Current - Output	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Package / Case	Number of Outputs	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Function	Output Type	Mounting Type	Topology	Supplier Device Package	Output Configuration
Texas Instruments TPS61086EVM-526	Fully Populated	Board(s)	1	1 Non-Isolated Output Non-Isolated	12 V	Board(s)	Boost	DC/DC Step Up	2.3 V	6 V	TPS61086	1.2 MHz	2 A
Texas Instruments TPS61086DRCT												1.2 MHz	2 A	2.3 V	6 V	18.5 V	10-VFDFN Exposed Pad	1	2.8 V	85 C	-40 ¯C	Step-Up	Adjustable	Surface Mount	Boost	10-VSON (3x3)	Positive
Texas Instruments TPS61086DRCR												1.2 MHz	2 A	2.3 V	6 V	18.5 V	10-VFDFN Exposed Pad	1	2.8 V	85 C	-40 ¯C	Step-Up	Adjustable	Surface Mount	Boost	10-VSON (3x3)	Positive
