PFRA.185 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

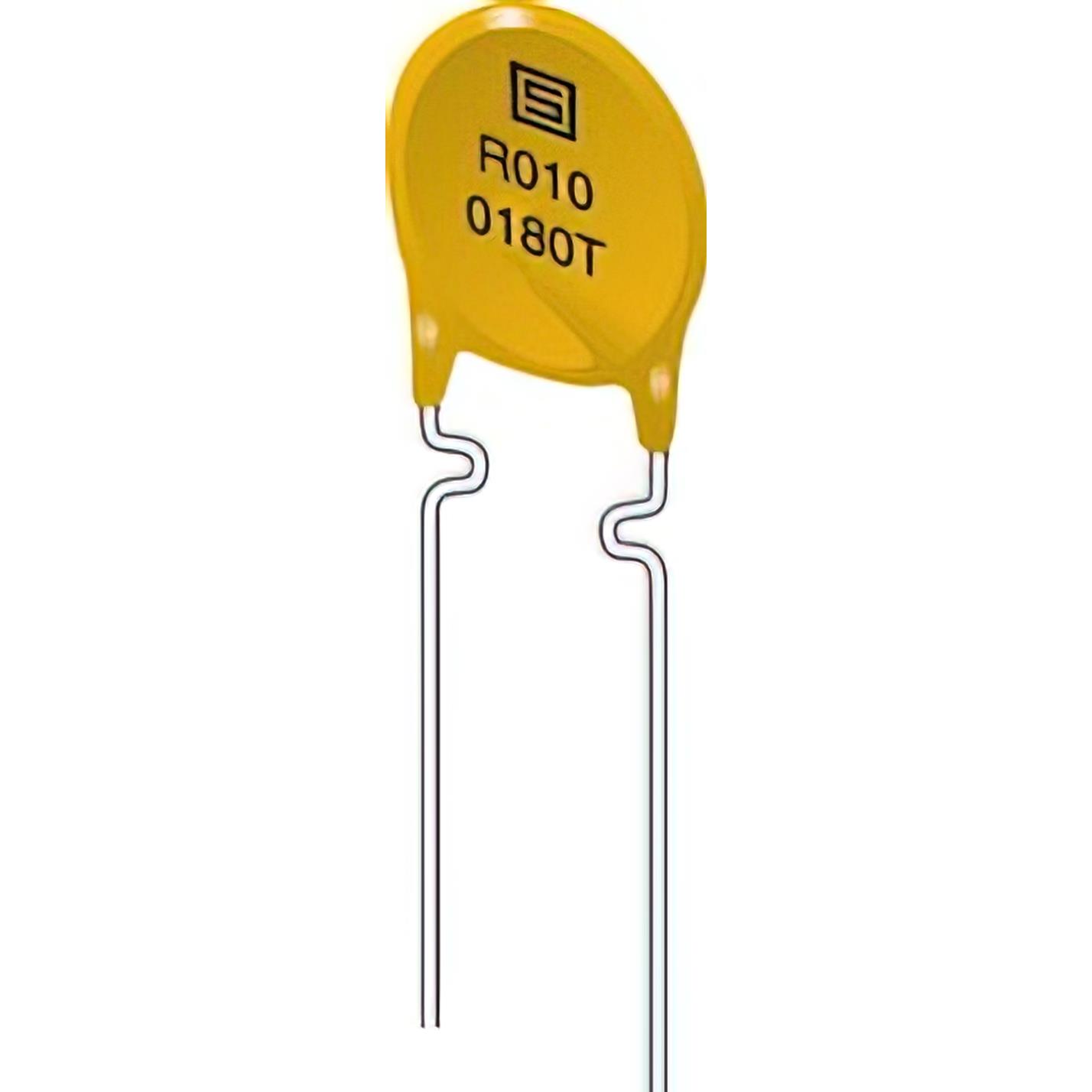

PTC RESET FUSE 30V 1.85A RADIAL
| Part | Approval Agency | Type | Package / Case | Lead Spacing | Lead Spacing | Current - Max [Max] | Voltage - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Trip (It) | Resistance - Post Trip (R1) (Max) [Max] | Resistance - Initial (Ri) (Min) [Min] | Current - Hold (Ih) (Max) | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Time to Trip | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [custom] | Size / Dimension [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | cURus TUV | Polymeric | Disc Radial | 0.201 in | 5.1 mm | 40 A | 30 V | 85 °C | -40 C | 3.7 A | 110 mOhms | 40 mOhms | 1.85 A | Through Hole | 18.4 mm | 0.724 " | 8.7 s | 0.472 " | 12 mm | 3 mm | 0.118 in |
